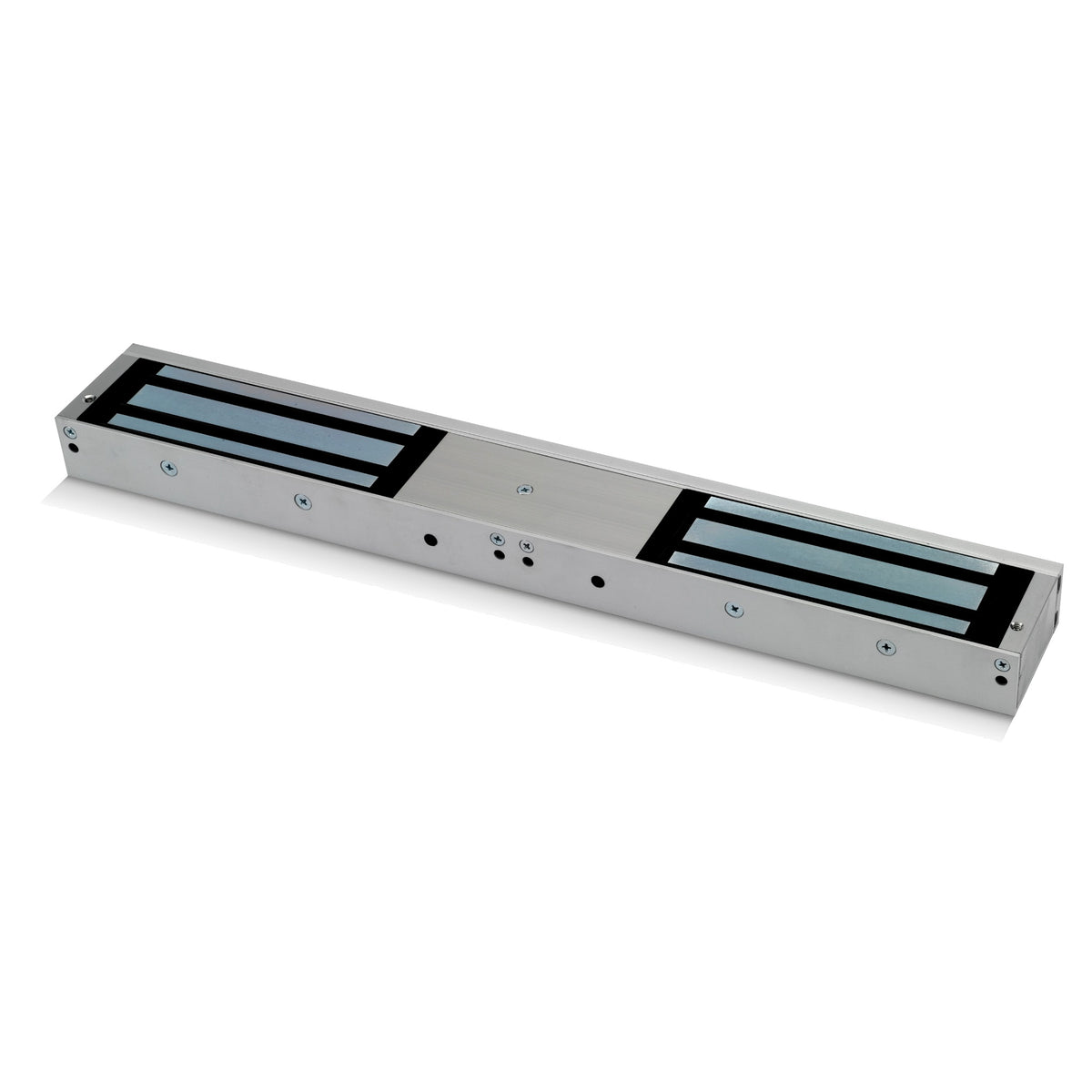

A10060DS Standard Double Magnetic Lock (Maglock) with Door Status Monitoring

The A10060DS Standard Double Magnetic Lock or Maglock is an unmonitored electromagnetic locking solution with a separate door status monitoring output, designed for securing double doors in access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, it provides secure and reliable locking for paired access-controlled doors.

Operating from selectable 12VDC or 24VDC, the A10060DS delivers up to 1200lbs (544kg) of holding force per door leaf, providing 2 × 1200lbs across the double-door installation. Manufactured with a durable aluminium housing and electroless nickel plated steel armature plates, this double magnetic lock is designed for long-term reliability and continuous operation.

The door status output allows compatible systems to monitor whether the doors are physically open or closed. This is separate from lock status monitoring: the A10060DS does not provide an output confirming whether the magnets and armature plates are engaged.

Available Models

• A10060DS – Unmonitored standard double magnetic lock with door status monitoring output.

Key Features

• Standard double magnetic lock design
• Suitable for double-door applications
• Up to 1200lbs (544kg) holding force per door leaf
• Selectable 12VDC or 24VDC operation
• Fail-safe operation – power to lock
• Aluminium lock housing
• Electroless nickel plated steel armature plates
• Door status monitoring output
• Unmonitored locking mechanism
• Suitable for access control applications
• Suitable for continuous operation

Typical Applications

• Double access-controlled doors
• Commercial buildings
• Office entrances
• Schools and educational facilities
• Healthcare premises
• Public buildings
• Restricted access areas
• Reception entrances
• Internal security doors
• Industrial premises
• Double-door installations requiring door open or closed feedback

Compatibility and Accessories

The A10060DS Standard Double Magnetic Lock is designed to integrate with a wide range of access control and door security equipment, making it suitable for both new installations and retrofit projects. Compatible door status inputs are required to use the door status monitoring function.

When building a complete system, please check the lock voltage, current draw, door type, mounting requirements and any emergency release requirements before ordering.

• Access control systems
• Door entry systems
• Intercom systems
• Proximity card readers
• Keypad entry systems
• Press to exit buttons
• Emergency door release units
• Power supplies, relays and timers
• Compatible door monitoring systems

Technical Specification

• Model: A10060DS
• Lock type: Standard double magnetic lock (maglock)
• Operation: Fail-safe – power to lock
• Operating voltage: Selectable 12VDC or 24VDC
• Holding force: Up to 2 × 1200lbs (544kg per door leaf)
• Lock monitoring: Unmonitored
• Door status output: Yes – indicates whether the doors are open or closed
• Housing material: Aluminium
• Armature plates: Electroless nickel plated steel
• Dimensions: 67mm × 532mm × 40mm (H × W × D)

A10060DS Product Information

The A10060DS Standard Double Magnetic Lock combines dependable electromagnetic locking with door status monitoring for double-door access control installations. Providing high holding force and door open or closed feedback, it is ideal for commercial, industrial, educational, healthcare, residential and public sector environments requiring a durable standard double magnetic lock without lock status monitoring.

Frequently Asked Questions

What is a double magnetic lock?

A double magnetic lock, also known as a double maglock, is an electromagnetic locking device designed to secure both leaves of a double-door installation. It provides electromagnetic locking across both doors from a single double lock housing.

What does DS mean?

DS means door status monitoring. The A10060DS includes a door status output that allows compatible equipment to monitor whether the doors are physically open or closed.

Does the A10060DS provide lock status monitoring?

No. The A10060DS is an unmonitored magnetic lock. Its door status output indicates whether the doors are open or closed, rather than confirming engagement between the magnets and armature plates.

What is the difference between the A10060 and A10060DS?

The A10060DS includes a door status output, allowing compatible systems to monitor whether the doors are open or closed. The A10060 provides the same locking performance without this output. Neither model provides lock status monitoring.

Can the A10060DS be used with access control systems?

Yes. The A10060DS can be used with compatible access control systems, card readers, keypads, intercom systems, door entry systems, press to exit buttons and emergency door release units. Compatible door status inputs are required to receive door open or closed feedback.

What is the holding force of the A10060DS?

The A10060DS provides up to 1200lbs (544kg) of holding force per door leaf, giving 2 × 1200lbs across the double-door installation.

Is the A10060DS fail-safe?

Yes. The A10060DS requires power to remain locked. When power to the lock is interrupted, it releases. Emergency release equipment and access controls must be correctly connected to interrupt the lock supply when required.

What voltage does the A10060DS operate on?

The A10060DS supports selectable 12VDC or 24VDC operation, making it suitable for a wide range of access control and door security systems.

Can I use the lock without connecting the door status output?

Yes. The lock can operate without the door status output connected, but the connected system will not receive door open or closed feedback from it.

Is the A10060DS suitable for retrofit installations?

Yes. The A10060DS can be used for both new installations and retrofit projects, subject to a suitable door construction, mounting arrangement and power supply.
