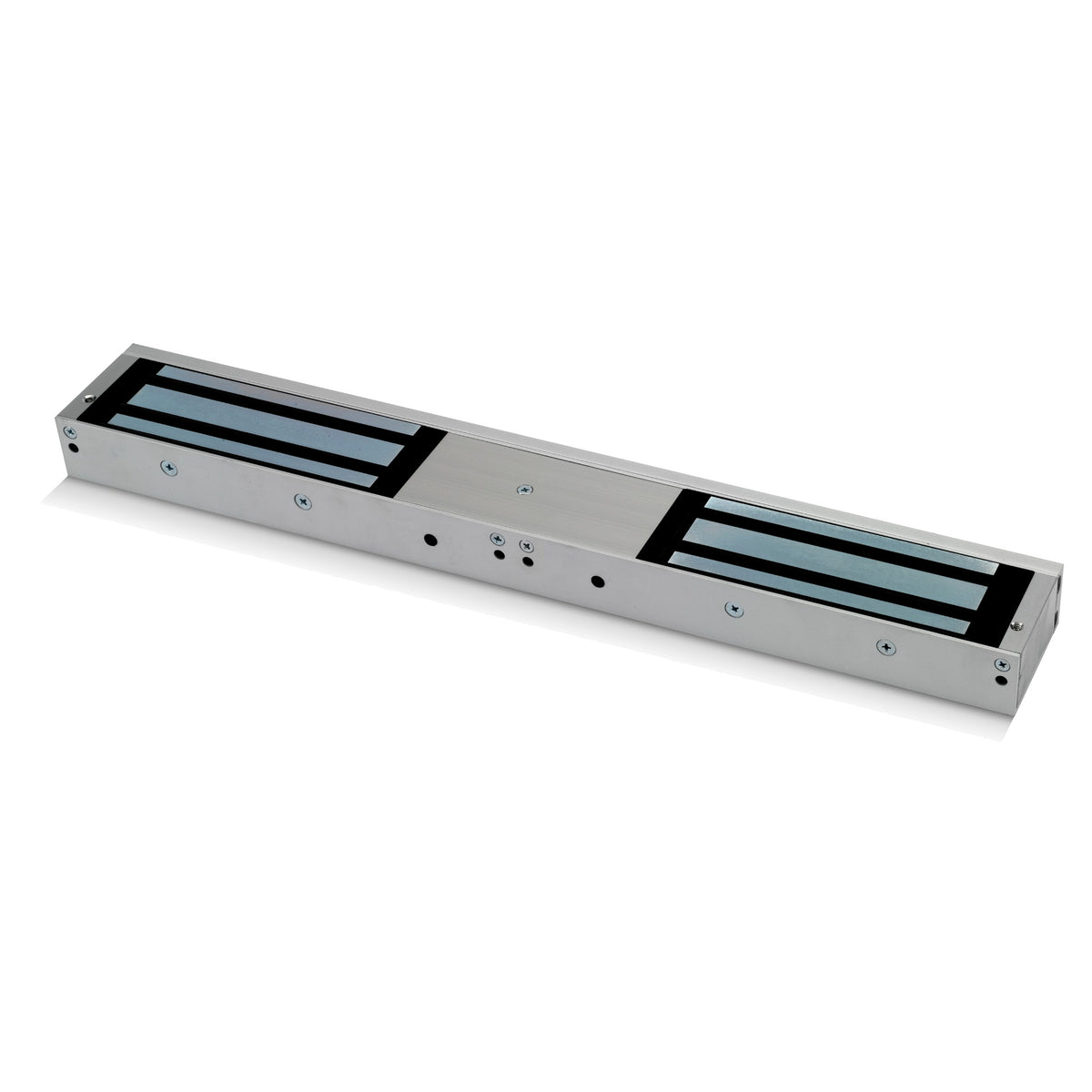

A10060 Standard Double Magnetic Lock (Maglock)

The A10060 Standard Double Magnetic Lock or Maglock is an unmonitored electromagnetic locking solution designed for securing double doors in access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, it provides secure and reliable locking for paired access-controlled doors.

Operating from selectable 12VDC or 24VDC, the A10060 delivers up to 1200lbs (544kg) of holding force per door leaf, providing 2 × 1200lbs across the double-door installation. Manufactured with a durable aluminium housing and electroless nickel plated steel armature plates, this double magnetic lock is designed for long-term reliability and continuous operation.

The A10060 does not include lock status monitoring or a door status output.

Available Models

• A10060 – Unmonitored standard double magnetic lock without door status output.

Key Features

• Standard double magnetic lock design
• Suitable for double-door applications
• Up to 1200lbs (544kg) holding force per door leaf
• Selectable 12VDC or 24VDC operation
• Fail-safe operation – power to lock
• Aluminium lock housing
• Electroless nickel plated steel armature plates
• Unmonitored design
• Suitable for access control applications
• Reliable electromagnetic locking
• Suitable for continuous operation

Typical Applications

• Double access-controlled doors
• Commercial buildings
• Office entrances
• Schools and educational facilities
• Healthcare premises
• Public buildings
• Restricted access areas
• Reception entrances
• Internal security doors
• Industrial premises

Compatibility and Accessories

The A10060 Standard Double Magnetic Lock is designed to integrate with a wide range of access control and door security equipment, making it suitable for both new installations and retrofit projects.

When building a complete system, please check the lock voltage, current draw, door type, mounting requirements and any emergency release requirements before ordering.

• Access control systems
• Door entry systems
• Intercom systems
• Proximity card readers
• Keypad entry systems
• Press to exit buttons
• Emergency door release units
• Power supplies, relays and timers

Technical Specification

• Model: A10060
• Lock type: Standard double magnetic lock (maglock)
• Operation: Fail-safe – power to lock
• Operating voltage: Selectable 12VDC or 24VDC
• Holding force: Up to 2 × 1200lbs (544kg per door leaf)
• Lock monitoring: Unmonitored
• Door status output: No
• Housing material: Aluminium
• Armature plates: Electroless nickel plated steel
• Dimensions: 67mm × 532mm × 40mm (H × W × D)

A10060 Product Information

The A10060 Standard Double Magnetic Lock provides a secure and reliable locking solution for access control installations requiring high holding force and dependable security for double doors, without lock status or door status monitoring. It is ideal for commercial, industrial, educational, healthcare, residential and public sector environments where a durable standard double magnetic lock or double-door maglock is required.

Frequently Asked Questions

What is a double magnetic lock?

A double magnetic lock, also known as a double maglock, is an electromagnetic locking device designed to secure both leaves of a double-door installation. It provides electromagnetic locking across both doors from a single double lock housing.

What does unmonitored mean?

The A10060 does not provide an output confirming whether the magnets and armature plates are engaged. It also has no separate door status output.

What is the difference between the A10060 and A10060DS?

The A10060DS includes a door status output, allowing compatible systems to monitor whether the doors are open or closed. The A10060 provides the same locking performance without this output. Neither model provides lock status monitoring.

Can the A10060 be used with access control systems?

Yes. The A10060 can be used with compatible access control systems, card readers, keypads, intercom systems, door entry systems, press to exit buttons and emergency door release units.

What is the holding force of the A10060?

The A10060 provides up to 1200lbs (544kg) of holding force per door leaf, giving 2 × 1200lbs across the double-door installation.

Is the A10060 fail-safe?

Yes. The A10060 requires power to remain locked. When power to the lock is interrupted, it releases. Emergency release equipment and access controls must be correctly connected to interrupt the lock supply when required.

What voltage does the A10060 operate on?

The A10060 supports selectable 12VDC or 24VDC operation, making it suitable for a wide range of access control and door security systems.

Is the A10060 suitable for retrofit installations?

Yes. The A10060 can be used for both new installations and retrofit projects, subject to a suitable door construction, mounting arrangement and power supply.
