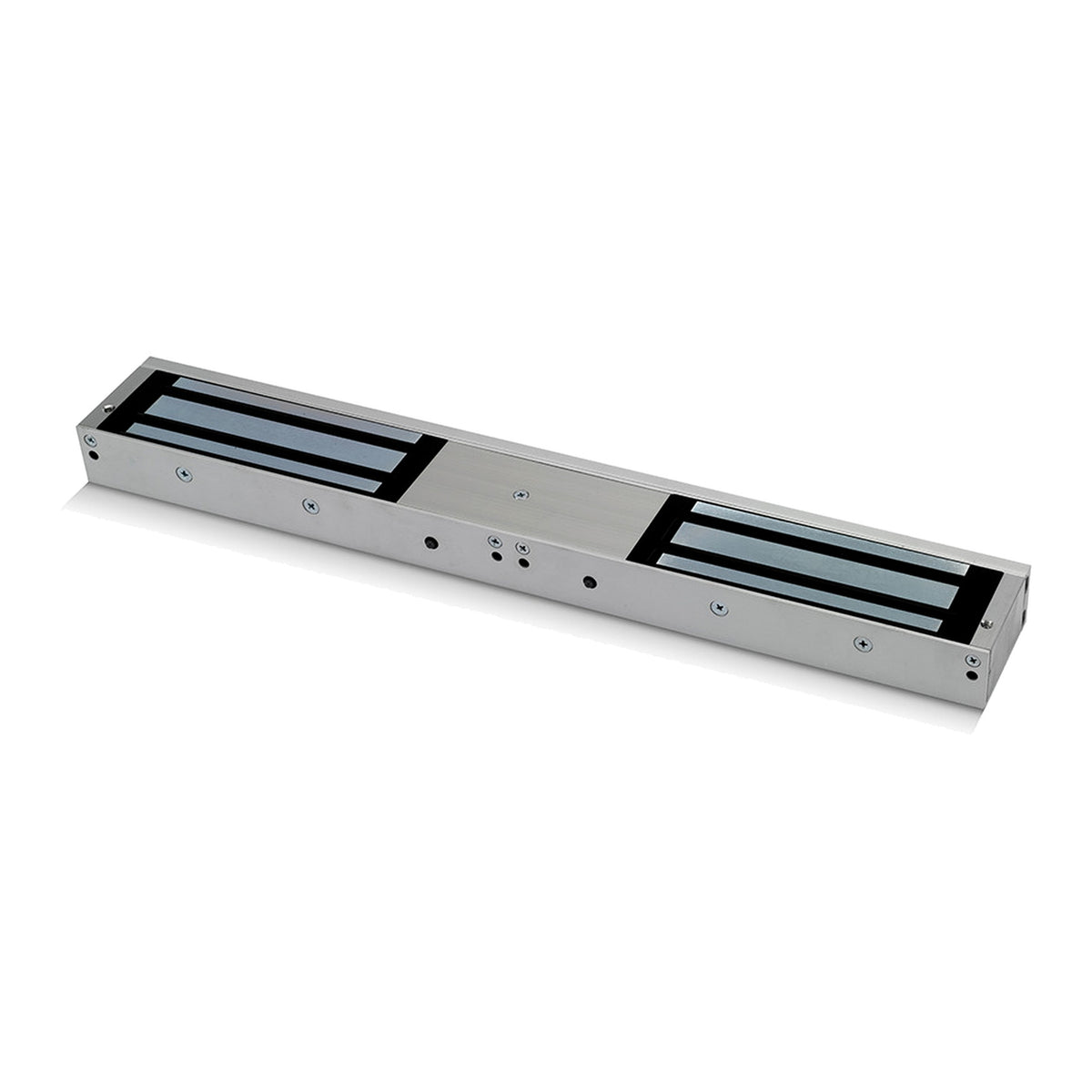

A10040 Monitored Standard Double Magnetic Lock (Maglock)

The A10040 Monitored Standard Double Magnetic Lock or Maglock is an electromagnetic locking solution designed for securing double doors in access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, it provides secure and reliable locking for paired access-controlled doors.

Operating from selectable 12VDC or 24VDC, the A10040 delivers up to 1200lbs (544kg) of holding force per door leaf, providing 2 × 1200lbs across the double-door installation. Manufactured with a durable aluminium housing and electroless nickel plated steel armature plates, this double magnetic lock is designed for long-term reliability and consistent performance.

The A10040 includes lock status monitoring for connection to compatible access control or monitoring systems, indicating whether the magnets and armature plates are engaged. It also features LED lock status indication. This model does not include a separate door status output.

Available Models

• A10040 – Monitored standard double magnetic lock with LED lock status indication, without door status output.

Key Features

• Standard double magnetic lock design
• Suitable for double-door applications
• Up to 1200lbs (544kg) holding force per door leaf
• Selectable 12VDC or 24VDC operation
• Fail-safe operation – power to lock
• Lock status monitoring output
• LED lock status indication
• Aluminium lock housing
• Electroless nickel plated steel armature plates
• Suitable for access control applications
• Reliable electromagnetic locking

Typical Applications

• Double access-controlled doors
• Commercial buildings
• Office entrances
• Schools and educational facilities
• Healthcare premises
• Public buildings
• Restricted access areas
• Reception entrances
• Internal security doors
• Industrial premises

Compatibility and Accessories

The A10040 Monitored Standard Double Magnetic Lock is designed to integrate with a wide range of access control and door security equipment, making it suitable for both new installations and retrofit projects. Compatible monitoring inputs are required to use the lock status monitoring function.

When building a complete system, please check the lock voltage, current draw, door type, mounting requirements and any emergency release requirements before ordering.

• Access control systems
• Door entry systems
• Intercom systems
• Proximity card readers
• Keypad entry systems
• Press to exit buttons
• Emergency door release units
• Power supplies, relays and timers
• Compatible building management systems
• Compatible fire alarm interface systems

Technical Specification

• Model: A10040
• Lock type: Monitored standard double magnetic lock (maglock)
• Operation: Fail-safe – power to lock
• Operating voltage: Selectable 12VDC or 24VDC
• Holding force: Up to 2 × 1200lbs (544kg per door leaf)
• Lock monitoring: Monitored – lock status output
• Door status output: No
• Lock status LED: Green unlocked / red locked
• Housing material: Aluminium
• Armature plates: Electroless nickel plated steel
• Dimensions: 67mm × 532mm × 40mm (H × W × D)

A10040 Product Information

The A10040 Monitored Standard Double Magnetic Lock provides a secure and reliable locking solution for access control installations requiring high holding force and dependable security for double doors. With lock status monitoring and LED lock status indication, it is ideal for commercial, industrial, educational, healthcare, residential and public sector environments where a durable monitored double magnetic lock or double-door maglock is required.

Frequently Asked Questions

What is a monitored standard double magnetic lock?

A monitored standard double magnetic lock is an electromagnetic locking device designed to secure double doors. It includes lock status monitoring for connection to compatible access control or monitoring systems.

What is the holding force of the A10040?

The A10040 provides up to 1200lbs (544kg) of holding force per door leaf, giving 2 × 1200lbs across the double-door installation.

Can the A10040 be used on double doors?

Yes. The A10040 is specifically designed for double-door installations, providing electromagnetic locking for paired door leaves alongside lock status monitoring and LED indication.

What does lock monitoring mean?

Lock monitoring provides an output indicating whether the magnets and armature plates are engaged. This can be connected to a compatible access control or monitoring system. It is separate from door status monitoring, which indicates whether a door is open or closed.

Does the A10040 include door status monitoring?

No. The A10040 includes lock status monitoring but does not provide a separate door status output.

What does fail-safe operation mean?

Fail-safe operation means the magnetic lock requires power to remain locked. When power to the lock is interrupted, it releases. Emergency release equipment and access controls must be correctly connected to interrupt the lock supply when required.

What is the difference between the A10040 and A10040DS?

Both models include lock status monitoring and LED lock status indication. The A10040DS additionally provides a separate door status output, allowing compatible systems to monitor whether the doors are physically open or closed.

What does the LED indication show?

The A10040 includes LED lock status indication, showing green when unlocked and red when locked. This indicates lock status rather than door position.

Can the A10040 be used with access control systems?

Yes. The A10040 is designed for integration with compatible access control systems, door entry systems, intercoms, emergency door release units, keypads, card readers and press to exit buttons. Compatible monitoring inputs are required to receive lock status feedback.

Why choose a standard double magnetic lock?

A standard double magnetic lock provides higher holding force per door leaf than a double mini magnetic lock. The A10040 combines this holding force with fail-safe operation, lock status monitoring and LED indication for double-door access control installations.
