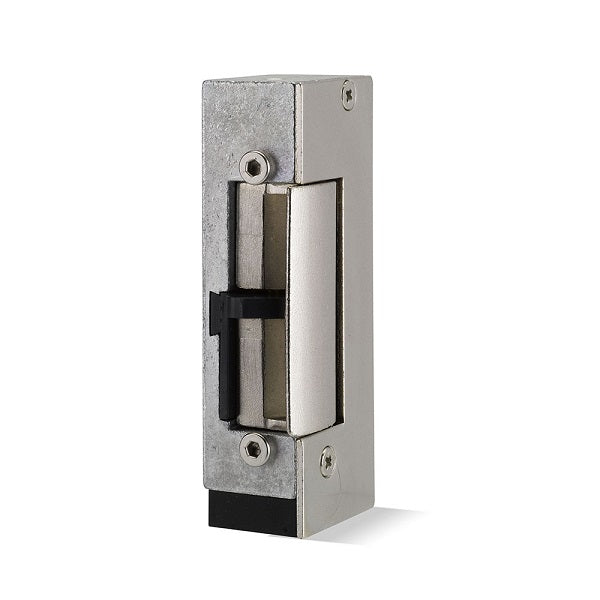

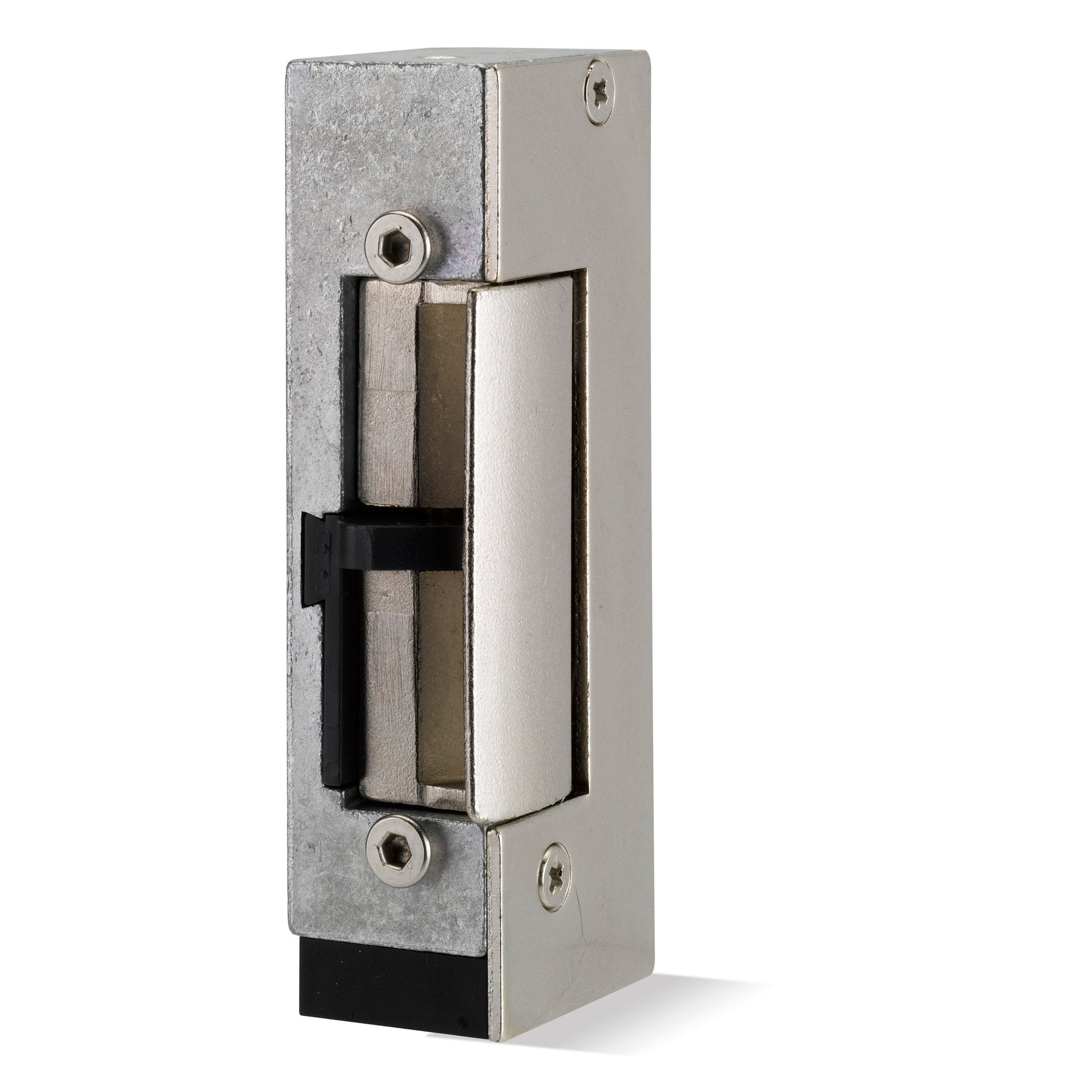

1560 / 1561 Electric Strike Lock (Rim Strike)

The 1560 and 1561 Electric Strike Locks (Electric Strikes / Rim Strikes) are versatile electric locking solutions designed for use with access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide secure and reliable remote door release functionality for a wide range of door types.

Designed with a symmetrical body and fixed jaw mechanism, the 1560 and 1561 offer reliable operation and straightforward installation. Their compact design makes them particularly suitable for UPVC doors, timber doors, and other access-controlled entrances where dependable electric locking is required.

Available in both fail-secure and fail-safe configurations, and supporting multiple operating voltages, these electric strikes integrate easily with access control panels, keypads, proximity readers, intercom systems, and door release devices.

Available Models

• 1560 - Fail Secure Electric Strike Lock (Power to unlock 12VDC)
• 1561 - Fail Safe Electric Strike Lock (Power to lock 12VDC)

Key Features

• Suitable for Access Control Systems
• Symmetrical Design

• Suitable for UPVC Door Frames
• Available in Fail Secure or Fail Safe Versions
• 12VDC Operation
• Compact Electric Strike Design
• Reliable Remote Door Release
• Suitable for New Installations and Retrofits
• Durable Construction

Typical Applications

• Access Control Doors
• UPVC Door Installations
• Commercial Entrances
• Office Buildings
• Residential Developments
• Schools and Educational Facilities
• Healthcare Premises
• Intercom Controlled Doors
• Door Entry Systems
• Internal Security Doors

Compatibility

The 1560 and 1561 Electric Strike Locks are designed to integrate with a wide range of access control and door security equipment, making them suitable for both new installations and system upgrades.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Keypad Entry Systems
• Proximity Card Readers
• Press to Exit Buttons
• Power Supplies, Relays and Timers
• Mortice Locks, Latches and Lock Cases

Technical Specification

• Lock Type: Electric Strike Lock (Rim Strike)
• Operation Modes: Fail Secure (1560 version) / Fail Safe (1561 version)
• Design: Symmetrical
• Jaw Type: Fixed
• Suitable For: UPVC, Timber, Aluminium and Access Control Doors
• 1560 Operating Voltage: 12VDC
• 1561 Operating Voltage: 12VDC

1560 Electrical Data

• 12VDC ~ 0.72A


1561 Electrical Data

• 12VDC ~ 0.29A


1560 & 1561 Product Information

The 1560 and 1561 Electric Strike Locks provide a reliable and efficient door locking solution for access control installations requiring secure remote door release. Suitable for UPVC, timber, aluminium, and commercial door applications, they are an ideal choice where a durable electric strike, electric release lock or rim strike is required.

Frequently Asked Questions

What Is an Electric Strike Lock

An electric strike lock is an electrically operated locking device that allows a door to be released remotely when connected to an access control system, intercom, keypad, or door entry system. The strike works with an existing latch or lock to provide secure access control.

What Is the Difference Between the 1560 and 1561?

The 1560 is a fail secure electric strike, meaning power is required to unlock the door. The 1561 is a fail safe electric strike, meaning power is required to keep the door locked and it will unlock if power is removed.

What Does Fail Secure Mean?

Fail secure means the electric strike remains locked if power is lost. This type of operation is commonly used where maintaining security during a power failure is important.

What Does Fail Safe Mean?

Fail safe means the electric strike unlocks when power is removed. This type of operation is commonly used on doors where safe emergency egress is required during a power failure or emergency condition.

Are the 1560 and 1561 Suitable for UPVC Doors?

Yes. The compact symmetrical design makes both models suitable for installation on many UPVC door frames, as well as timber and aluminium door applications.

Can These Electric Strikes Be Used with Access Control Systems?

Yes. The 1560 and 1561 are designed for use with access control systems, door entry systems, intercoms, keypad entry systems, proximity readers, and other electronic door security equipment.

What Voltage Do the 1560 and 1561 Operate On?

Both the 1560 and 1561 operate on 12VDC.

What Is a Rim Strike?

A rim strike is an electric strike designed to work with rim-mounted locks and latches. It allows remote door release while retaining the existing mechanical locking hardware.

Are the 1560 and 1561 Suitable for Retrofit Installations?

Yes. Their compact design and compatibility with a wide range of locking devices make them suitable for both new installations and retrofit access control projects.
