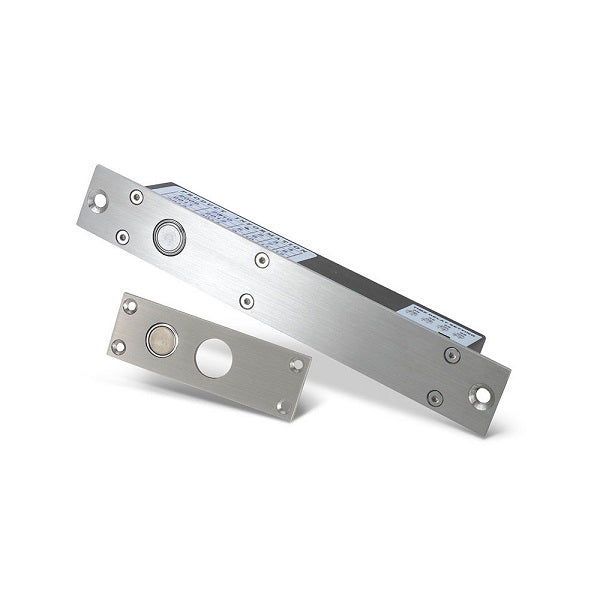

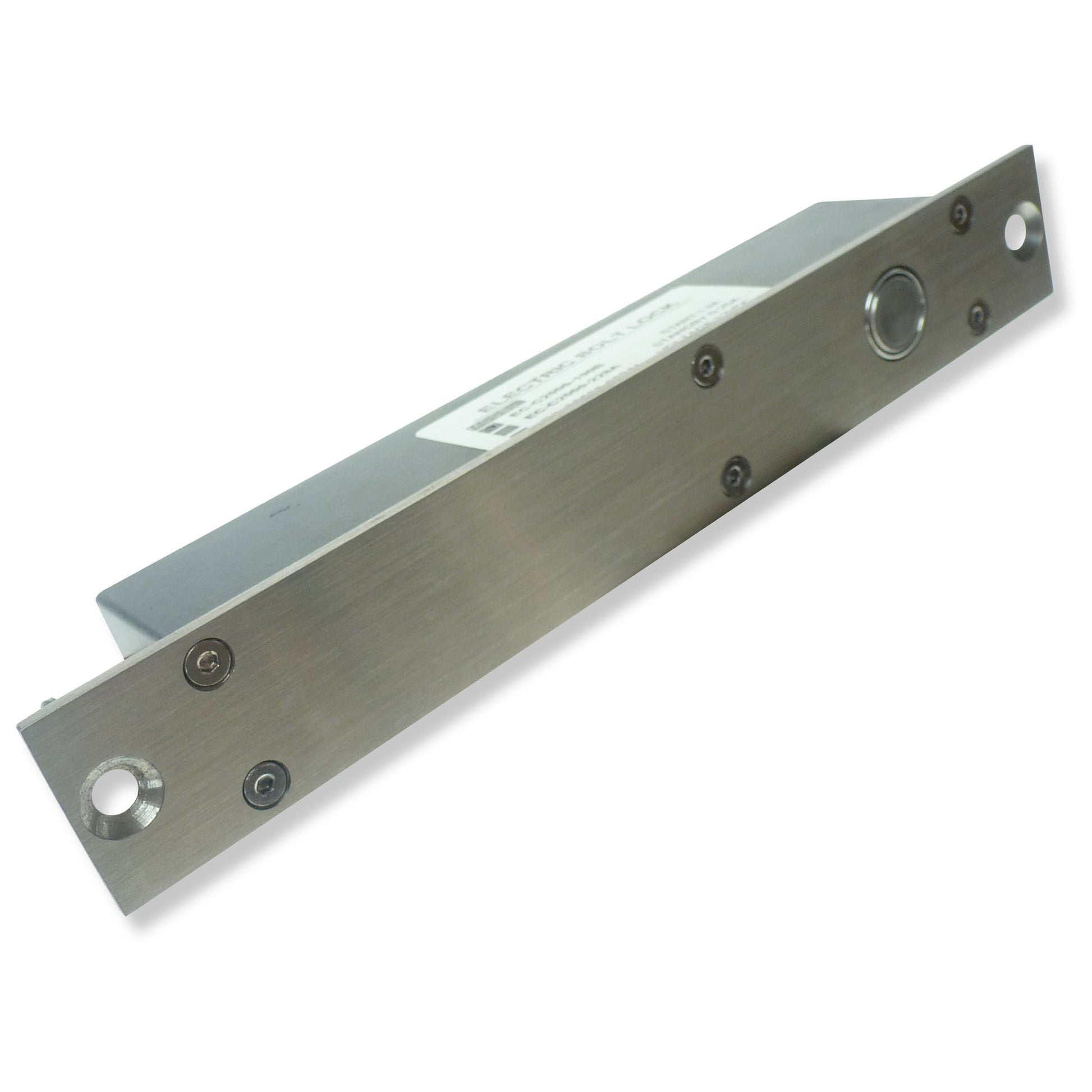

10423 Solenoid Electric Bolt Lock

10423 Solenoid Electric Bolt Lock

The 10423 Solenoid Electric Bolt Lock is a high-security electromechanical locking solution, also commonly referred to as a drop bolt lock, designed for use with access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, and public sector environments, it provides secure locking for doors requiring a strong and reliable access control solution.

Featuring a fail-safe operating mode, the 10423 delivers dependable locking performance while ensuring safe egress during power loss conditions. Its intelligent bolt monitoring system only activates when the door and lock are correctly aligned, helping to prevent damage and improve long-term reliability.

Operating from a 12VDC power supply, the 10423 integrates easily with access control panels, keypads, proximity readers, intercom systems, and door automation equipment. Adjustable auto re-locking delay settings of 0, 3, 6, or 9 seconds provide flexibility for a wide range of installation requirements.

Available Models

10423 – Fail Safe Solenoid Electric Bolt Lock

Key Features

• Fail Safe Operation (Power to Lock)
• High Security Solenoid Bolt Lock

• 12VDC Operating Voltage
• Adjustable Auto Re-Locking Delay
• 0, 3, 6 or 9 Second Timer Settings
• Intelligent Door Alignment Detection
• Suitable for Single and Double Doors
• Low Profile Installation Design
• Designed for Access Control Applications

Typical Applications

• Access Control Doors
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Premises
• Industrial Buildings
• Restricted Access Areas
• Glass Door Systems
• Timber Doors
• Metal Doors
• Double Door Installations

Compatibility

The 10423 Solenoid Electric Bolt Lock is designed to integrate with a wide range of access control and door security equipment, making it suitable for both new installations and retrofit projects.

• Compatible with Access Control Systems
• Suitable for Door Entry Systems
• Works with Intercom Systems
• Compatible with Proximity Card Readers
• Suitable for Keypad Entry Systems
• Works with Press to Exit Buttons
• Suitable for use with Power Supplies, Relays and Timers
• Compatible with Emergency Door Release Units

Technical Specification

• Operating Voltage: 12VDC
• Lock Type: Solenoid Electric Bolt Lock
• Operation: Fail Safe (Power to Lock)

• Auto Re-Locking Delay: 0, 3, 6 or 9 Seconds
• Lock Dimensions: 210mm x 25mm x 41mm (H x W x D)
• Keep Dimensions: 100mm x 25mm x 10mm (H x W x D)

10423 Solenoid Bolt Lock Product Datasheet

The 10423 Solenoid Electric Bolt Lock provides a secure and reliable locking solution for access control installations requiring high holding force and dependable door security. Suitable for a wide range of commercial and industrial applications, it is an ideal choice where a durable electric bolt lock, drop bolt lock, or solenoid locking solution is required.
