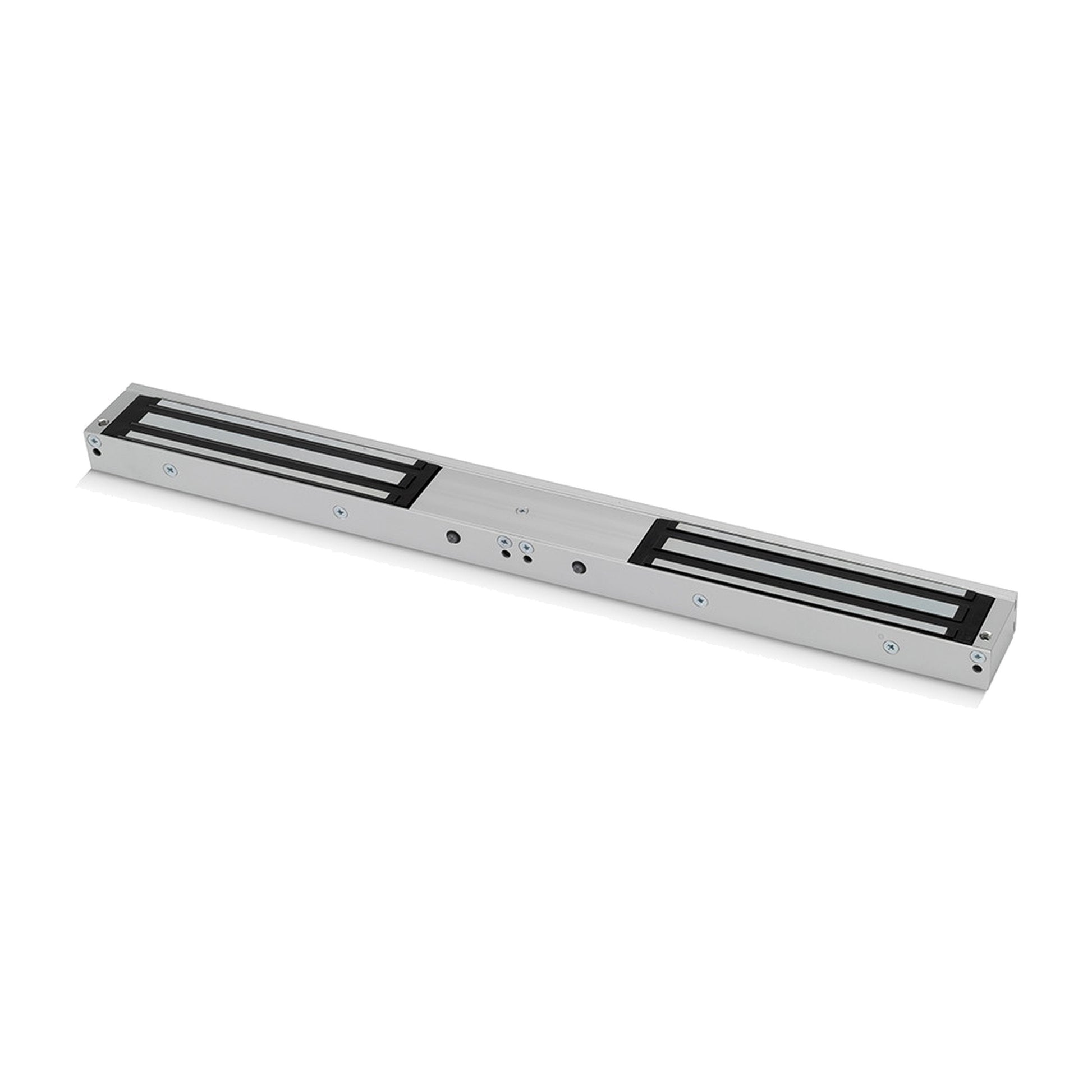

U10005 / U10005DSU / FR-U10005 / FR-U10005DSU Monitored Double Mini Magnetic Lock (Maglock)

The U10005 Series Monitored Double Mini Magnetic Locks or Maglocks are compact electromagnetic locking solutions designed for securing double doors in access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide secure and reliable locking for paired access-controlled doors.

Operating from selectable 12VDC or 24VDC power supplies, the U10005 Series delivers up to 2 x 600lbs (272kg) of holding force, providing secure locking across both door leaves. Manufactured with a durable aluminium housing and electroless nickel plated armature plates, these magnetic locks are designed to provide long-term reliability and consistent locking performance.

All models include lock status monitoring with an output for connection to compatible access control systems. Each lock also features LED lock status indication, showing green when unlocked and red when locked. The U10005DSU and FR-U10005DSU versions additionally include a door status output. The FR-U10005 and FR-U10005DSU versions have been fire tested to BS EN 1634-1 and are suitable for installation on FD30 and FD60 fire doors.

Available Models

• U10005 – Monitored Double Mini Magnetic Lock
• U10005DSU – Monitored Double Mini Magnetic Lock with Door Status Output
• FR-U10005 – Fire Rated Monitored Double Mini Magnetic Lock
• FR-U10005DSU – Fire Rated Monitored Double Mini Magnetic Lock with Door Status Output

Key Features

• Double Mini Magnetic Lock Design
• Suitable for Double Door Applications
• Up to 2 x 600lbs (272kg) Holding Force
• Selectable 12VDC or 24VDC Operation
• Monitored Lock Output
• LED Lock Status Indication
• Door Status Output on U10005DSU & FR-U10005DSU Models
• Fail Safe Operation (Power to Lock)
• Aluminium Lock Housing
• Electroless Nickel Plated Armature Plates

• Fire Rated Versions Available
• Tested to BS EN 1634-1
• Suitable for FD30 and FD60 Fire Doors
• Suitable for Access Control Applications

Typical Applications

• Double Access Control Doors
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Premises
• Public Buildings
• Fire Door Installations
• Staff Access Areas
• Restricted Access Areas
• Double Door Security Entrances

Compatibility

The U10005 Series Monitored Double Mini Magnetic Locks are designed to integrate with a wide range of access control and door security equipment, making them suitable for both new installations and retrofit projects.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Emergency Door Release Units
• Power Supplies
• Relays and Timers
• Door Monitoring Systems

Technical Specification

• Lock Type: Double Mini Magnetic Lock (Maglock)
• Operation: Fail Safe (Power to Lock)
• Operating Voltage: 12VDC or 24VDC Selectable
• Holding Force: Up to 2 x 600lbs (272kg)
• Lock Monitoring: Monitored (All Models)
• Door Status Output: U10005DSU & FR-U10005DSU Only
• Lock Status LED: All Models (Green Unlocked / Red Locked)
• Housing Material: Aluminium
• Armature Plate: Electroless Nickel Plated Steel
• Fire Rating: BS EN1634-1 (FR Models)
• Suitable Fire Doors: FD30 & FD60 (FR Models)
• Dimensions: 42mm x 500mm x 26mm (H x W x D)

U10005 Product Information

FR-U10005 Product Information

The U10005 Series Monitored Double Mini Magnetic Locks provide a secure and reliable locking solution for access control installations requiring dependable security for double door applications. Available in standard, door status output, and fire-rated versions, they are ideal for commercial, public sector, and residential environments where a durable double magnetic lock or double door maglock is required.

Frequently Asked Questions

What is a monitored double mini magnetic lock?

A monitored double mini magnetic lock provides a monitored output for connection to compatible access control systems. All U10005 Series models also feature LED lock status indication, showing green when unlocked and red when locked. Selected DS models additionally include a door status output.

What is the difference between the U10005 and U10005DSU?

The U10005 and U10005DSU are both monitored double mini magnetic locks with LED lock status indication. The U10005DSU additionally includes a door status output for connection to compatible access control systems.

Can the U10005 series be used on fire doors?

Yes. The FR-U10005 and FR-U10005DSU models have been fire tested to BS EN 1634-1 and are suitable for installation on FD30 and FD60 fire-rated doors when installed in accordance with the relevant fire door and access control requirements.

What access control systems are compatible with the U10005 series?

The U10005 Series is compatible with most access control systems, door entry systems, intercoms, keypads, proximity card readers, press to exit buttons, emergency door release units, and related access control equipment.

What does fail-safe operation mean?

Fail-safe operation means the magnetic lock remains locked while power is applied and automatically releases when power is removed. This ensures safe emergency egress during power failures or emergency situations.

Are the U10005 magnetic locks suitable for double doors?

Yes. The U10005 Series has been specifically designed for double-door applications and provides up to 2 x 600lbs (272kg) holding force, delivering secure locking across both door leaves.
