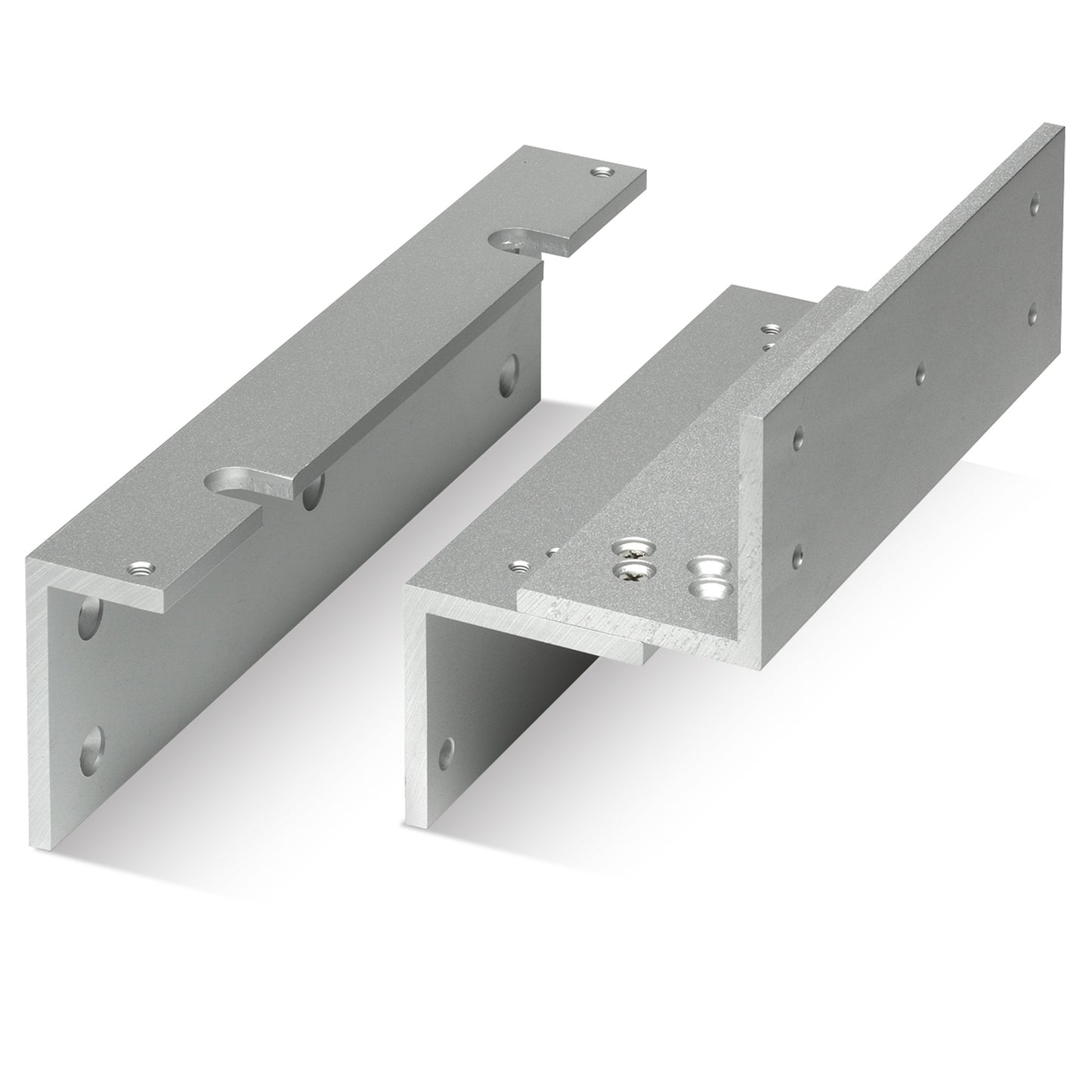

U300ZL Z & L Bracket for Mini Magnetic Locks

The U300ZL Z & L Bracket is designed for use with compatible 600lbs (272kg) mini magnetic locks where a Z and L bracket set is required. It provides a practical mounting solution for access control and door security installations where the standard magnetic lock fixing method is not suitable.

Designed for mini maglock installations, the U300ZL helps position both the magnetic lock and armature plate correctly, making it useful for inward opening doors, frame-mounted installations, and retrofit applications where additional mounting support is required.

Suitable for commercial, residential, educational, healthcare, office and light industrial environments, the U300ZL is commonly used as part of a complete access control system with compatible magnetic locks, power supplies, exit buttons, emergency door release units, keypads and proximity readers.

Available Model

• U300ZL – Adjustable Z & L Bracket for compatible mini magnetic locks

Key Features

• Z & L bracket set for mini magnetic locks

• Designed for compatible 600lbs (272kg) maglock installations

• Provides mounting support for the magnet and armature plate

• Useful where standard fixing is not suitable

• Commonly used on inward opening door applications

• Suitable for new installations and retrofit projects

• Helps provide a secure and practical mounting arrangement

• Suitable for access control and door security systems

Typical Applications

• Mini magnetic lock installations

• Access control systems

• Door entry systems

• Commercial buildings

• Office doors

• Residential developments

• Educational facilities

• Healthcare buildings

• Restricted access areas

• Retrofit maglock installations
• Inward opening door applications

Compatibility and Accessories

The U300ZL Z & L Bracket is designed for use with compatible 600lbs (272kg) mini magnetic locks and related access control equipment.

Compatible Mini Magnetic Locks

• A10000 Series
• A10001 Series
• A10002 Series
• A10004 Series
• A10005 Series
• U10000 Series
• U10001 Series
• U10002 Series
• U10004 Series
• U10005 Series

Please check the maglock model, armature plate size, fixing method, door type, opening direction and installation requirements before ordering. If you are unsure whether this mounting plate is suitable for your lock, please contact us with the lock model and door details before purchase.

Compatible With

• Magnetic Locks Accessories
• Mini Magnetic Locks

• Access Control Systems

• Door Entry Systems

• Power Supplies, Relays and Timers

• Press to Exit / Request to Exit Buttons

• Emergency Door Release Units

Technical Specification

• Product type: Adjustable L bracket
• Model: U300ZL
• Material: Anodised Aluminium
• Application: Magnetic lock mounting bracket
• Compatibility: Suitable for compatible 600lbs (272kg) mini magnetic locks

• Installation type: Frame-mounted magnetic lock accessory
• Use: Access control and magnetic lock installations
• Door application: Commonly used where Z & L mounting is required

Mini Magnetic Lock Accessories Product Information

Please check compatibility with your magnetic lock, door and frame before ordering. The U300ZL Z & L Bracket should be installed in accordance with the magnetic lock manufacturer’s installation instructions and the requirements of the door application.

The U300ZL provides a practical mounting solution for compatible mini magnetic lock installations where a Z and L bracket arrangement is required.

Frequently Asked Questions

What is the U300ZL Z & L Bracket used for?

The U300ZL Z & L Bracket is used to mount compatible 600lbs (272kg) mini magnetic locks where a Z and L bracket arrangement is required.

Which locks is the U300ZL compatible with?

The U300ZL is designed for use with compatible 600lbs (272kg) mini magnetic locks, including the A10000, A10001, A10002, A10004, A10005, U10000, U10001, U10002, U10004 and U10005 Series.

Is the U300ZL suitable for standard 1200lbs magnetic locks?

No. The U300ZL is intended for compatible 600lbs (272kg) mini magnetic locks. Standard 1200lbs (544kg) magnetic locks normally require larger Z & L brackets.

When would I need a Z & L bracket?

A Z & L bracket is commonly used where the magnetic lock and armature plate cannot be mounted using the standard fixing method, often due to the door type, frame profile or opening direction.

Can the U300ZL be used on inward opening doors?

Yes. Z & L brackets are commonly used on inward opening door applications where additional bracketry is needed to correctly position the magnetic lock and armature plate.

Can the U300ZL be used with access control systems?

Yes. The U300ZL is a magnetic lock accessory and can be used as part of an access control installation with compatible mini magnetic locks, power supplies, exit buttons, emergency door release units, keypads and proximity readers.

What should I check before ordering?

Please check the maglock model, bracket size, fixing method, door type, frame profile, opening direction and installation requirements before ordering.
