A10002 / A10002DS / FR-A10002 / FR-A10002DS Monitored Mini Magnetic Lock (Maglock)

The A10002 Series Mini Magnetic Locks or Maglocks are compact electromagnetic locking solutions designed for use with access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide secure and reliable door locking for access-controlled doors.

Operating from selectable 12VDC or 24VDC, the A10002 Series delivers up to 600lbs (272kg) of holding force while maintaining a compact footprint. Manufactured with a durable aluminium housing, these monitored magnetic locks are designed to provide long-term reliability and consistent locking performance in demanding environments.

All models include lock status monitoring with an output for connection to compatible access control systems. Each lock also features LED lock status indication, showing green when unlocked and red when locked. The A10002DS and FR-A10002DS versions additionally include a door status output.

Available Models

• A10002 – Monitored Mini Magnetic Lock

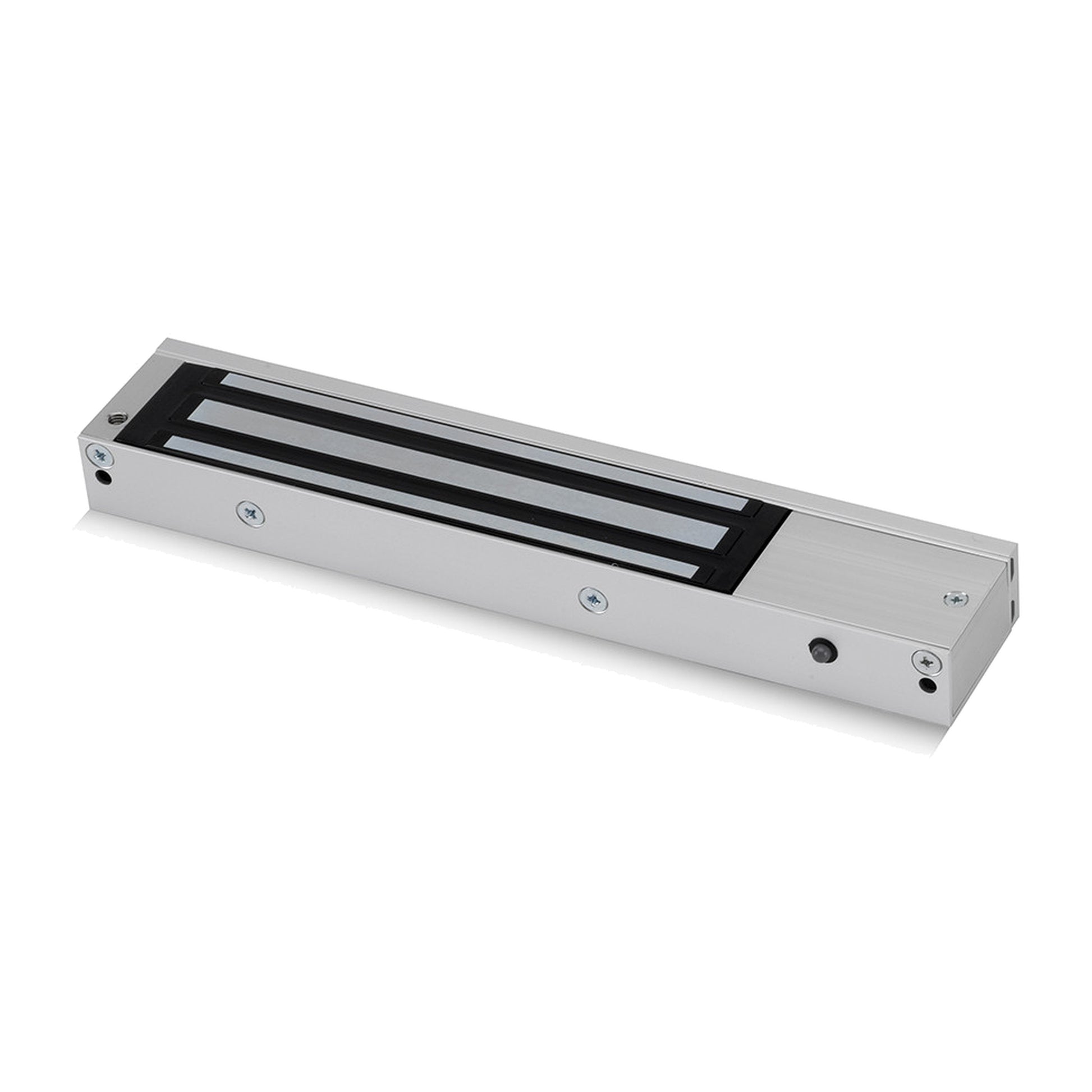

• A10002DS – Monitored Mini Magnetic Lock with Door Status Output
• FR-A10002 – Fire Rated Monitored Mini Magnetic Lock
• FR-A10002DS – Fire Rated Monitored Mini Magnetic Lock with Door Status Output

Key Features

• Compact Mini Magnetic Lock Design
• Up to 600lbs (272kg) Holding Force
• Selectable 12VDC or 24VDC Operation
• Fail Safe Operation (Power to Lock)
• Aluminium Lock Housing
• Monitored Lock Output
• Door Status Output on A10002DS & FR-A10002DS Models
• LED Lock Status Indication
• Green Unlocked / Red Locked LED Display
• Fire Rated Versions Available
• Tested to BS EN1634-1
• Suitable for FD30 and FD60 Fire Doors
• Suitable for Access Control Applications
• Reliable Electromagnetic Locking

Typical Applications

• Access Control Doors
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Premises
• Residential Developments
• Fire Door Installations
• Internal Security Doors
• Staff Access Areas
• Restricted Access Areas

Compatibility

The A10002 Series Mini Magnetic Locks are designed to integrate with a wide range of access control and door security equipment, making them suitable for both new installations and retrofit projects.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Emergency Door Release Units
• Power Supplies
• Relays and Timers
• Door Monitoring Systems

Technical Specification

• Lock Type: Mini Magnetic Lock (Maglock)
• Operation: Fail Safe (Power to Lock)
• Operating Voltage: Selectable 12VDC or 24VDC
• Holding Force: Up to 600lbs (272kg)
• Lock Monitoring: Monitored (All Models)
• Door Status Output: A10002DS & FR-A10002DS Only
• LED Indication: Lock Status LED - Green Unlocked / Red Locked
• Housing Material: Aluminium
• Fire Rating: BS EN 1634-1 (FR Models)
• Suitable Fire Doors: FD30 & FD60 (FR Models)
• Dimensions: 42mm x 250mm x 26mm (H x W x D)


A10002 Product Information

FR-A10002 Product Information

The A10002 Series Mini Magnetic Locks provide a secure and reliable locking solution for access control installations requiring compact dimensions, dependable holding force, lock status monitoring, and LED lock status indication. Available in standard, door status output, and fire-rated versions, they are ideal for commercial, residential, and public sector applications where a durable magnetic lock (maglock) is required.

Frequently Asked Questions

What is a Mini Magnetic Lock?

A mini magnetic lock is a compact electromagnetic locking device designed for use on access-controlled doors where installation space is limited. Despite its smaller size, it provides secure locking and reliable operation for a wide range of access control applications.

What is the Holding Force of the A10002 Series?

The A10002 Series provides a holding force of up to 600lbs (272kg), making it suitable for internal access control doors, offices, residential developments, and restricted access areas.

What Does Fail Safe Operation Mean?

Fail safe operation means the magnetic lock requires power to remain locked. If power is removed due to a power failure, fire alarm activation, or emergency release, the lock automatically unlocks to allow safe exit.

Are the FR-A10002 Models Suitable for Fire Doors?

Yes. The FR-A10002 and FR-A10002DS models have been tested to BS EN 1634-1 and are suitable for installation on compatible FD30 and FD60 fire doors.

What Is the Difference Between the A10002 and A10002DS?

The A10002 and A10002DS are both monitored mini magnetic locks with an output for connection to compatible access control systems. The A10002DS also includes a door status output. The A10002 provides the same monitored locking performance without the door status output.

Can the A10002 Series Be Used with Access Control Systems?

Yes. The A10002 Series is designed for integration with access control systems, door entry systems, intercoms, proximity card readers, keypad entry systems, and emergency door release units.

What Does the LED Indication Show?

The A10002 Series includes LED lock status indication, showing green when the lock is unlocked and red when the lock is locked.

Why Choose a Mini Magnetic Lock?

Mini magnetic locks offer a compact and reliable locking solution where installation space is limited. They provide dependable electromagnetic locking, fail-safe operation, and compatibility with a wide range of access control and door security systems.

Are Mini Magnetic Locks Suitable for Commercial Buildings?

Yes. The A10002 Series is suitable for commercial buildings, schools, healthcare facilities, residential developments, offices, and other environments where secure access control is required.
