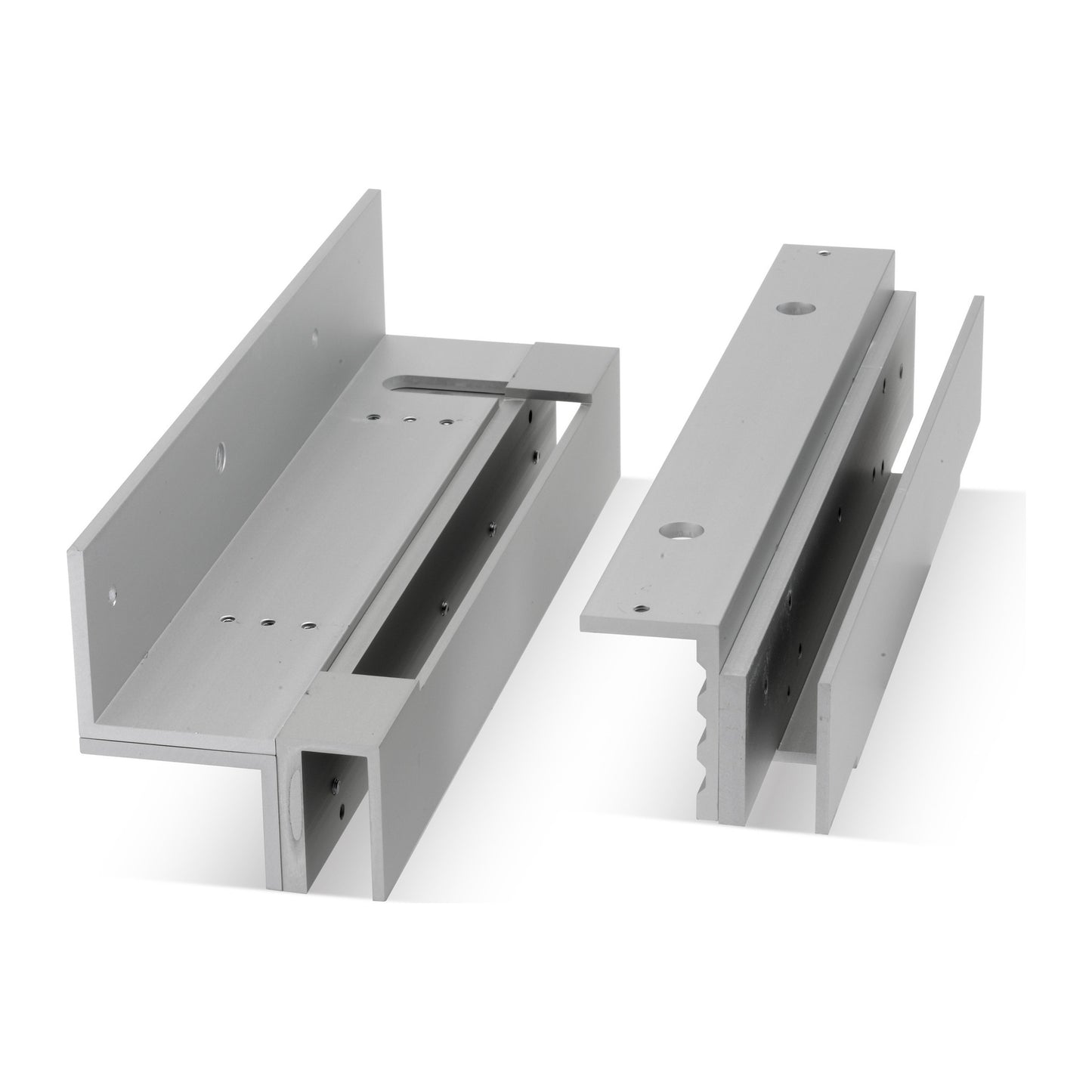

U300ZL-G Glass Mount Z&L Bracket for Mini Magnetic Locks

The U300ZL-G Glass Mount Z & L Bracket is designed for use with compatible 600lbs (272kg) mini magnetic locks where a glass door mounting solution is required. It provides a practical bracket arrangement for access control and door security installations where the magnetic lock and armature plate cannot be fitted using the standard fixing method.

Designed for mini maglock installations, the U300ZL-G helps position the magnetic lock and armature plate correctly on suitable glass door applications. The Z & L bracket arrangement is commonly used where additional bracketry is needed to achieve a secure and practical installation, particularly on inward opening doors or installations with limited fixing options.

Suitable for commercial, residential, educational, healthcare, office and light industrial environments, the U300ZL-G is commonly used as part of a complete access control system with compatible magnetic locks, power supplies, exit buttons, emergency door release units, keypads and proximity readers.

Available Model

• U300ZL-G – Glass mount Z & L Bracket for compatible mini magnetic locks

Key Features

• Glass mount Z & L bracket set for mini magnetic locks

• Designed for compatible 600lbs (272kg) maglock installations

• Suitable for selected glass door applications
• Provides mounting support for the magnet and armature plate

• Useful where standard fixing is not suitable

• Commonly used on inward opening door applications

• Suitable for new installations and retrofit projects

• Helps provide a secure and practical mounting arrangement

• Suitable for access control and door security systems

Typical Applications

• Mini magnetic lock installations

• Access control systems

• Door entry systems

• Commercial buildings

• Office doors

• Residential developments

• Educational facilities

• Healthcare buildings

• Restricted access areas

• Retrofit maglock installations
• Inward opening door applications

Compatibility and Accessories

The U300ZL-G Glass Mount Z & L Bracket is designed for use with compatible 600lbs (272kg) mini magnetic locks and related access control equipment.

Compatible Mini Magnetic Locks

• A10000 Series
• A10001 Series
• A10002 Series
• A10004 Series
• A10005 Series
• U10000 Series
• U10001 Series
• U10002 Series
• U10004 Series
• U10005 Series

Please check the maglock model, armature plate size, fixing method, door type, opening direction and installation requirements before ordering. If you are unsure whether this mounting plate is suitable for your lock, please contact us with the lock model and door details before purchase.

Compatible With

• Magnetic Locks Accessories
• Mini Magnetic Locks

• Access Control Systems

• Door Entry Systems

• Power Supplies, Relays and Timers

• Press to Exit / Request to Exit Buttons

• Emergency Door Release Units

Technical Specification

• Product type: Glass Mount Adjustable Z&L bracket
• Model: U300ZL-G
• Material: Anodised Aluminium
• Application: Magnetic lock mounting bracket
• Compatibility: Suitable for compatible 600lbs (272kg) mini magnetic locks

• Installation type: Glass door magnetic lock mounting accessory
• Use: Access control and magnetic lock installations
• Door application: Suitable for glass door applications where Z & L mounting is required

Mini Magnetic Lock Accessories Product Information

Please check compatibility with your magnetic lock, door and frame before ordering. The U300ZL-G Glass Mount Z & L Bracket should be installed in accordance with the magnetic lock manufacturer’s installation instructions and the requirements of the door application.

The U300ZL-G provides a practical mounting solution for compatible mini magnetic lock installations where a Glass Mount Z and L bracket arrangement is required.

Frequently Asked Questions

What is the U300ZL-G Glass Mount Z & L Bracket used for?

The U300ZL-G Glass Mount Z & L Bracket is used to mount compatible 600lbs (272kg) mini magnetic locks on suitable glass door applications where a Z and L bracket arrangement is required.

Which locks is the U300ZL-G compatible with?

The U300ZL-G is designed for use with compatible 600lbs (272kg) mini magnetic locks, including selected U10000, U10001, U10002, U10004 and U10005 Series locks.

Is the U300ZL-G suitable for standard 1200lbs magnetic locks?

No. The U300ZL-G is intended for compatible 600lbs (272kg) mini magnetic locks. Standard 1200lbs (544kg) magnetic locks normally require larger mounting brackets and accessories.

When would I need a glass mount Z & L bracket?

A glass mount Z & L bracket may be required where a mini magnetic lock needs to be installed on a suitable glass door and the standard fixing method is not suitable.

Can the U300ZL-G be used on inward opening doors?

Yes. Z & L brackets are commonly used on inward opening door applications where additional bracketry is needed to correctly position the magnetic lock and armature plate.
