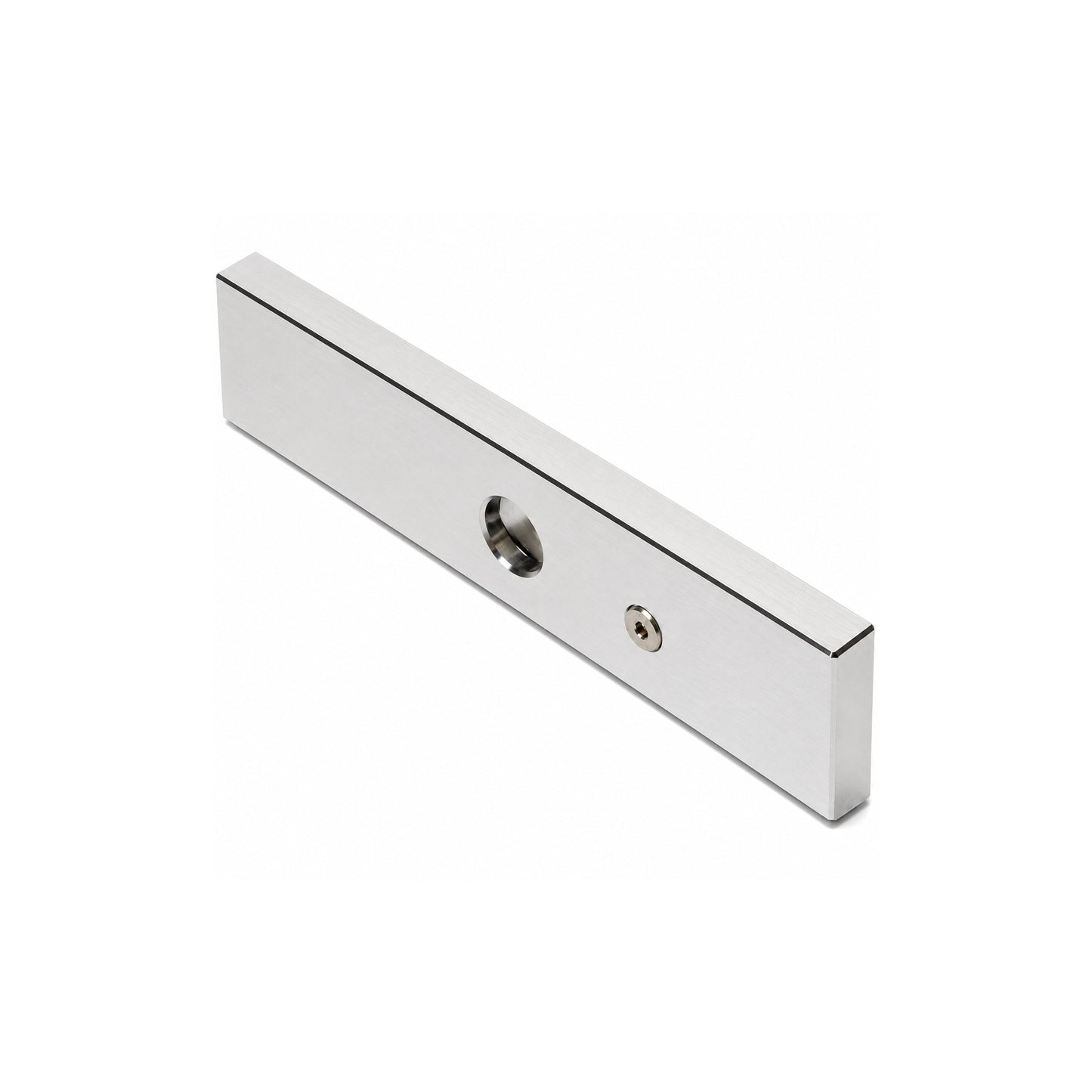

01ARM Armature Plate for Mini Magnetic Locks

The 01ARM Armature Plate is designed for use with compatible 600lbs (272kg) mini magnetic locks where a replacement or additional armature plate is required. It provides the matching contact plate used with the magnetic lock to create the holding force when the lock is powered.

Designed for mini maglock installations, the 01ARM is useful for replacement applications, damaged armature plates, spare parts, or installations where an additional compatible armature plate is required. Correct alignment between the magnetic lock and armature plate is essential for reliable holding force and proper door locking operation.

Suitable for commercial, residential, educational, healthcare, office and light industrial environments, the 01ARM is commonly used as part of an access control system with compatible magnetic locks, power supplies, exit buttons, emergency door release units, keypads and proximity readers.

Available Model

• 01ARM – Armature plate for compatible mini magnetic locks

Key Features

• Armature plate for mini magnetic locks

• Designed for compatible 600lbs (272kg) maglock installations

• Suitable as a replacement or spare armature plate

• Provides the contact plate for the magnetic lock holding surface

• Helps restore correct lock and armature operation when replacing a damaged plate

• Suitable for new installations, repairs and retrofit projects

• Suitable for access control and door security systems

Typical Applications

• Mini magnetic lock installations

• Access control systems

• Door entry systems

• Replacement armature plate applications

• Commercial buildings

• Office doors

• Educational facilities

• Healthcare buildings

• Residential developments

• Light industrial premises

• Restricted access areas

• Retrofit maglock installations

Compatibility and Accessories

The 01ARM Armature Plate is designed for use with compatible 600lbs (272kg) mini magnetic locks and related access control equipment.

Compatible mini magnetic locks

• A10000 Series
• A10001 Series
• A10002 Series
• A10004 Series
• A10005 Series
• U10000 Series
• U10001 Series
• U10002 Series
• U10004 Series
• U10005 Series


Please check the maglock model, armature plate size, fixing method, door type, opening direction and installation requirements before ordering. If you are unsure whether this armature plate is suitable for your lock or door, please contact us with the lock model and door details before purchase.

• Magnetic Locks Accessories
• Mini Magnetic Locks

• Access Control Systems

• Door Entry Systems

• Power Supplies, Relays and Timers

• Press to Exit / Request to Exit Buttons

• Emergency Door Release Units


Technical Specification

• Product type: Armature plate

• Model: 01ARM

• Application: Replacement or spare magnetic lock armature plate

• Compatibility: Suitable for compatible 600lbs (272kg) mini magnetic locks

• Installation type: Door-mounted armature plate

• Use: Access control and mini maglock installations

• Door application: Suitable where a compatible replacement armature plate is required

Mini Magnetic Lock Accessories Product Information

Please check compatibility with your magnetic lock before ordering. The 01ARM Armature Plate should be installed in accordance with the magnetic lock manufacturer’s installation instructions and the requirements of the door application.

Correct alignment between the armature plate and magnetic lock is important to achieve reliable holding force. The armature plate should be securely fitted while still allowing the correct movement required by the lock manufacturer’s installation method.

The 01ARM provides a practical replacement or spare armature plate for compatible 600lbs (272kg) mini magnetic lock installations.

Frequently Asked Questions

What is the 01ARM Armature Plate used for?

The 01ARM Armature Plate is used with compatible 600lbs (272kg) mini magnetic locks to provide the contact plate that the magnet holds against when powered.

Which locks is the 01ARM compatible with?

The 01ARM is designed for use with compatible 600lbs (272kg) mini magnetic locks, including the A10000, A10001, A10002, A10004, A10005, U10000, U10001, U10002, U10004 and U10005 Series.

Is the 01ARM suitable for standard 1200lbs magnetic locks?

No. The 01ARM is intended for compatible 600lbs (272kg) mini magnetic locks. Standard 1200lbs (544kg) magnetic locks normally require a larger armature plate.

When would I need a replacement armature plate?

A replacement armature plate may be required if the original plate is damaged, missing, worn, incorrectly fitted or required as a spare part for a compatible mini magnetic lock installation.

Can the 01ARM be used with access control systems?

Yes. The 01ARM is a magnetic lock accessory and can be used as part of an access control installation with compatible mini magnetic locks, power supplies, exit buttons, emergency door release units, keypads and proximity readers.

What should I check before ordering?

Please check the maglock model, armature plate size, fixing method, door type, opening direction and installation requirements before ordering.
