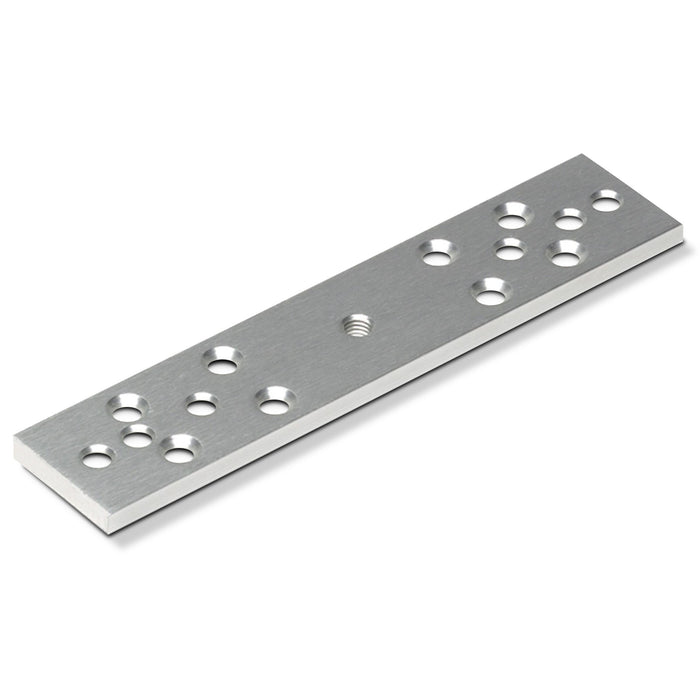

The A300BP Armature Mounting Plate is designed for use with compatible mini magnetic locks where additional armature plate mounting support is required. It provides a practical fixing solution for installations where the standard armature fixing method is not suitable due to the door type, construction, or available mounting surface.
Suitable for access control and electronic locking installations, the A300BP can help provide a secure and stable mounting point for the armature plate when fitting a compatible 600lbs (272kg) mini maglock.
Designed for commercial, residential, office, education, healthcare, and light industrial applications, the A300BP is a useful accessory for installers working with mini magnetic lock installations.
Available Model
- A300BP – Armature mounting plate for compatible mini magnetic locks
Key features
- Armature mounting plate for mini magnetic locks
- Designed for compatible 600lbs maglock installations
- Provides additional fixing support for the armature plate
- Useful where the standard fixing method is not suitable
- Suitable for access control and door security applications
- Helps provide a secure and stable armature mounting point
- Suitable for new installations and retrofit projects
Typical Applications
- Mini magnetic lock installations
- Access control systems
- Door entry systems
- Commercial buildings
- Office doors
- Residential developments
- Educational facilities
- Healthcare buildings
- Restricted access areas
- Retrofit maglock installations
Compatibility and Accessories
The A300BP Armature Mounting Plate is designed for use with compatible 600lbs (272kg) mini magnetic locks and related access control equipment.
Compatible Mini Magnetic Locks
- A10000 Series
- A10001 Series
- A10002 Series
- A10004 Series
- A10005 Series
- U10000 Series
- U10001 Series
- U10002 Series
- U10004 Series
- U10005 Series
Please check the maglock model, armature plate size, fixing method, door type, opening direction and installation requirements before ordering. If you are unsure whether this mounting plate is suitable for your lock, please contact us with the lock model and door details before purchase.
Compatible With
- Magnetic Locks Accessories
- Mini Magnetic Locks
- Access Control Systems
- Door Entry Systems
- Power Supplies, Relays and Timers
- Press to Exit / Request to Exit Buttons
- Emergency Door Release Units
Technical Specification
- Product type: Armature mounting plate
- Model: A300BP
- Material: Anodised Aluminium
- Application: Armature mounting support
- Compatibility: Suitable for compatible 600lbs (272kg) mini magnetic locks
- Installation type: Door-mounted armature plate accessory
- Use: Access control and magnetic lock installations
- Plate Dimensions: 284mm x 46mm x 6mm (L x W x D)
Mini Magnetic Lock Accessories Product Information
Please check compatibility with your magnetic lock before ordering. The A300BP Armature Mounting Plate should be installed in accordance with the magnetic lock manufacturer’s installation instructions and the requirements of the door application.
The A300BP provides a practical mounting solution for compatible mini magnetic lock installations where additional support or an alternative armature fixing method is required.
Frequently Asked Questions
What is the A300BP Armature Mounting Plate used for?
The 300BP Armature Mounting Plate is used to provide a suitable fixing point for the armature plate on compatible 600lbs (272kg) mini magnetic lock installations.
Which locks is the A300BP compatible with?
The A300BP is designed for use with compatible 600lbs (272kg) mini magnetic locks, including the A10000, A10001, A10002, A10004, A10005, U10000, U10001, U10002, U10004 and U10005 Series.
Is the A300BP suitable for standard 1200lbs magnetic locks?
No. The A300BP is intended for compatible 600lbs (272kg) mini magnetic locks. Standard 1200lbs (544kg) magnetic locks normally require different mounting accessories.
When would I need an armature mounting plate?
An armature mounting plate may be required where the standard armature fixing method is not suitable due to the door type, door construction, fixing position or available mounting surface.
Can the A300BP be used with access control systems?
Yes. The A300BP is a magnetic lock accessory and can be used as part of an access control installation with compatible mini magnetic locks, power supplies, exit buttons, emergency door release units, keypads and proximity readers.
What should I check before ordering?
Please check the maglock model, armature plate size, fixing method, door type, opening direction and installation requirements before ordering.
