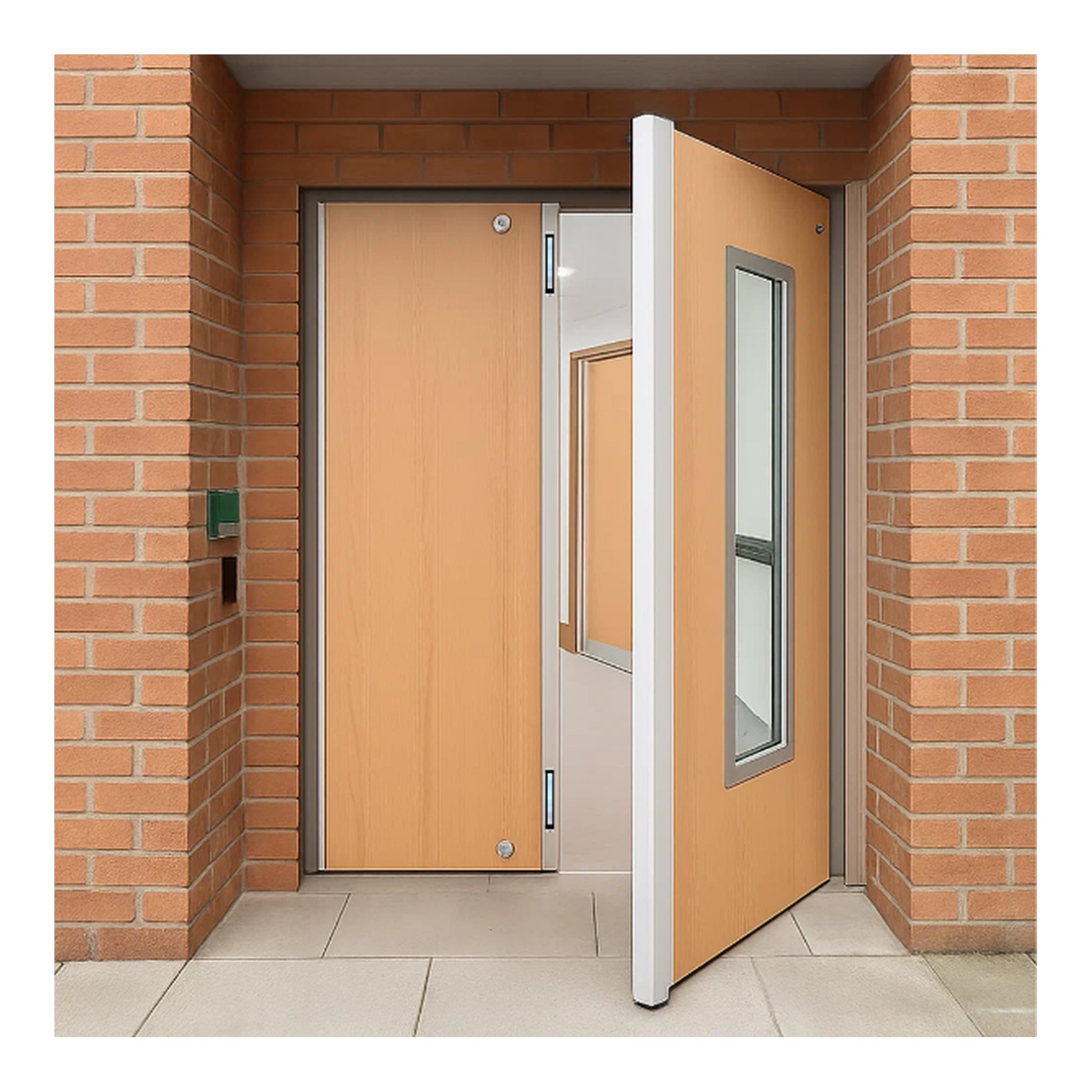

PH900 Unmonitored Door Handle with Integrated Double Mini Magnetic Locks (Maglock)

The PH900 Unmonitored Door Handle with Integrated Double Mini Magnetic Locks is a combined pull handle and electromagnetic locking solution designed for access-controlled doors. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, it provides secure fail-safe locking while incorporating a full-length pull handle into a single integrated system.

An electromagnetic lock, commonly known as a magnetic lock or maglock, consists of an electromagnet mounted to the door frame and a matching armature plate fitted to the door. When power is applied, the electromagnet generates a powerful magnetic field that securely holds the armature plate, keeping the door locked. As a fail-safe device, the lock automatically releases when power is removed, ensuring safe emergency egress.

Manufactured from satin anodised aluminium, the PH900 operates from 12VDC or 24VDC power supplies and incorporates two mini magnetic locks, each providing 600lbs (272kg) of holding force, giving a combined holding force of 1,200lbs (545kg). Supplied in a 2500mm length, the handle can be cut to suit individual door sizes, providing flexibility for a wide range of installations.

Available Models

• PH900 – Door Handle with Double Mini Magnetic Locks

**Please note: Due to the size of this item, a delivery charge of £26.50 + VAT applies**

Key Features

• Door handle with integrated double magnetic locks (maglocks)
• Twin mini magnetic locks
• Combined holding force up to 1,200lbs (545kg)
• Operating voltage 12VDC or 24VDC
• Fail-safe operation (power to lock)

• Satin anodised aluminium construction
• 2500mm length (can be cut to size)
• Suitable for access control systems
• Reliable electromagnetic locking
• Suitable for new installations and retrofits

Typical Applications

• Access-Controlled Doors
• Commercial Buildings
• Office Entrances
• Healthcare Facilities
• Educational Buildings
• Apartment Developments
• Public Buildings
• Reception Areas
• Restricted Access Areas
• High-Traffic Entrances

Compatibility

The PH900 Door Handle with Double Mini Magnetic Locks is designed to integrate with a wide range of access control and electronic security equipment.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Emergency Door Release Units
• Power Supplies
• Relays and Timers
• Door Monitoring Systems


Technical Specification

• Product Type: Door handle with double mini magnetic locks (maglocks)
• Operating Voltage: 12VDC or 24VDC
• Monitoring: Unmonitored
• Operation: Fail-safe (power to lock)
• Holding Force: 2 x 600lbs, 272kg each / 1,200lbs total (545kg)
• Construction: Satin anodised aluminium
• Overall Length: 2500mm (can be cut to size)

PH900 Product Information

The PH900 Door Handle with Integrated Double Mini Magnetic Locks combines a full-length pull handle with two integrated electromagnetic locks to provide a discreet, high-strength locking solution for entrance doors. Featuring fail-safe operation, a combined holding force of 1,200lbs (545kg), and a cut-to-length aluminium profile, it is ideal for commercial and architectural access control installations.

**Please note: Due to the size of this item, a delivery charge of £26.50 + VAT applies**

Frequently Asked Questions

What is the PH900?

The PH900 is a full-length door pull handle with two integrated mini magnetic locks, designed for access-controlled entrance doors requiring fail-safe locking.

What holding force does the PH900 provide?

The PH900 incorporates two 600lbs magnetic locks, providing a combined holding force of 1,200lbs (545kg).

Can the handle be cut to size?

Yes. The supplied 2500mm aluminium handle can be cut to suit the required door height during installation.

Is the PH900 fail-safe?

Yes. The PH900 is a fail-safe magnetic locking system, meaning the locks release automatically when power is removed.

Does the PH900 include lock status monitoring?

No. The PH900 does not include a lock status monitoring output.  Monitored alternatives such as the PH800 range provide a lock status monitoring output for integration with compatible access control and door monitoring systems.

Is the PH900 suitable for full-height doors?

Yes. The PH900 is supplied as a 2500mm aluminium handle profile and can be cut to suit the required door height during installation.

What voltage does the PH900 operate on?

The system operates from a 12VDC or 24VDC power supply.

What is the difference between the PH800 and PH900?

The PH900 is the unmonitored version and does not provide lock status monitoring output. The PH800 is the monitored version and includes lock status monitoring output for integration with compatible access control and door monitoring systems. Both incorporate two integrated mini magnetic locks, provide a combined holding force of 1,200lbs (545kg), and are supplied as a 2500mm cut-to-size aluminium handle profile.

Can the PH900 be used with access control systems?

Yes. The PH900 is designed for integration with access control systems, door entry systems, intercoms, keypads, proximity readers, emergency door release units, and other compatible electronic security equipment.
