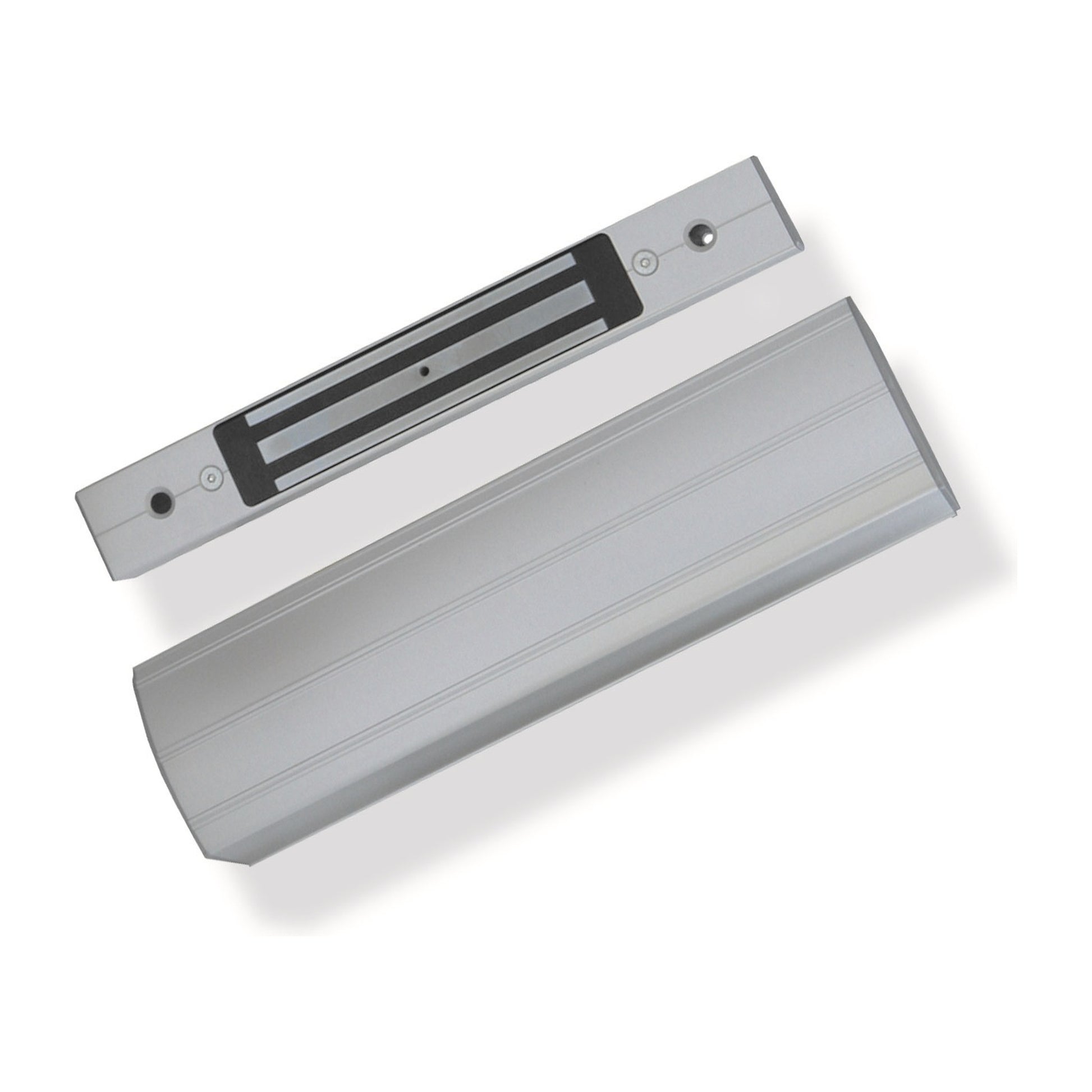

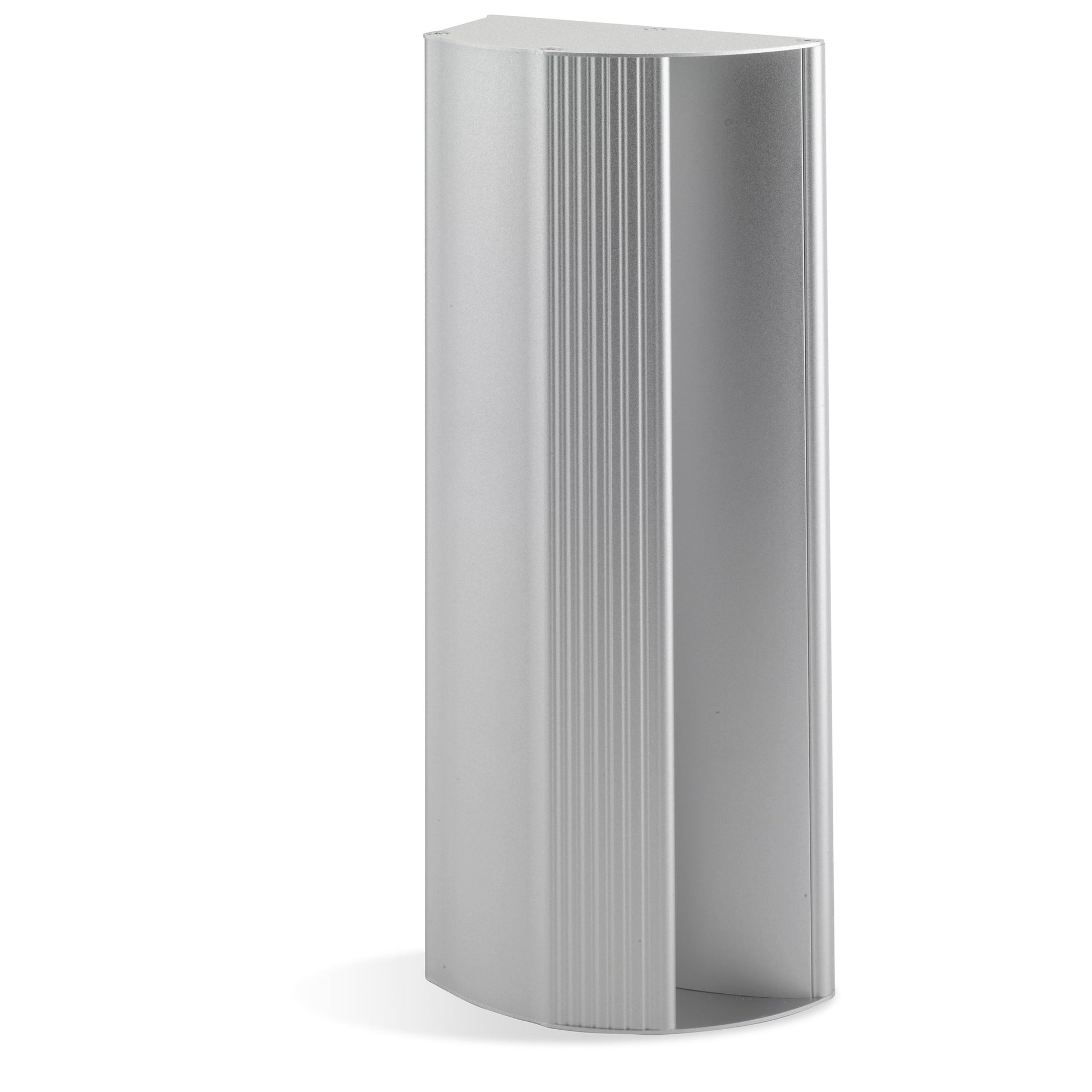

PH450 / PH450M Door Handle Magnetic Lock (Maglock)

The PH450 & PH450M Door Handle Magnetic Locks are a combined door pull handle and electromagnetic locking solution designed for use with access control systems, door entry systems, and electronic security installations. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide secure fail-safe locking while incorporating a robust door handle into a single unit.

An electromagnetic lock, commonly known as a magnetic lock or maglock, consists of an electromagnet mounted to the door frame and a matching armature plate fitted to the door. When power is applied, the electromagnet generates a powerful magnetic field that securely holds the armature plate, keeping the door locked. As a fail-safe device, the lock automatically releases when power is removed, ensuring safe emergency egress.

Manufactured from durable aluminium, the PH450 operates on 12VDC or 24VDC power supplies and provides a holding force of up to 600lbs (272kg). By integrating the pull handle with the magnetic lock assembly, it offers a neat, space-saving solution for modern access-controlled doors. The range is available in both standard (PH450) and monitored (PH450M) versions. The monitored model provides lock status feedback for integration with compatible access control systems, allowing the controller to verify whether the lock is securely engaged.

Available Models

• PH450 - Unmonitored Door Handle Magnetic Lock
• PH450M - Monitored Door Handle Magnetic Lock

Key Features

• Door handle magnetic lock (maglock)
• Combined pull handle and magnetic lock
• Operating voltage 12VDC or 24VDC
• Fail-safe operation (power to lock)
• Holding force up to 600lbs (272kg)
• Aluminium construction
• Lock status monitoring output available on PH450M only
• Compact integrated design
• Suitable for access control systems
• Reliable electromagnetic locking
• Suitable for new installations and retrofits

Typical Applications

• Access Control Systems
• Commercial Buildings
• Office Entrances
• Healthcare Facilities
• Educational Buildings
• Residential Developments
• Internal Security Doors
• Restricted Access Areas
• Reception Entrances
• Apartment Buildings
• Door Monitoring Systems

Compatibility

The PH450 Door Handle Magnetic Lock is designed to integrate with a wide range of access control and electronic security equipment.

• Access control systems
• Door entry systems
• Intercom systems

• Keypad entry systems
• Proximity card readers
• Building management systems
• Power supplies
• Door monitoring systems
• Security control systems


Technical Specification

• Product Type: Door handle magnetic lock (maglock)
• Operating Voltage: 12VDC or 24VDC
• Monitoring: Unmonitored (PH450) / Lock status monitoring output (PH450M)
• Operation: Fail-safe (power to lock)
• Holding Force: Up to 600lbs (272kg)
• Construction: Aluminium
• Lock Dimensions: 324mm x 48mm x 29mm (H x W x D)
• Handle Dimensions: 333mm x 124mm (H x W)

PH450 Product Information

The PH450 and PH450M Door Handle Magnetic Locks combine a robust pull handle with a powerful electromagnetic locking system in a single unit. Featuring fail-safe operation, up to 600lbs holding force, aluminium construction, and compatibility with a wide range of access control equipment, they provide an attractive and practical locking solution for commercial and public buildings.

Frequently Asked Questions

What is a door handle magnetic lock?

A door handle magnetic lock combines an integrated pull handle with an electromagnetic lock, providing both secure locking and a convenient means of opening the door once access has been authorised.

What holding force does the PH450 provide?

The PH450 provides a holding force of up to 600lbs (272kg).

What voltage does the PH450 operate on?

The lock operates from a 12VDC or 24VDC power supply.

Is the PH450 fail-safe?

Yes. The PH450 is a fail-safe magnetic lock, meaning it unlocks automatically when power is removed.

What material is the PH450 made from?

The lock is manufactured from durable aluminium for strength, corrosion resistance, and long service life.

What is the difference between the PH450 and PH450M?

The PH450M includes a lock status monitoring output for integration with compatible access control systems, while the PH450 is the standard unmonitored version.

Can the PH450 be used with access control systems?

Yes. The PH450 and PH450M are designed for integration with access control systems, door entry systems, intercoms, keypads, proximity readers, emergency door release units, and other compatible electronic security equipment.

Can the PH450 be used as both a handle and a lock?

Yes. The PH450 combines a pull handle with an electromagnetic lock, providing both a physical door handle and electronic locking in one integrated unit.
