ONE K2 Single Door Keypad Access Control Kit

The ONE K2 Single Door Keypad Access Control Kit is a complete access control solution designed for securing a single door using keypad entry. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, the kit provides the main hardware required to install a reliable standalone access control system.

Designed to simplify installation, the ONE K2 combines a digital keypad, magnetic lock, Z & L mounting bracket, power supply, exit button, and emergency break glass unit into a single convenient package. The system allows authorised users to gain access via PIN code while providing safe egress through the exit button and emergency release via the green break glass unit.

Ideal for offices, staff entrances, workshops, storerooms, and other controlled access areas, the ONE K2 offers a cost-effective solution for new installations and retrofit projects.

Available Models

• ONE K2 – Single Door Keypad Access Control Kit

Key Features

• Complete single door keypad access control kit
• Standalone digital keypad system
• Suitable for one door installation
• Supports up to 21 users
• Includes 12VDC 1A boxed power supply
• Includes magnetic lock (maglock)
• Includes Z & L mounting bracket
• Includes press to exit button
• Includes emergency door release unit
• Easy to install
• Suitable for new installations and retrofits

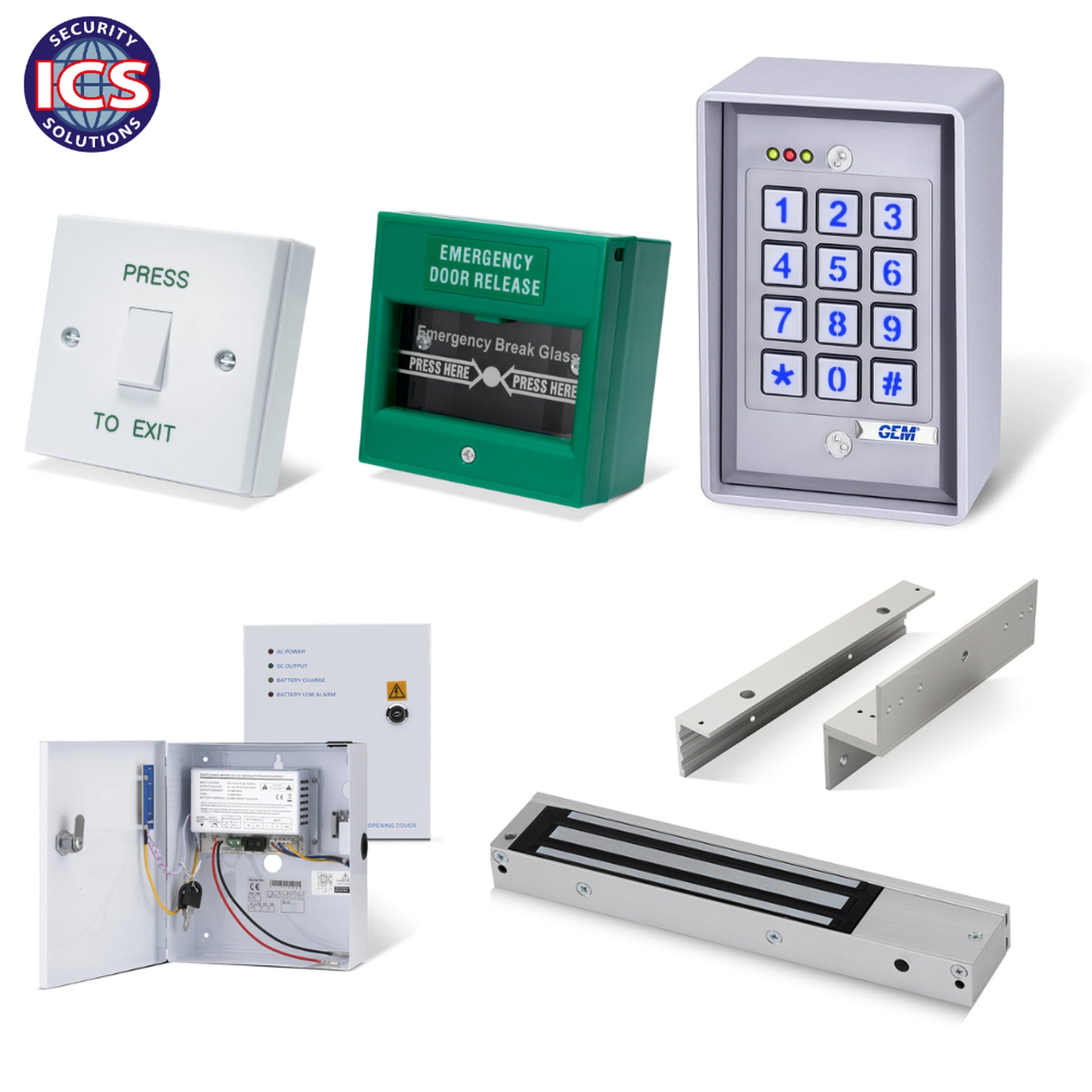

Kit Contents

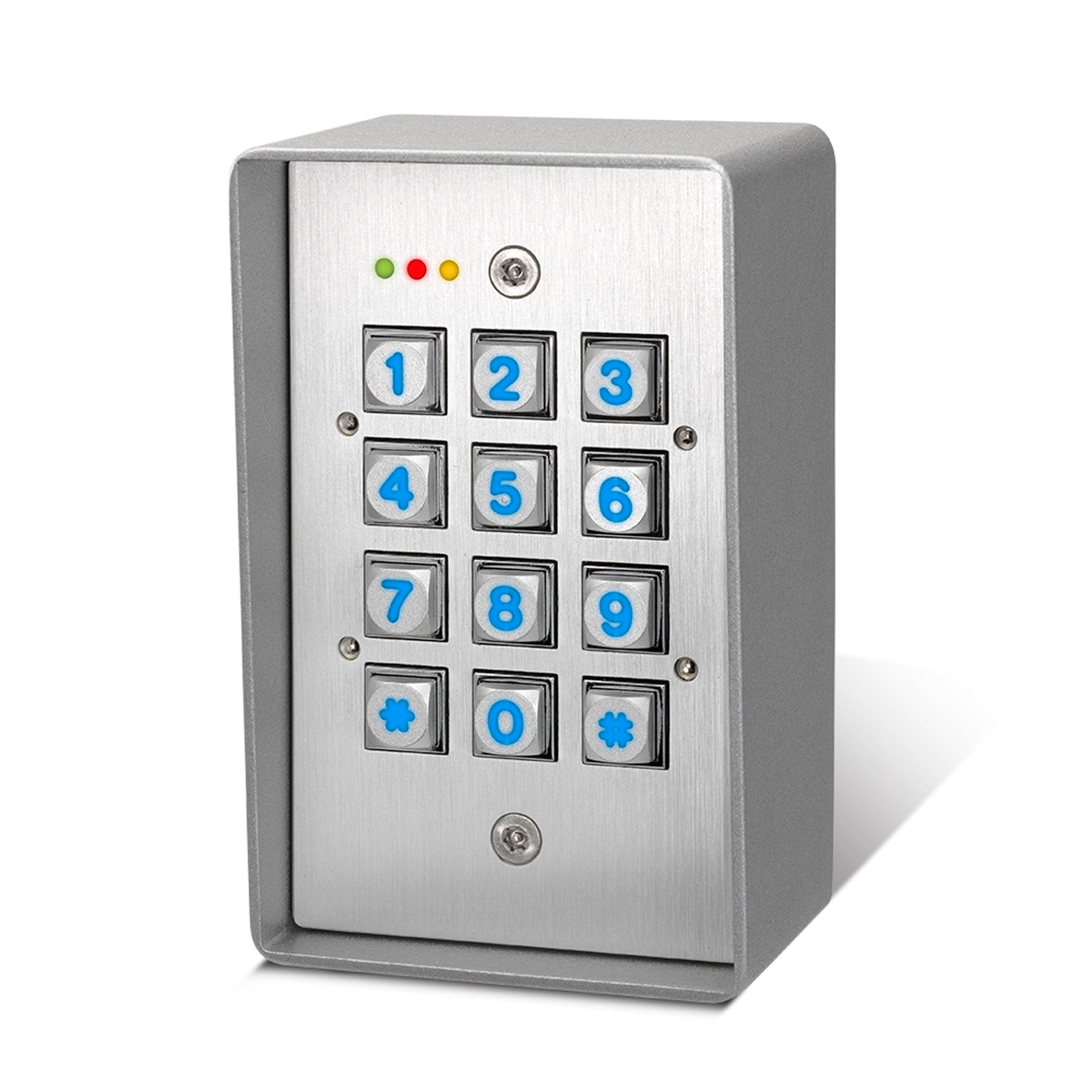

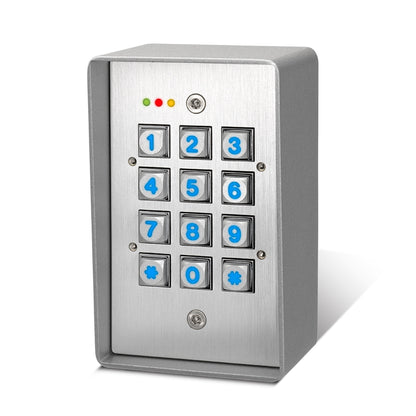

• 1 × DG-15LD Digital Keypad – 21 User Capacity
• 1 × 12VDC 1A Boxed Power Supply
• 1 × U10001 Magnetic Lock (Maglock)
• 1 × U300ZL Z & L Bracket
• 1 × DRB001N-PTE Press to Exit Button

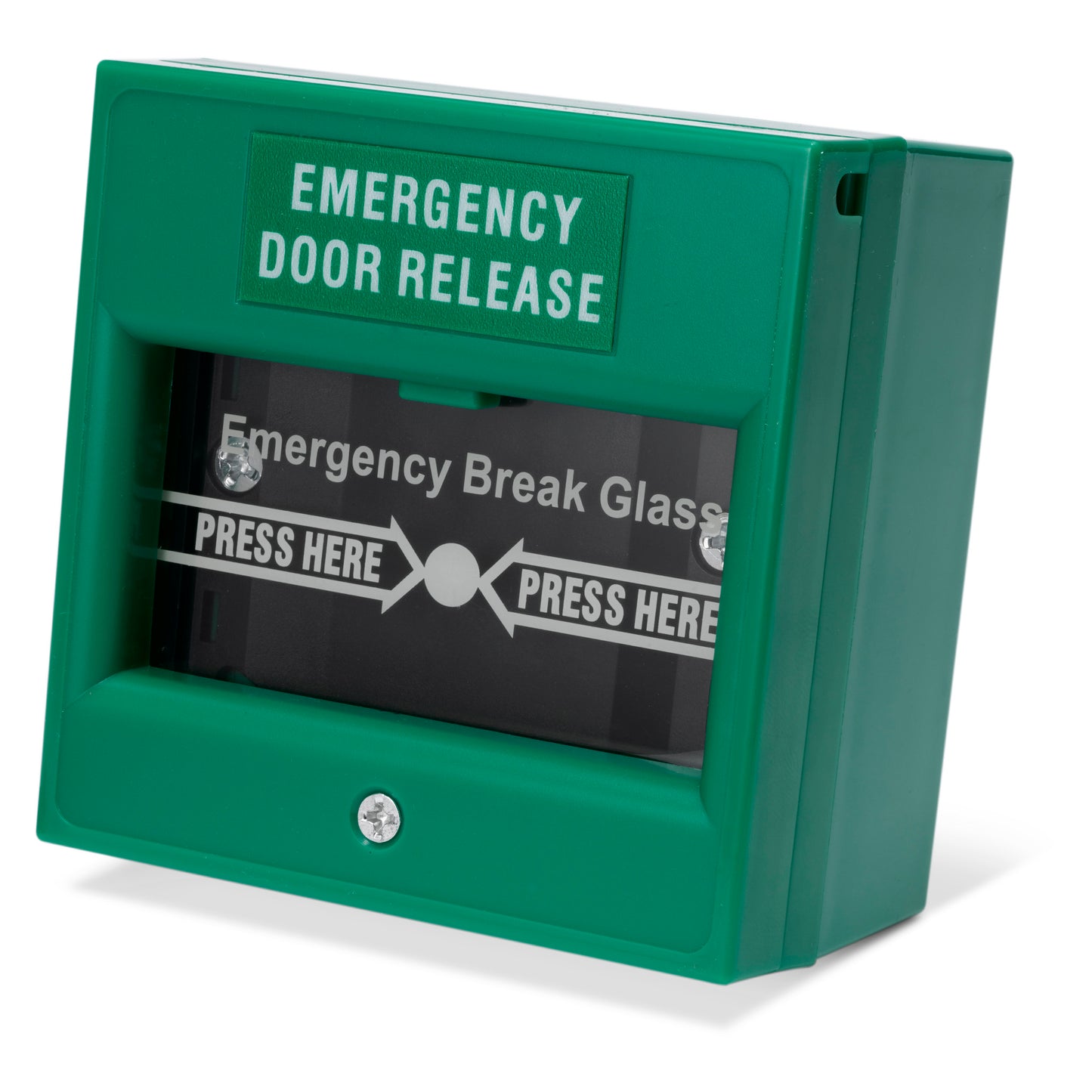

• 1 × CP21-N Emergency Door Release Unit

Typical Applications

• Office Entrances
• Commercial Buildings
• Staff Access Doors
• Residential Developments
• Small Businesses
• Workshops
• Storerooms
• Educational Facilities
• Healthcare Buildings
• Restricted Access Areas

Compatibility

The ONE K2 Single Door Keypad Access Control Kit is designed to provide a complete standalone access control solution and is compatible with a range of additional security equipment.

• Electric Locks
• Door Entry Systems
• Intercom Systems
• Exit Buttons
• Emergency Door Release Units
• Access Control Accessories
• Door Closers
• Fire Alarm Interfaces
• Additional Power Supplies
• Door Contact Monitoring


Technical Specification

• Product Type: Single Door Keypad Access Control Kit
• Door Capacity: 1 Door
• Keypad: DG-15LD Digital Keypad
• User Capacity: Up to 21 users
• Power Supply: 12VDC 1A Boxed Power Supply
• Lock Type: U10001 Magnetic Lock (Maglock)
• Mounting Bracket: U300ZL Z & L Bracket
• Exit Button: DRB001N-PTE Press to Exit Button
• Emergency Release: P21-N Emergency Door Release Unit

ONE K2 Product Information

The ONE K2 Single Door Keypad Access Kit provides a complete and cost-effective access control solution for a single door. Supplied with a digital keypad, magnetic lock, Z & L mounting bracket, power supply, exit button, and emergency break glass unit, it provides the main hardware required for a straightforward access control installation.

Frequently Asked Questions

What is included in the ONE K2 kit?

The kit includes a DG-15LD digital keypad, 12VDC 1A boxed power supply, U10001 magnetic lock, U300ZL Z & L bracket, DRB001N-PTE press to exit button, and CP21-N emergency door release unit.

How many doors can the ONE K2 control?

The ONE K2 is designed to control a single door.

How many users can the keypad support?

The supplied DG-15LD keypad supports up to 21 users.

Does the ONE K2 kit include installation cable?

No. The ONE K2 kit includes the main access control hardware required for a single door maglock installation. Connection cable, fixings, and other installation consumables are not included and must be supplied separately to suit the installation requirements.

Does the kit include a magnetic lock?

Yes. The kit includes an U10001 magnetic lock (maglock) together with an U300ZL Z & L mounting bracket.

Is an emergency door release included?

Yes. A CP21-N emergency break glass unit is supplied as standard.

Does the ONE K2 include everything required for installation?

The ONE K2 includes the main hardware required for a single door access control installation, including the keypad, magnetic lock, mounting bracket, power supply, press to exit button, and emergency door release unit. Installation cable, fixings, and other consumables are not included.

Is the ONE K2 suitable for fail-safe door release applications?

Yes. The A10001 magnetic lock included in the ONE K2 is a fail-safe lock, meaning it releases automatically when power is removed, making it suitable for integration with access control and emergency release systems.

Is the kit suitable for new installations?

Yes. The ONE K2 is designed as a complete kit for both new installations and retrofit access control projects.
