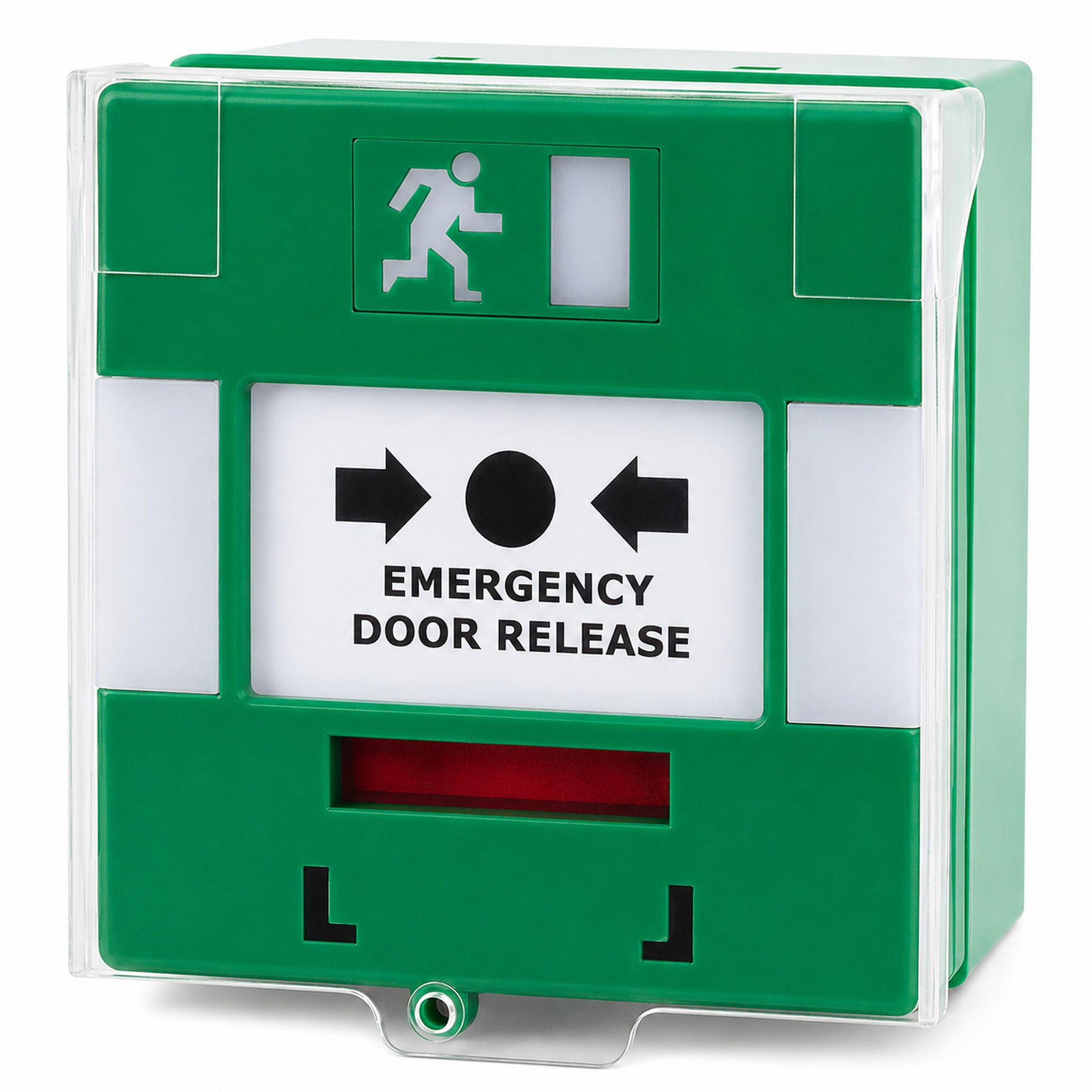

MCP220 Triple Pole Resettable Illuminated Emergency Call Point with Sounder

The MCP220 Triple Pole Resettable Illuminated Emergency Call Point with Sounder is an emergency door release device designed to provide safe override of electronic locking systems during emergency situations. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, it ensures that exit routes can be quickly and safely released when required.

Commonly referred to as an emergency door release, emergency break glass, green break glass unit, or emergency exit call point, the MCP220 is installed alongside access control systems to immediately interrupt power to electric locks and magnetic locks when activated. This provides a safe means of escape in accordance with access control and life safety system requirements.

Manufactured from durable green plastic, the MCP220 features a resettable operating mechanism, eliminating the need to replace glass after activation. The unit also incorporates an adjustable LED indicator and adjustable sounder, providing both visual and audible indication when operated. Designed for surface mounting, the MCP220 is suitable for a wide range of emergency exit installations.

Available Models

• MCP220 – Resettable Illuminated Emergency Call Point with Sounder

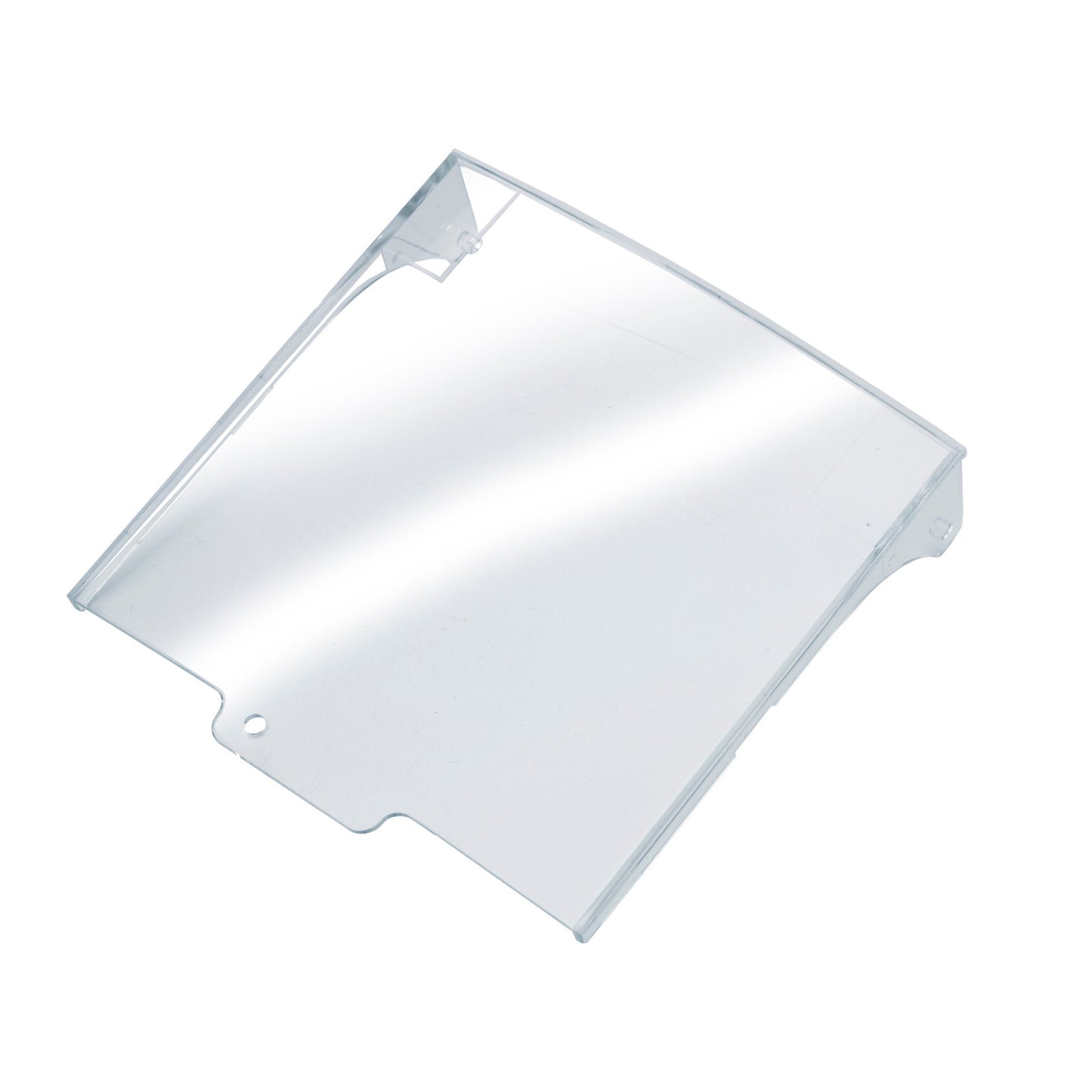

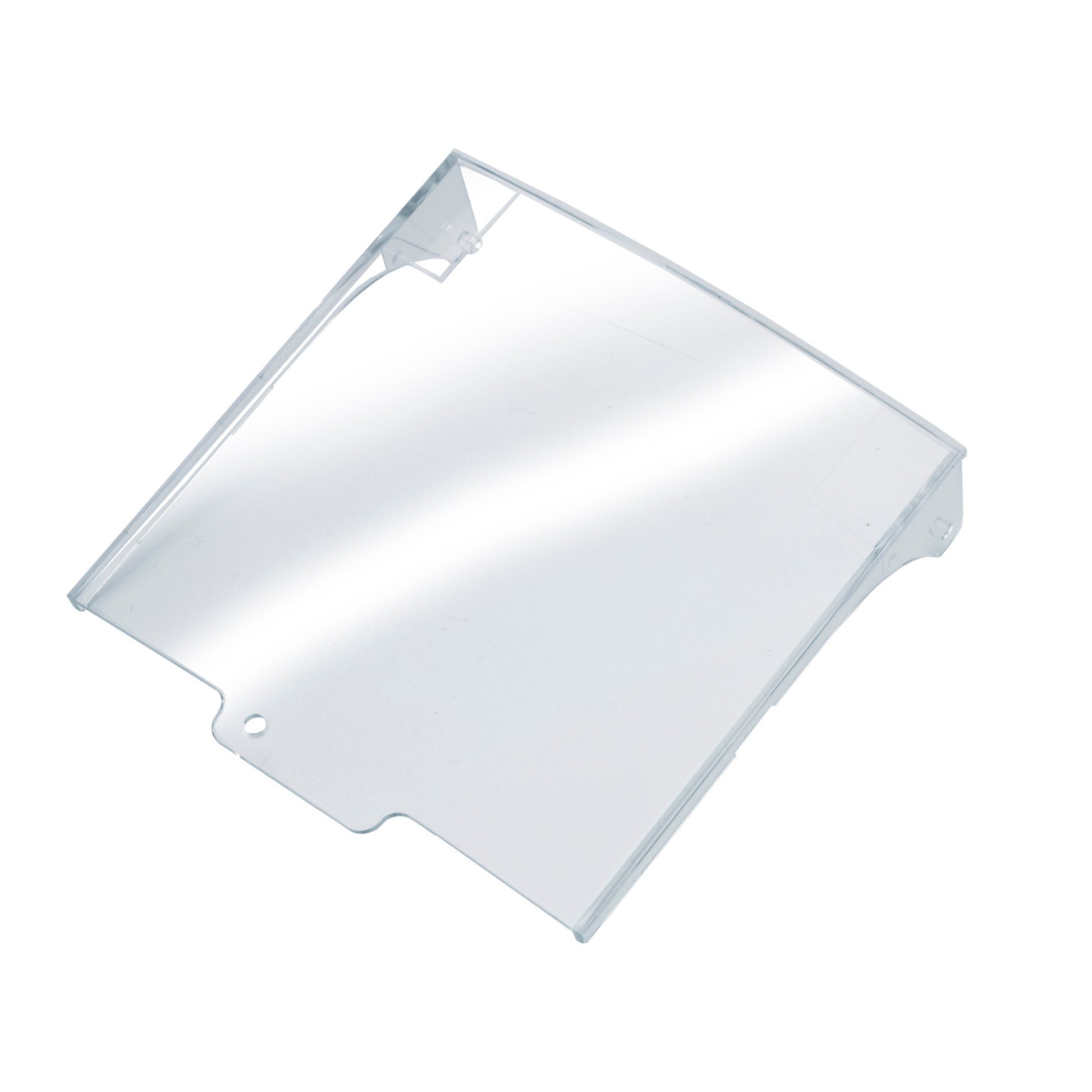

• MCP110-Cover - Hinged cover for the MCP2200 Call Point

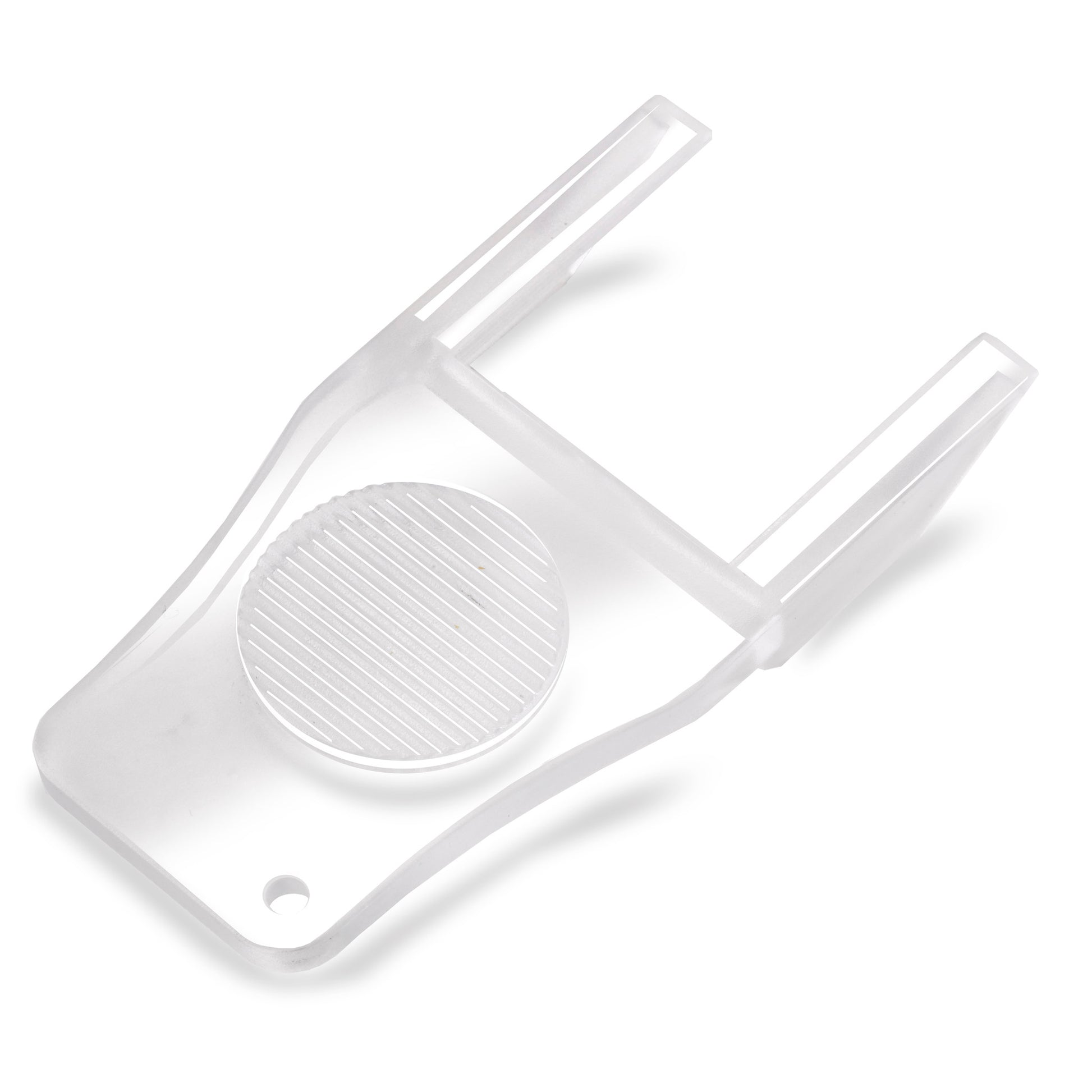

• MCP110-KEY - Reset Key for the MCP220 Call Point

Key Features

• Resettable Emergency Call Point
• Integrated adjustable LED indicator
• Integrated adjustable sounder
• Operating voltage 12VDC ~ 24VDC
• Triple pole switching
• Green plastic housing
• Surface mount design
• Resettable operating element
• Suitable for emergency door release applications
• Suitable for access control systems
• Durable construction
• Suitable for new installations and retrofits


Typical Applications

• Access Control Systems
• Emergency Door Release Systems
• Fire Escape Routes
• Commercial Buildings
• Office Buildings
• Schools and Universities
• Healthcare Facilities
• Industrial Buildings
• Public Buildings
• Secure Exit Doors

Compatibility

The MCP220 Triple Pole Resettable Emergency Call Point is designed to integrate with a wide range of access control and life safety equipment.

• Access Control Systems
• Emergency Exit Doors
• Door Entry Systems
• Intercom Systems
• Magnetic Locks (Maglocks)
• Fail Safe Magnetic Lock Systems
• Electric Locks
• Electric Strikes
• Electric Bolts
• Shear Locks
• Emergency Door Release Systems
• Power Supplies
• Relays and Timers
• Building Management Systems
• Fire Alarm Interface Systems


Technical Specification

• Product Type: Resettable Break Glass Unit with Sounder
• Operating Voltage: 12VDC to 24VDC
• Operation: Resettable
• LED Indicator: Adjustable
• Sounder: Adjustable
• Switching: Triple Pole
• Housing Material: Green plastic
• Mounting: Surface mount
• Dimensions: 85mm x 85mm x 42mm (H x W x D)


MCP220 Product Information

The MCP220 Resettable Illuminated Call Point with Sounder provides a reliable emergency door release solution for access control installations. Featuring a resettable operating mechanism, adjustable LED indicator, integrated sounder, and triple pole switching, it offers enhanced functionality whilst reducing ongoing maintenance costs associated with traditional glass-element call points.

Frequently Asked Questions

What is the MCP220 used for?

The MCP220 is used to safely override electronic locking systems during an emergency, allowing immediate release of locked exit doors.

Does the MCP220 require replacement glass?

No. The MCP220 features a resettable operating element, allowing it to be quickly reset after activation without replacing glass.

Does the MCP220 include an LED and sounder?

Yes. The unit includes both an adjustable LED indicator and an adjustable sounder to provide visual and audible indication when activated.

What voltage does the MCP220 operate on?

The MCP220 operates from either a 12VDC or 24VDC power supply.

What type of contacts does the MCP220 have?

The MCP220 features triple pole switching for flexible integration with access control and emergency release systems.

What does triple pole switching mean?

Triple pole switching provides three separate switching circuits within the call point, allowing the MCP220 to control or signal multiple compatible systems from a single emergency activation.

Can the MCP220 be used with magnetic locks?

Yes. The MCP220 is designed for integration with magnetic locks, electric locks, access control systems, and emergency door release installations, allowing power to be interrupted during an emergency.
