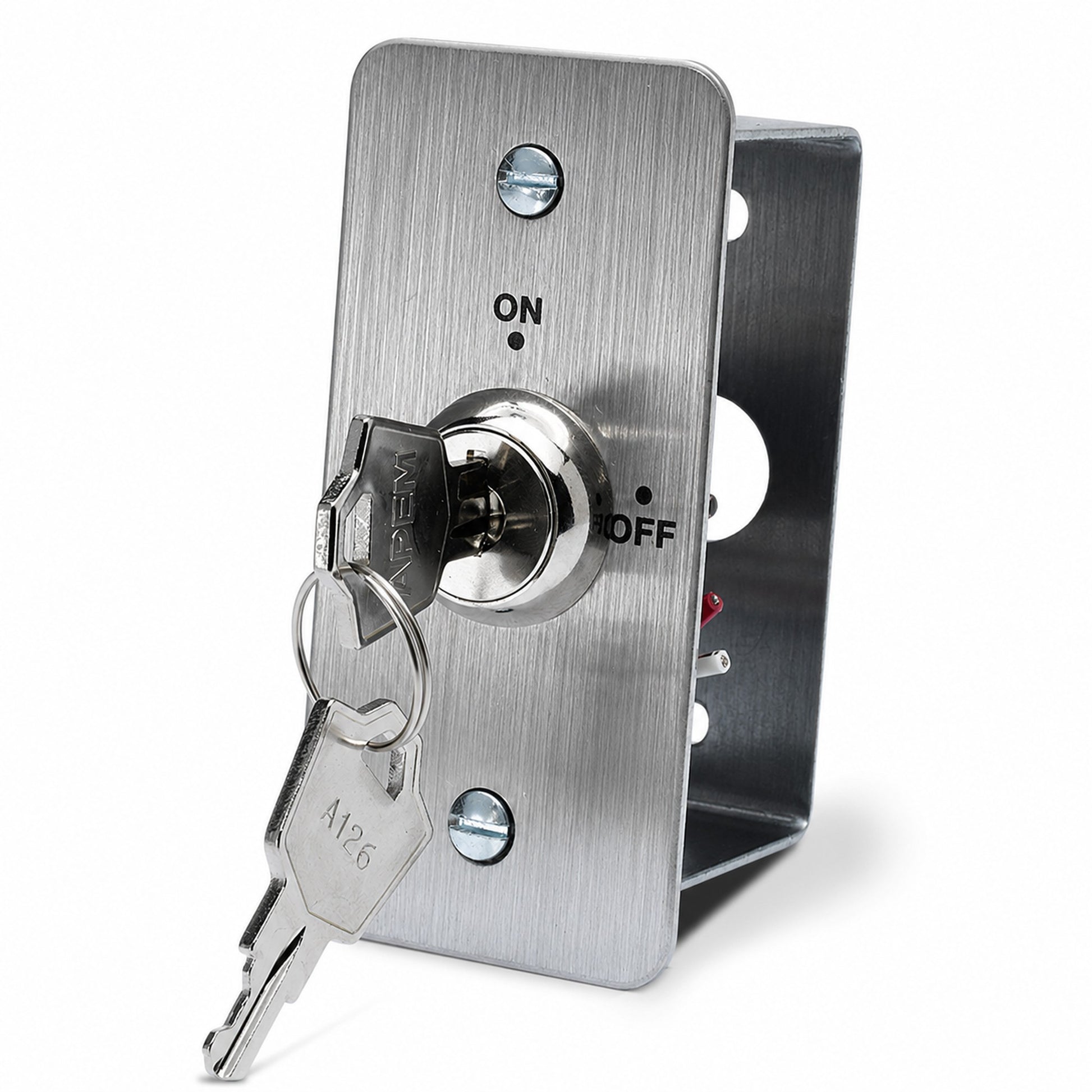

KS-001N Series Maintained Narrow Key Switch

The KS-001N Series Maintained Narrow Key Switch is a compact access control switch designed for secure manual operation within door control, access control, and security systems. Suitable for commercial, industrial, residential, educational, healthcare, and public sector environments, it provides reliable keyed control where installation space is limited.

Featuring a narrow brushed stainless steel faceplate, the KS-001N is ideal for door frames, mullions, and restricted mounting locations where a standard-sized key switch may not be suitable. The switch supports both flush mounting and surface mounting when used with the optional surround, providing flexibility for a wide range of installation requirements.

The KS-001N range features maintained key switch operation with COM, NO, and NC contacts for flexible integration with access control systems, electric locks, magnetic locks, gate automation equipment, and building management systems. Available in single pole, double pole, blank faceplate, and 3-position versions, the range provides flexible keyed control for a wide variety of low-voltage control applications. The key is removable in all switch positions and all units are supplied keyed alike for convenient operation across multiple installations.

Available Models

• KS-001N - Single Pole Maintained Narrow Key Switch
• KS-001N-DP - Double Pole Maintained Narrow Key Switch
• KS-001N-3POS - 3 Position Double Pole Narrow Key Switch
• KS-001N-NL - Blank Single Pole Maintained Narrow Key Switch
• KS-001N-NL-DP - Blank Double Pole Maintained Narrow Key Switch

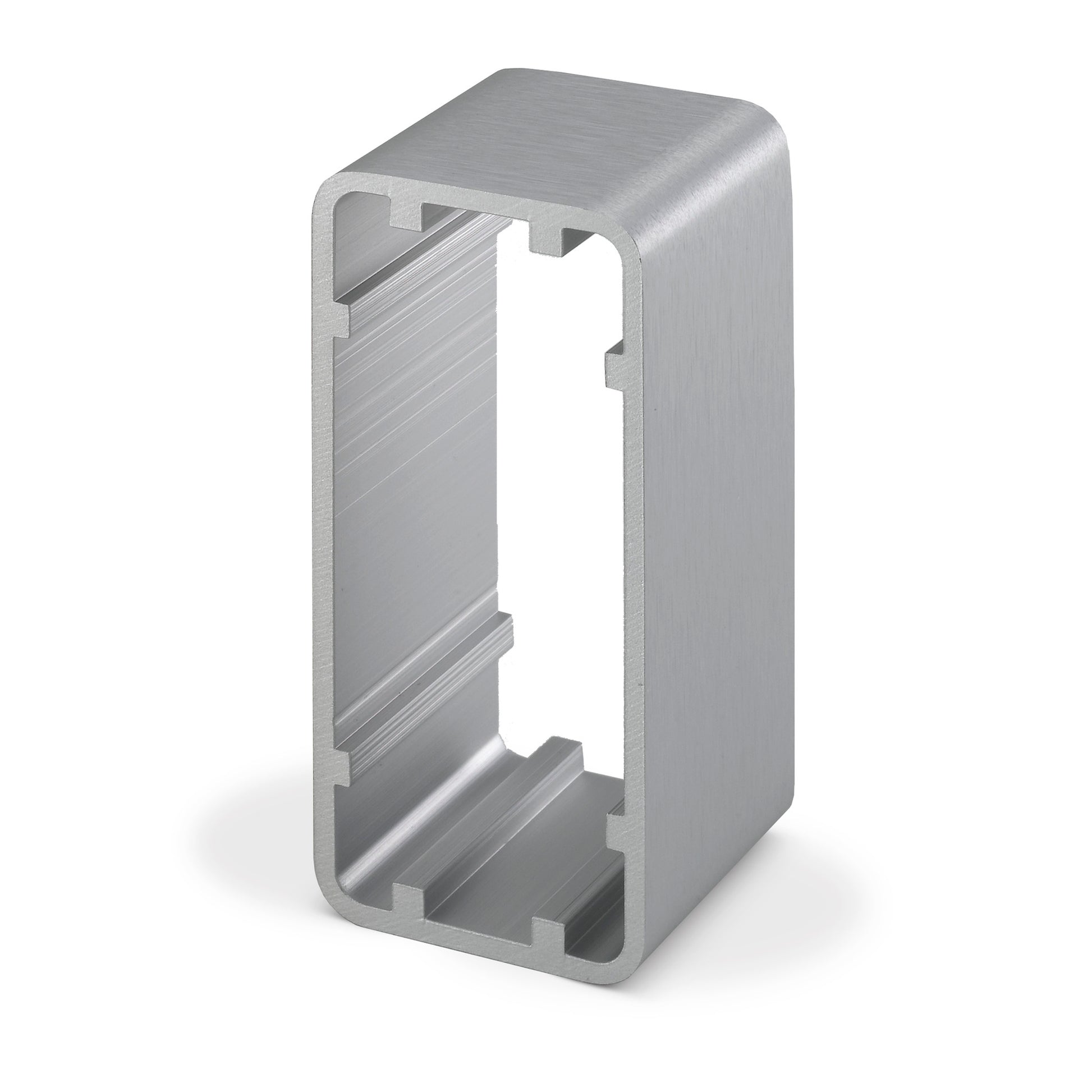

• DRB-SH-N - Narrow Surface Surround Housing

Key Features

• Narrow brushed stainless steel faceplate
• Single pole, double pole, blank faceplate, and 3-position versions available
• Maintained action
• Keyed alike
• Key removable in all positions
• COM / NO / NC contacts
• Flush mount installation
• Surface mount option available
• Suitable for access control systems
• Durable mechanical construction
• Professional architectural finish
• Suitable for new installations and retrofits


Typical Applications

• Access Control Systems
• Door Entry Systems
• Electric Lock Control
• Magnetic Lock (Maglock) Control
• Gate Automation Systems
• Roller Shutters
• Security Systems
• Industrial Control Panels
• Commercial Buildings
• Restricted Area Control

Compatibility

The KS-001N Maintained Narrow Key Switch is designed to integrate with a wide range of access control and automation equipment.

• Access Control Systems
• Electric Strike Locks
• Magnetic Locks (Maglocks)
• Door Controllers
• Gate Automation Systems
• Roller Shutters
• Automatic Barriers
• Intercom Systems
• Security Control Panels
• Press to Exit Buttons
• Emergency Door Release Systems
• Building Management Systems


Technical Specification

• Product Type: Narrow Key Switch
• Pole Configuration: Single pole (KS-001N / KS-001N-NL) / double pole (KS-001N-DP / KS-001N-NL-DP / KS-001N-3POS)
• Operation: Maintained
• Contacts: COM / NO / NC
• Switch Positions: 2 position maintained / 3 position maintained (KS-001N-3POS)
• Keying: Keyed alike
• Key Release: All positions
• Faceplate Material: Brushed stainless steel
• Mounting: Flush mount or surface mount with optional surround
• Dimensions: 85mm x 38mm (H x W)

KS-001N Product Information

The KS-001N Series Maintained Narrow Key Switch provides a compact and reliable keyed control solution for access control and automation applications where installation space is limited. Available in single pole, double pole, blank faceplate, and 3-position versions, the range offers flexible control options with durable stainless steel construction, keyed alike functionality, and flush or surface mounting options.

Frequently Asked Questions

What is a narrow key switch?

A narrow key switch is a compact version of a standard key switch designed for installation on narrow door frames, mullions, and other restricted mounting locations.

What is maintained operation?

Maintained operation means the switch remains in its selected position until the key is turned again.

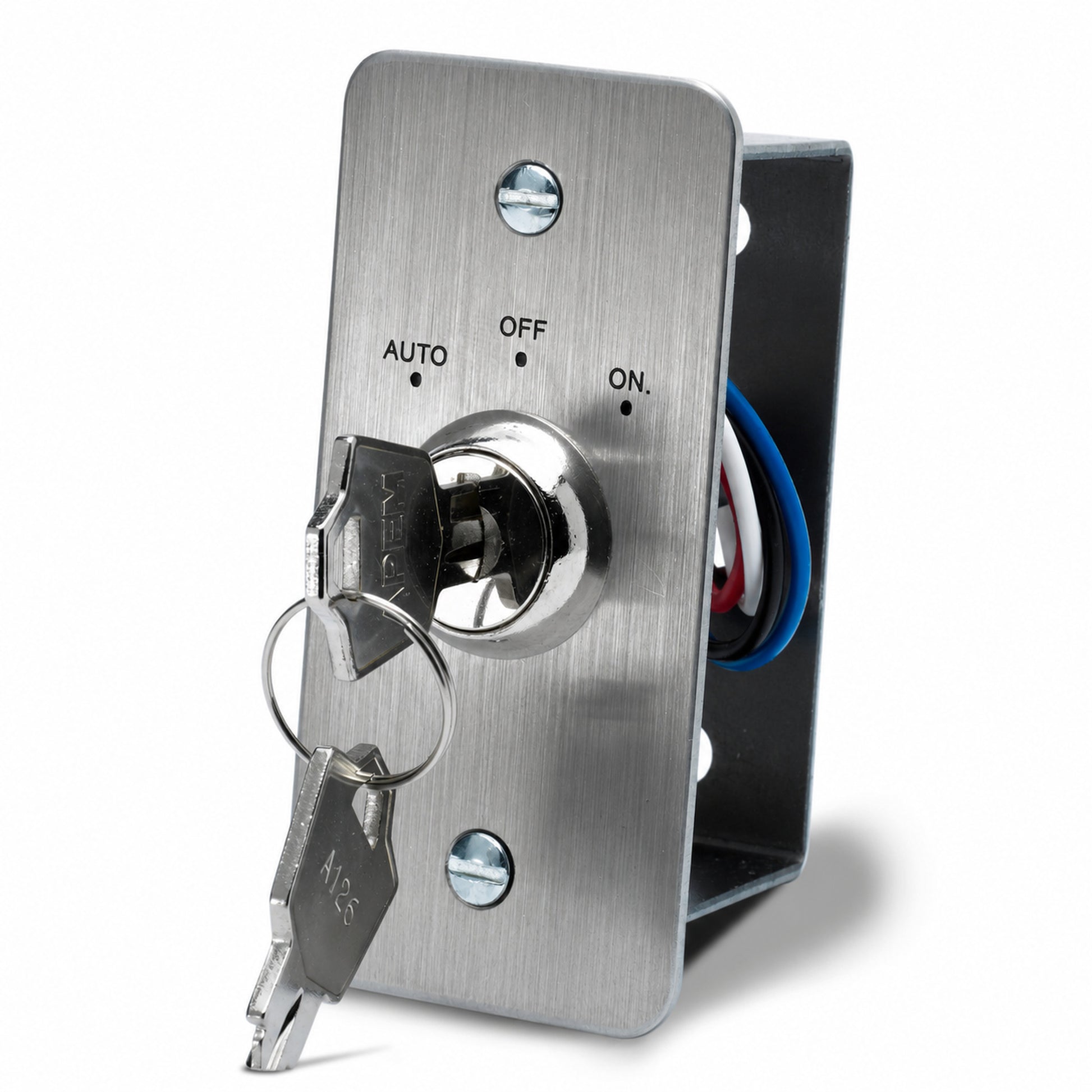

What is the KS-001N-3POS used for?

The KS-001N-3POS is a 3-position double pole narrow key switch designed for applications where keyed control of multiple switch positions is required, such as Open / Off / Close or similar control functions, depending on the connected equipment.

Can the KS-001N be surface mounted?

Yes. The KS-001N can be surface mounted when used with the optional surface surround.

Is the key removable in both positions?

Yes. The key can be removed in either switch position.

What contact outputs are available?

The KS-001N features COM, NO, and NC contacts for flexible integration with a wide range of systems.

What is the difference between the single pole and double pole versions?

The single pole versions provide one set of COM, NO, and NC contacts, while the double pole versions provide two independent sets of contacts. This allows the double pole models to switch or control two separate circuits from the same keyed operation.

What does NL mean on the KS-001N-NL models?

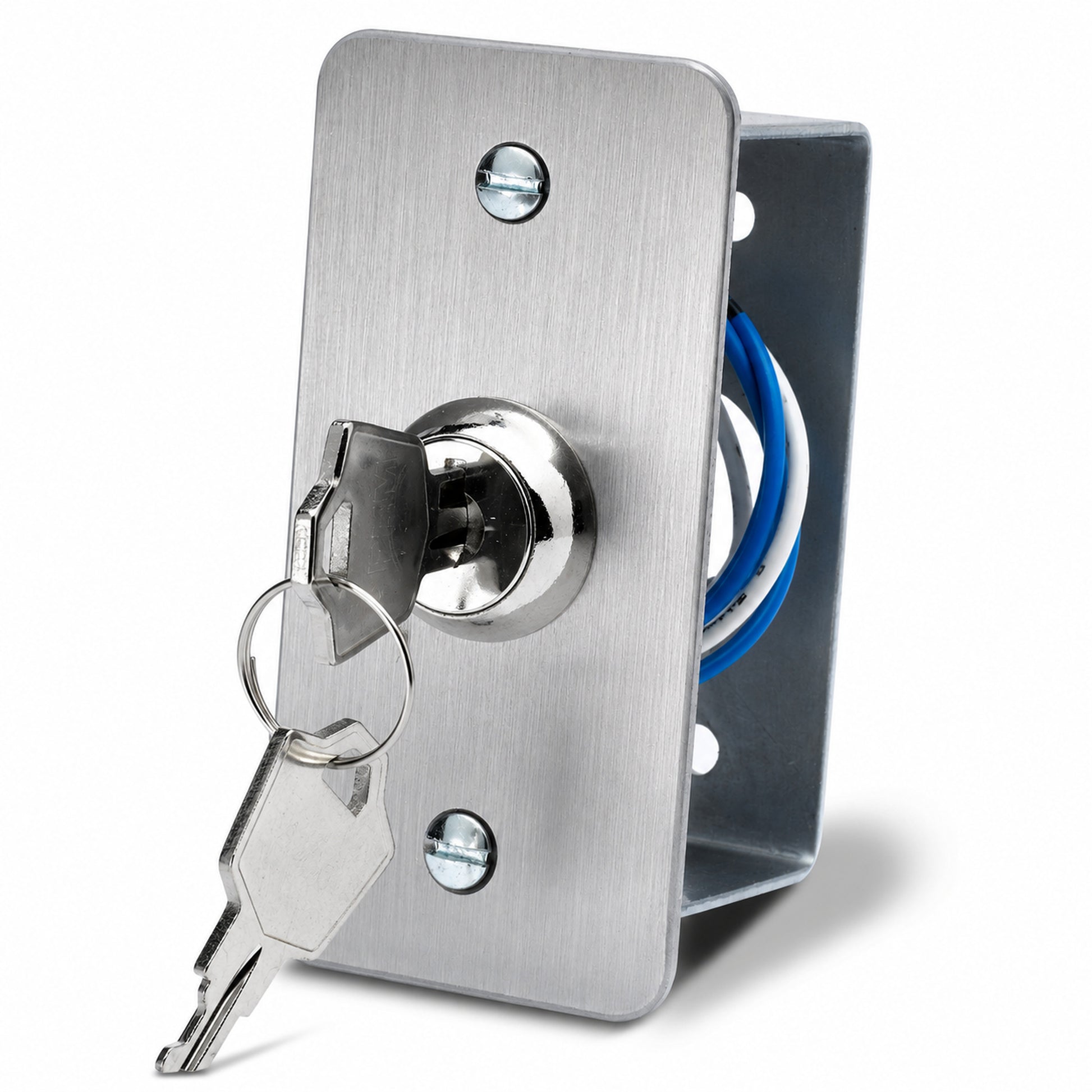

NL indicates a blank faceplate version with no engraved legend. The KS-001N-NL is the blank single pole version, while the KS-001N-NL-DP is the blank double pole version.

Can the KS-001N be used with access control systems?

Yes. The KS-001N range is designed for integration with access control systems, electric locks, magnetic locks, gate automation systems, roller shutters, barriers, and other compatible low-voltage control equipment.
