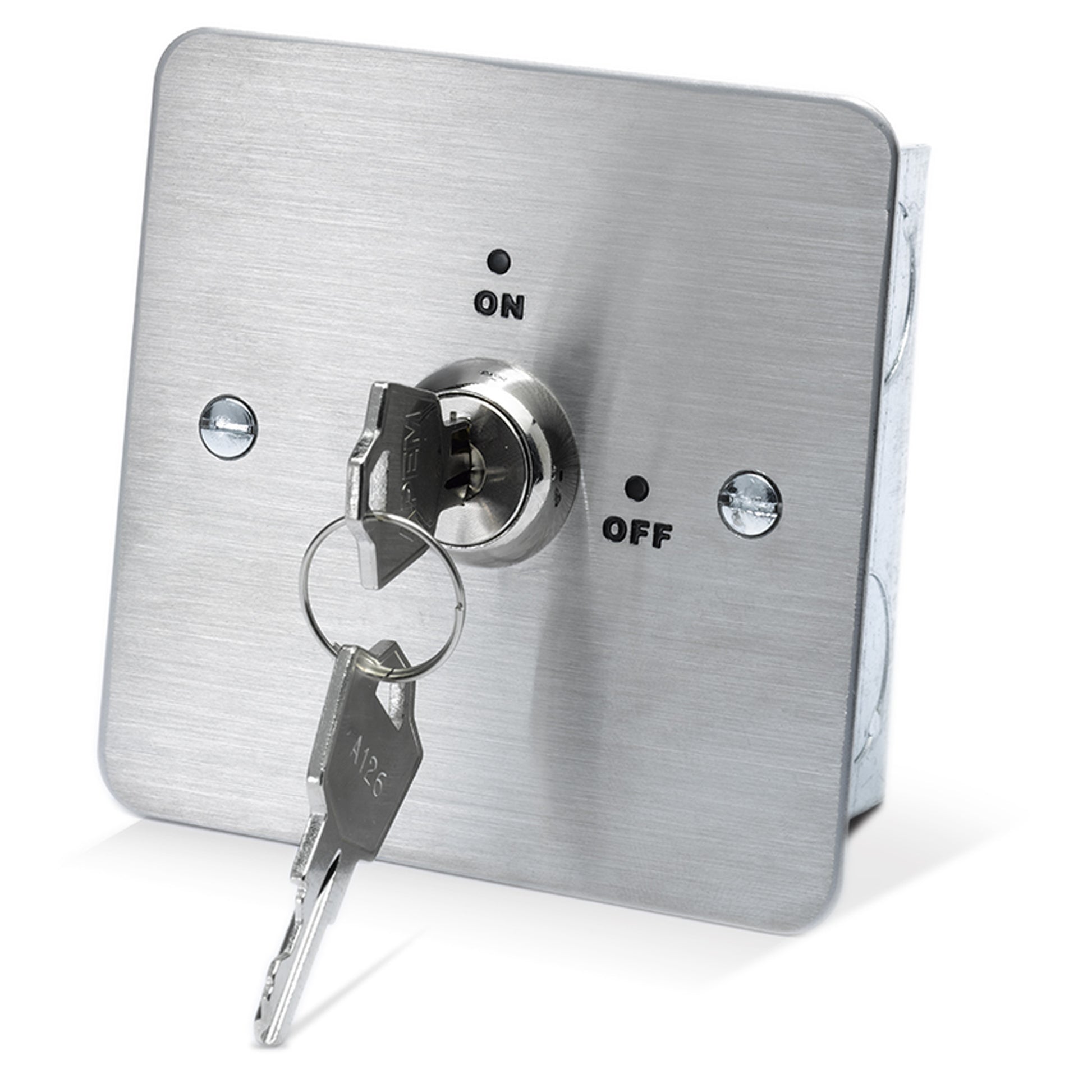

KS-001 Series Maintained Key Switch

The KS-001 Series Maintained Key Switch is a robust manual control switch designed for access control, door automation, and security system applications. Suitable for commercial, industrial, residential, educational, healthcare, and public sector environments, it provides secure keyed operation for authorised activation of doors, gates, barriers, and other controlled systems.

Manufactured with a brushed stainless steel faceplate, the KS-001 offers a professional appearance combined with long-term durability. The switch can be installed as either a flush-mounted unit or surface-mounted when used with the optional surround, making it suitable for a wide range of installation requirements.

The KS-001 range features maintained key switch operation with COM, NO, and NC contacts for flexible integration with access control systems, electric locks, magnetic locks, gate automation equipment, and building management systems. Available in single pole, double pole, 3-position versions and blank faceplate versions, the range provides flexible keyed control for a wide variety of low-voltage control applications. The key is removable in all switch positions and all units are supplied keyed alike for convenient operation across multiple installations.

Available Models

• KS-001 - Single Pole Maintained Key Switch
• KS-001-DP - Double Pole Maintained Key Switch
• KS-001-NL - Blank Single Pole Maintained Key Switch
• KS-001-NL-DP - Blank Double Pole Maintained Key Switch
• DRB-SH - Surface Surround Housing


Key Features

• Brushed stainless steel faceplate
• Single pole, double pole, blank faceplate, and 3-position versions available

• Maintained action
• Keyed alike
• Key removable in all positions
• COM / NO / NC contacts
• Flush mount installation
• Surface mount option available
• Suitable for access control systems
• Durable mechanical construction
• Professional architectural finish
• Suitable for new installations and retrofits

Typical Applications

• Access Control Systems
• Door Entry Systems
• Electric Lock Control
• Magnetic Lock (Maglock) Control
• Gate Automation Systems
• Roller Shutters
• Security Systems
• Industrial Control Panels
• Commercial Buildings
• Restricted Area Control

Compatibility

The KS-001 Maintained Key Switch is designed to integrate with a wide range of access control and automation equipment.

• Access Control Systems
• Electric Strike Locks
• Magnetic Locks (Maglocks)
• Door Controllers
• Gate Automation Systems
• Roller Shutters
• Automatic Barriers
• Intercom Systems
• Security Control Panels
• Press to Exit Buttons
• Emergency Door Release Systems
• Building Management Systems

Technical Specification

• Product Type: Key Switch
• Pole Configuration: Single pole (KS-001 / KS-001-NL) / double pole (KS-001-DP / KS-001-NL-DP / KS-001-3POS)
• Operation: Maintained
• Contacts: COM / NO / NC
• Switch Positions: 2 position maintained / 3 position maintained (KS-001N-3POS)
• Keying: Keyed Alike
• Key Release: All positions
• Faceplate Material: Brushed stainless steel
• Mounting: Flush mount or surface mount with optional surround
• Dimensions: 85mm x 85mm (H x W)

KS-001 Product Information

The KS-001 Series Maintained Narrow Key Switch provides a compact and reliable keyed control solution for access control and automation. Available in single pole, double pole, blank faceplate, and 3-position versions, the range offers flexible control options with durable stainless steel construction, keyed alike functionality, and flush or surface mounting options.

Frequently Asked Questions

What is a maintained key switch?

A maintained key switch remains in its selected position until the key is turned again, unlike a momentary switch that automatically returns to its original position.

Can the KS-001 be surface mounted?

Yes. The KS-001 can be surface mounted when used with the optional surface surround.

Is the key removable in both positions?

Yes. The key can be removed in either switch position.

What is the difference between the single pole and double pole versions?

The single pole version provides one set of COM, NO, and NC contacts, while the double pole version provides two independent sets of contacts. This allows the double pole model to switch or control two separate circuits from the same keyed operation.

What does keyed alike mean?

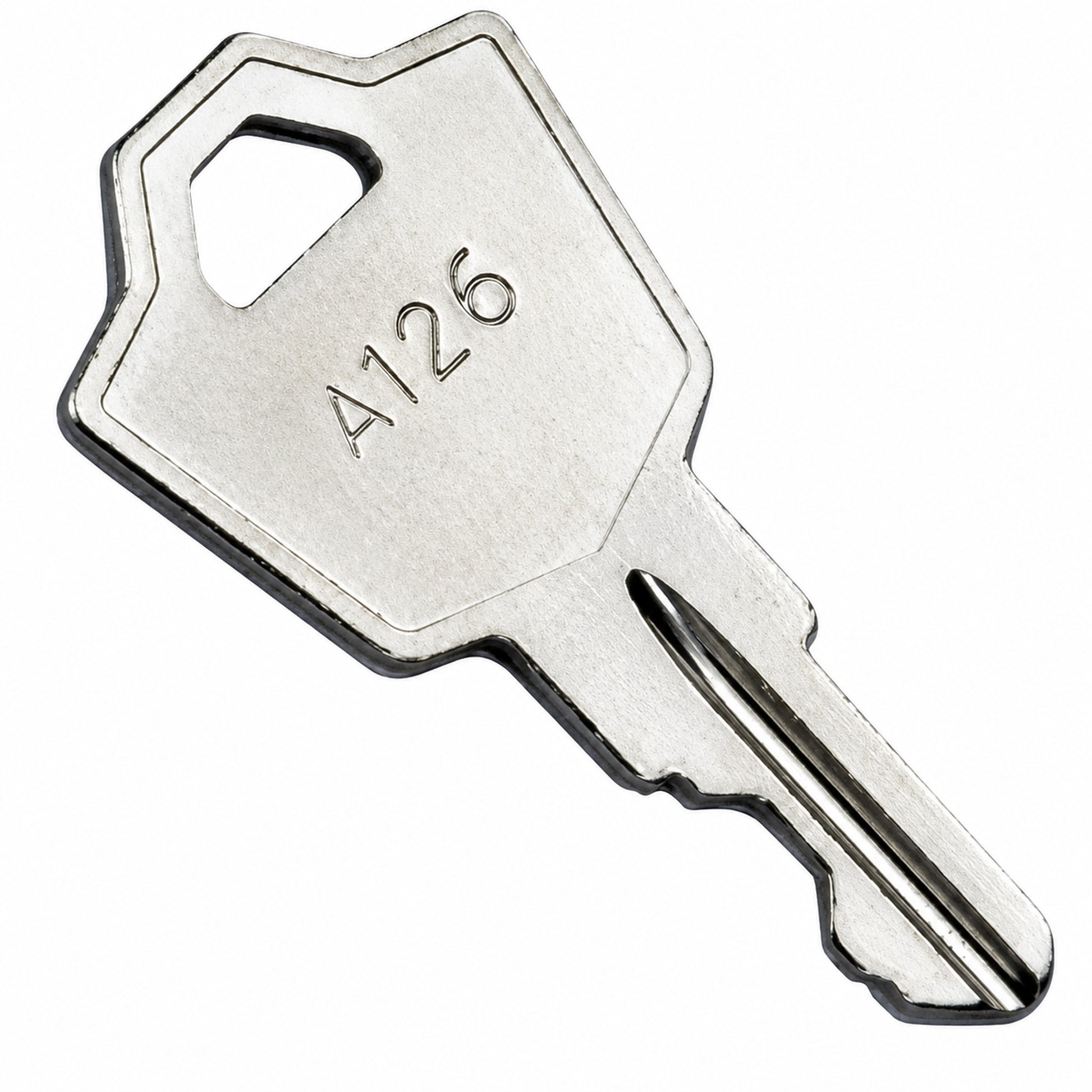

Keyed alike means multiple switches can be operated using the same key, simplifying management across larger installations.

What contact outputs are available?

The KS-001 features COM, NO, and NC contacts for flexible integration with a wide range of systems.

What is the KS-001-3POS used for?

The KS-001-3POS is a 3-position double pole key switch designed for applications where keyed control of multiple switch positions is required, such as open / off / close or similar control functions, depending on the connected equipment.

What is the difference between a maintained and momentary key switch?

A maintained key switch stays in the selected position until the key is turned again. A momentary key switch only changes state while the key is being turned and then returns automatically to its normal position.

What does NL mean on the KS-001-NL models?

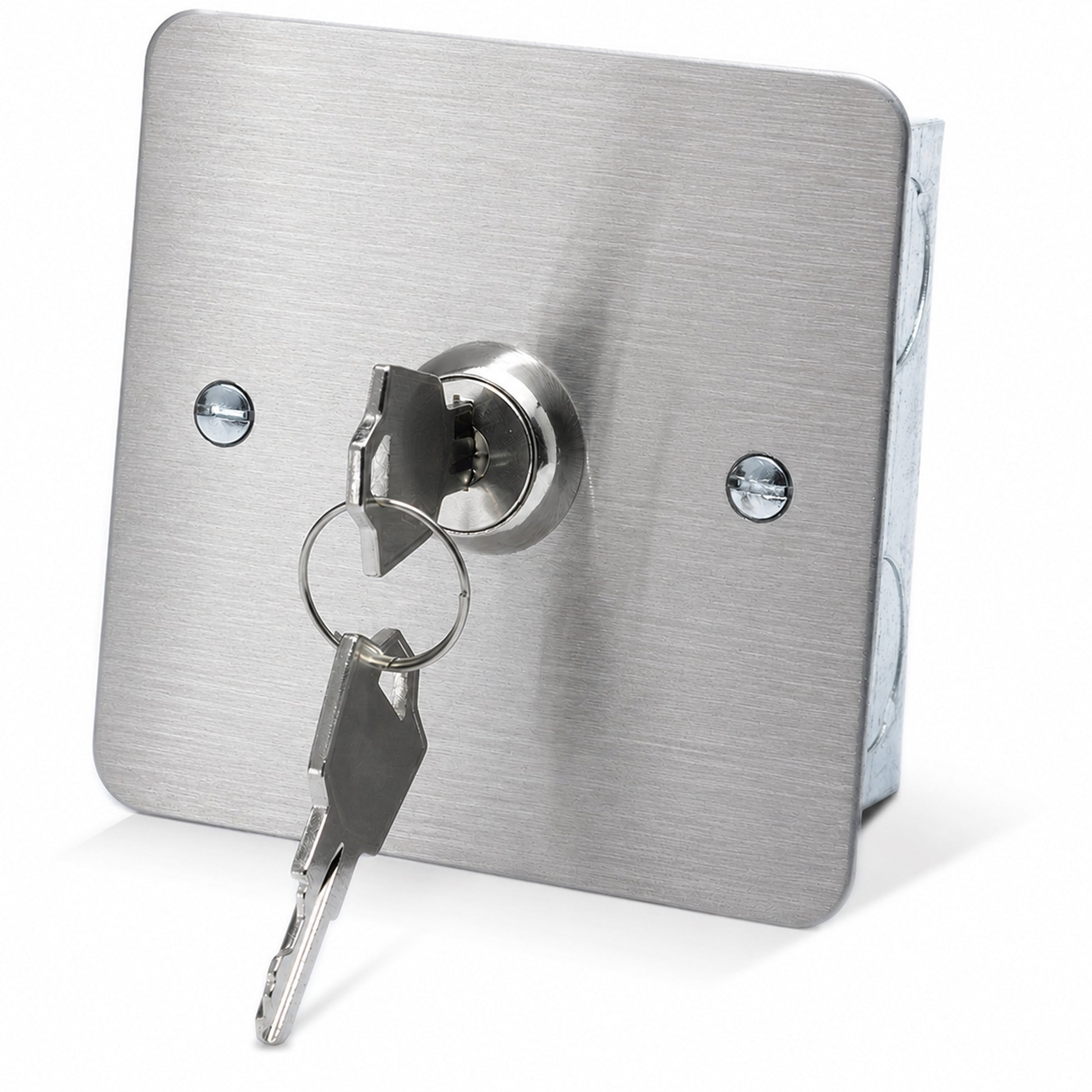

NL indicates a blank faceplate version with no engraved legend. The KS-001-NL is the blank single pole version, while the KS-001-NL-DP is the blank double pole version.

Can the KS-001 be used with access control systems?

Yes. The KS-001 is designed for integration with access control systems, electric locks, magnetic locks, gate automation systems, roller shutters, barriers, and other compatible low-voltage control equipment.
