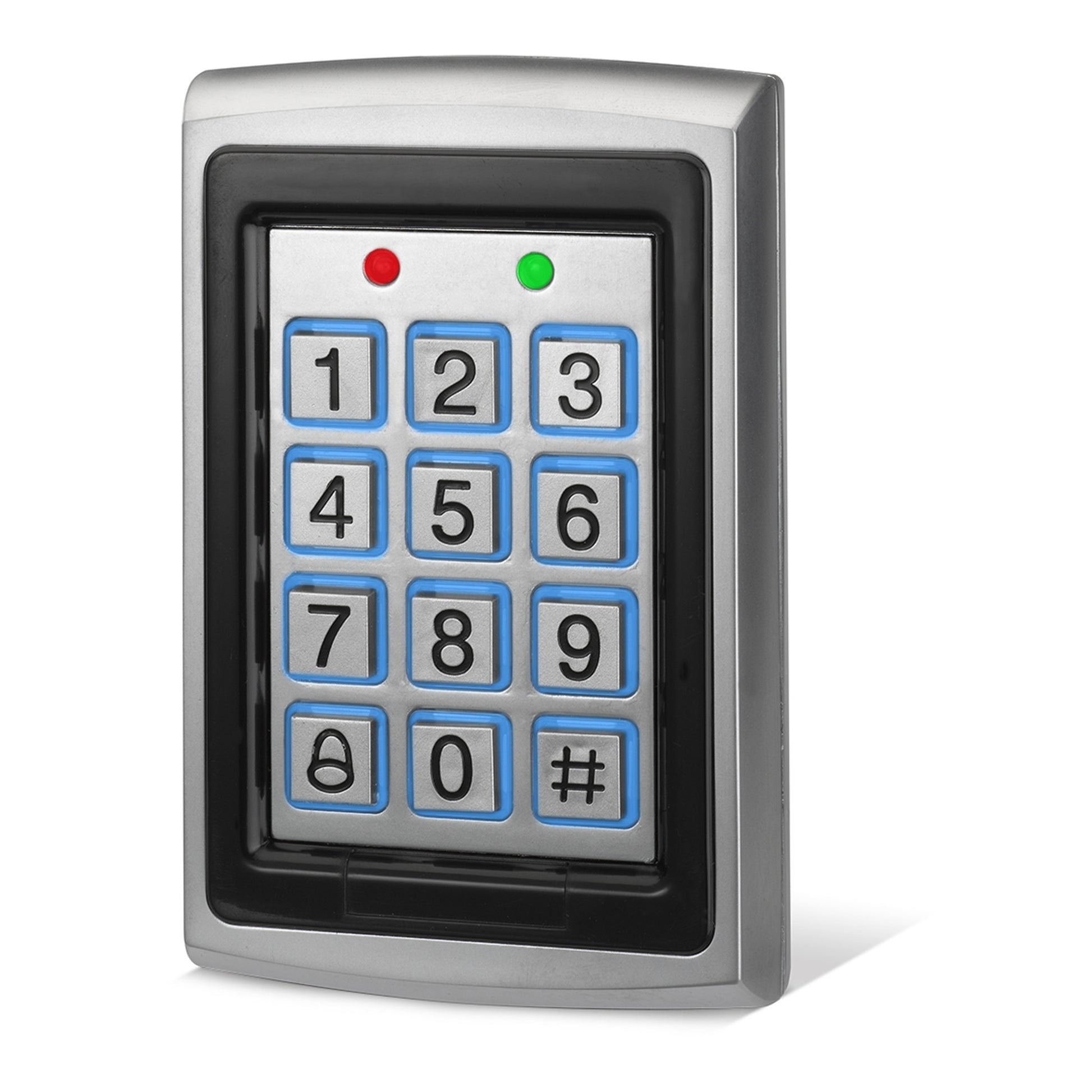

KP500 Combined Door Entry Keypad and Proximity Card Reader

The KP500 Combined Door Entry Keypad and Proximity Card Reader is a durable access control device designed for secure door entry applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, it combines PIN code entry and EM 125kHz proximity card or token reading within a single compact unit.

Manufactured with a robust die-cast metal housing, the KP500 is designed to provide reliable long-term performance in both indoor and outdoor installations. Its vandal-resistant construction and IP65 weather-resistant rating make it suitable for exposed entry points, gates, external doors, and perimeter access control applications.

The integrated backlit keypad and dual LED status indicators provide clear visual feedback and easy operation in low-light conditions. Supporting over 1000 users, the KP500 offers flexible access management for a wide range of access control systems.

Available Models

• KP500 – Combined Door Entry Keypad and Proximity Card Reader

Key Features

• Combined Keypad and Proximity Card Reader
• EM 125kHz proximity technology
• Supports 1,000+1 cards, tokens and PIN codes
• Backlit keypad
• Dual LED status indicators
• Die-cast metal housing
• IP65 weather-resistant
• Vandal-resistant construction
• Suitable for indoor and outdoor installation
• Reliable access control solution
• Compact design
• Suitable for new installations and retrofits

Typical Applications

• Access control systems
• Commercial buildings
• Office entrances
• Residential developments
• Industrial sites
• Educational facilities

• Healthcare buildings

• Gate entry systems

• Secure door access points

• Multi-user entry systems

Compatibility

The KP500 Combined Door Entry Keypad and Proximity Card Reader is designed to integrate with a wide range of access control and door security equipment.

• Access control systems

• Electric strikes

• Magnetic locks (maglocks)

• Electric bolt locks
• Automatic door operators
• Gate automation systems
• Door entry systems

• Intercom systems

• Power supplies

• Relays and timers


Technical Specification

• Product Type: Keypad and Proximity Card Reader
• Operating Voltage: 12VDC
• Keypad: Backlit
• Card Technology: EM 125kHz
• User Capacity: 1,000+1 cards, tokens and PIN codes
• Housing Material: Die-cast metal
• Protection Rating: IP65
• Indicators: Dual LED status indicators
• Dimensions: 120mm x 76mm x 27mm (H x W x D)

KP500 Product Information

KP500 User Guide

The KP500 Combined Door Entry Keypad and Proximity Card Reader provides a robust and flexible access control solution by combining PIN and proximity credential entry in a single device. Featuring IP65 weather resistance, vandal-resistant construction, a backlit keypad, and support for over 1000 users, it is ideal for demanding indoor and outdoor security installations.

Frequently Asked Questions

What is the KP500 used for?

The KP500 is used for controlling access to doors, gates, and secure areas using PIN codes, proximity cards, or tokens.

What card technology does the KP500 support?

The KP500 supports EM 125kHz proximity cards and tokens.

Is the KP500 suitable for outdoor installation?

Yes. The KP500 features an IP65 weather-resistant rating and vandal-resistant construction, making it suitable for external installations when correctly installed.

How many users can the KP500 support?

The KP500 supports over 1000 users using cards, tokens, and PIN codes.

Is the keypad illuminated?

Yes. The KP500 includes a backlit keypad for improved visibility in low-light conditions.

Can the KP500 be used with both PIN codes and proximity cards?

Yes. The KP500 supports PIN code access as well as EM 125kHz proximity cards and tokens, allowing flexible access control for different users and installation requirements.

Can the KP500 be used with electric locks and magnetic locks?

Yes. The KP500 is designed for integration with electric locks, magnetic locks, access control systems, door entry systems, power supplies, relays, and other compatible door security equipment.
