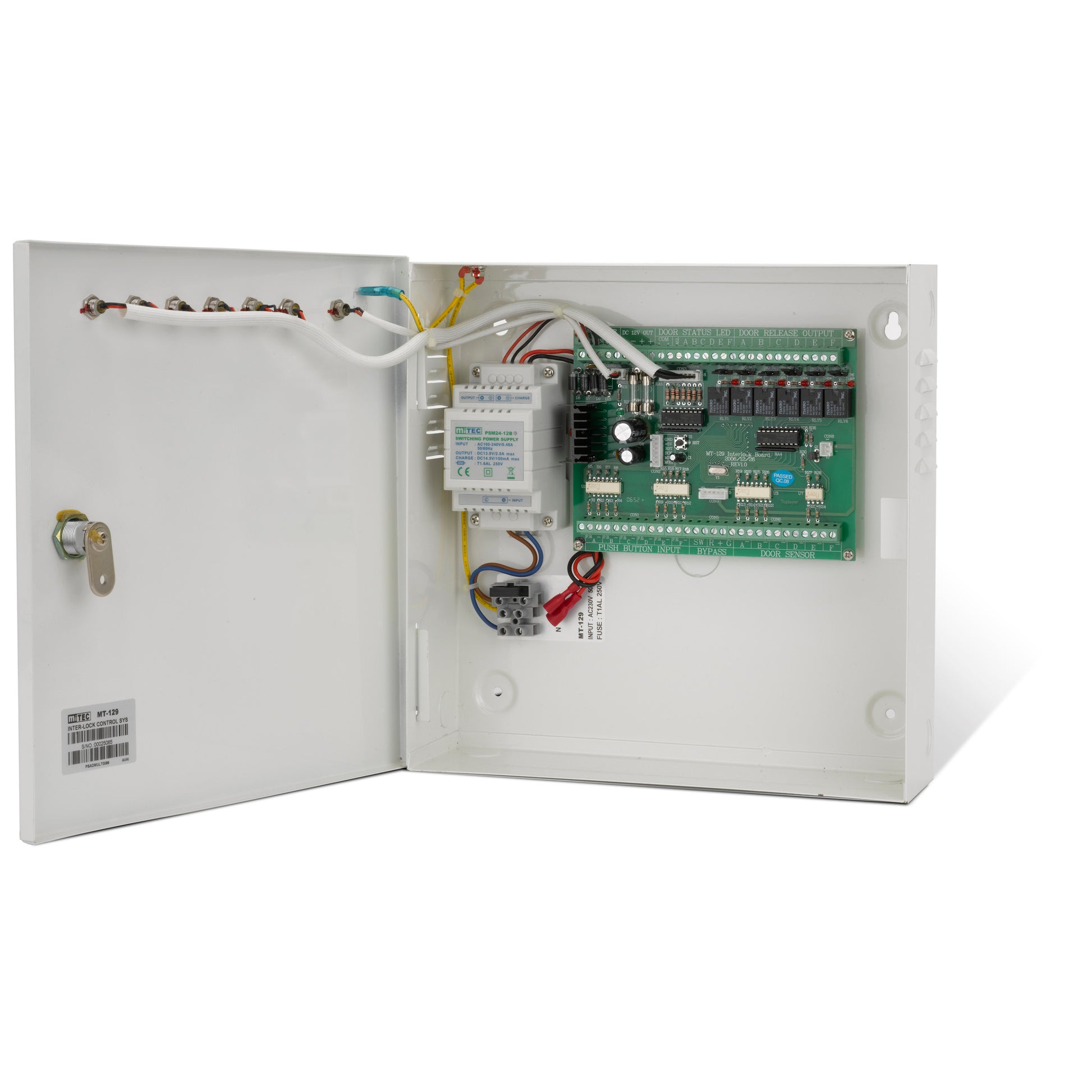

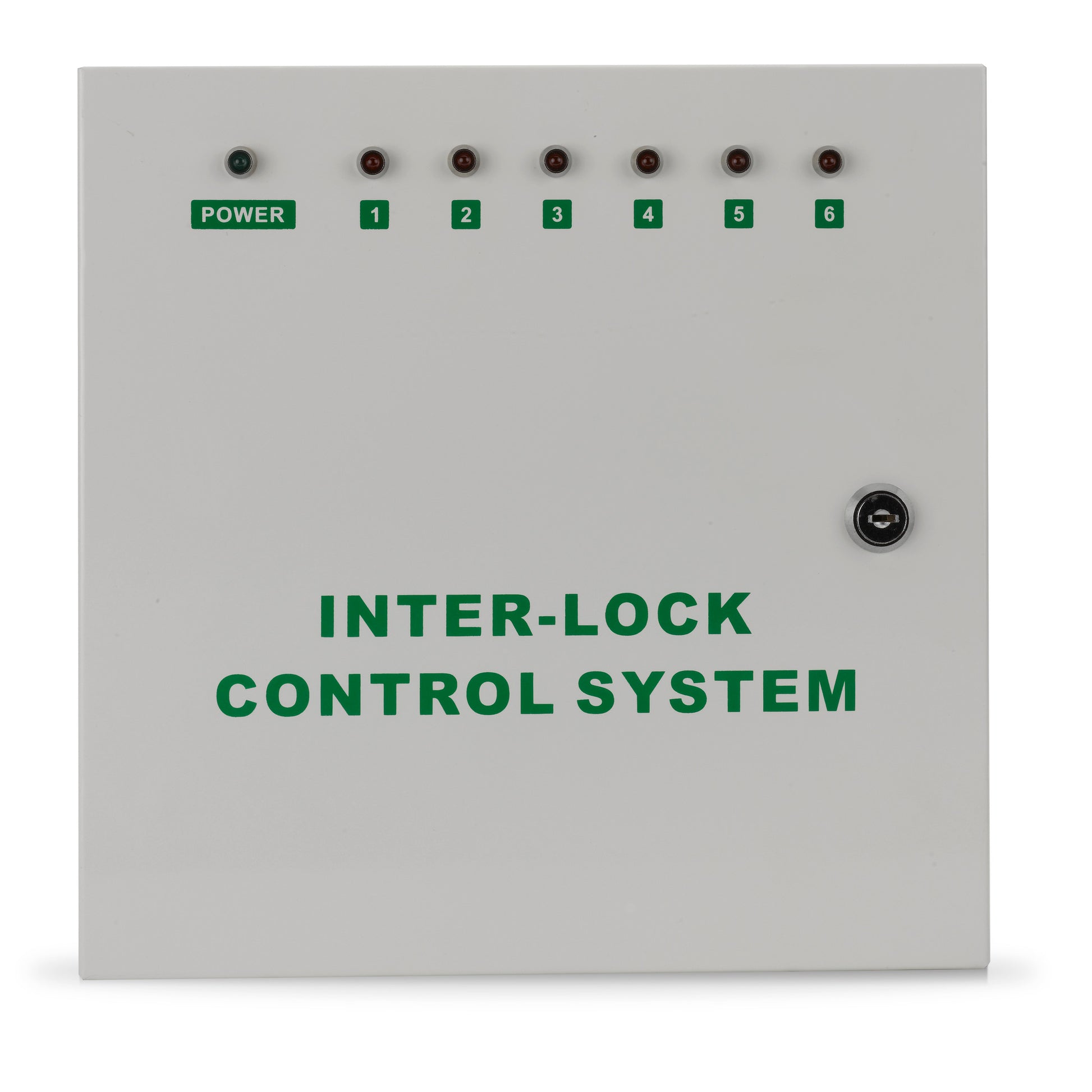

ILM600 6 Door Interlock Control System

The ILM600 6 Door Interlock Control System is a multi-door access control unit designed to manage up to six doors within a controlled interlocking environment. Suitable for commercial, industrial, healthcare, educational, pharmaceutical, and high-security facilities, it provides reliable control of multiple access points whilst preventing simultaneous door operation where security protocols require controlled movement between restricted areas.

Door interlocking is commonly used in secure environments where access between different zones must be carefully controlled. The ILM600 ensures that doors operate in a coordinated sequence, preventing unauthorised movement between secure areas and helping maintain environmental, security, and operational integrity.

Operating from a 230VAC mains supply, the ILM600 provides a regulated 12VDC 5A output for powering connected locking devices and access control equipment. The system can operate as either an automatic interlock controller or a manual six-door control system, offering flexibility for a wide range of installation requirements. An integrated battery charging circuit allows connection of standby batteries to maintain operation during power failures.

Available Models

• ILM600 – 6 Door Interlock Control System

Key Features

• Controls up to 6 doors
• 230VAC mains input
• Regulated 12VDC 5A output
• Automatic interlock operation
• Manual 6-door control functionality
• Integrated battery charging circuit
• Suitable for access control systems
• Supports multi-door interlocking configurations
• Reliable relay-based switching
• Designed for continuous operation
• Suitable for new installations and upgrades

Typical Applications

• Access control systems
• Commercial buildings
• Industrial facilities
• Healthcare environments
• Laboratories
• Clean rooms
• Data centres
• Secure entry vestibules
• Multi-door security zones
• Restricted access areas

Compatibility

The ILM600 Door Interlock Control System is designed to integrate with a wide range of access control and security equipment.

• Access control systems
• Door entry systems
• Intercom systems
• Keypad systems
• Proximity card readers
• Electric locks
• Magnetic locks (maglocks)
• Press to exit buttons
• Emergency door release units
• Power supplies
• Building management systems


Technical Specification

• Product Type: Door Interlock Control System
• Power Input: 230VAC
• Power Output: 12VDC 5A
• Door Capacity: Up to 6 Doors
• Control Mode: Automatic interlock or manual 6-door control
• Battery Charging: Integrated charging circuit
• Dimensions: 185mm x 230mm x 70mm (H x W x D)

ILM600 Product Information

The ILM600 6 Door Interlock Control System provides a robust and reliable solution for controlling multiple access-controlled doors within secure environments. Supporting up to six doors, with automatic or manual operation modes and integrated battery charging capability, it is ideal for installations requiring dependable multi-door interlocking and coordinated access control.

Frequently Asked Questions

What is a door interlock control system?

A door interlock control system manages multiple doors to ensure they operate in a controlled sequence, preventing unauthorised simultaneous access between secured areas.

How many doors can the ILM600 control?

The ILM600 can manage and control up to six doors.

What power supply does the ILM600 use?

The system operates from a 230VAC mains input and provides a regulated 12VDC 5A output.

Does the ILM600 support battery backup?

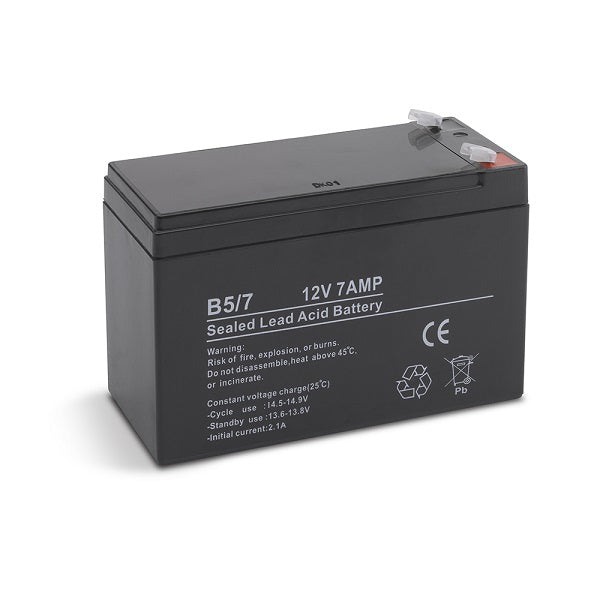

Yes. The unit includes an integrated battery charging circuit for connection to suitable standby batteries

Can the ILM600 be used as a manual controller?

Yes. The ILM600 can operate as both an automatic interlock controller and a manual six-door control system.

Can the ILM600 be used with access control systems?

Yes. The ILM600 is designed for integration with access control systems, electric locks, magnetic locks, keypads, proximity readers, press to exit buttons, emergency door release units, and other compatible door security equipment.

What applications is the ILM600 suitable for?

The ILM600 is suitable for commercial buildings, healthcare facilities, laboratories, clean rooms, data centres, industrial sites, and other environments requiring controlled multi-door access.

What is the difference between the ILM200 and ILM600?

The ILM200 is a compact module for controlling a two-door interlock system. The ILM600 is a larger control system designed to manage up to six doors, with automatic interlock operation, manual six-door control functionality, a 12VDC 5A output, and an integrated battery charging circuit.
