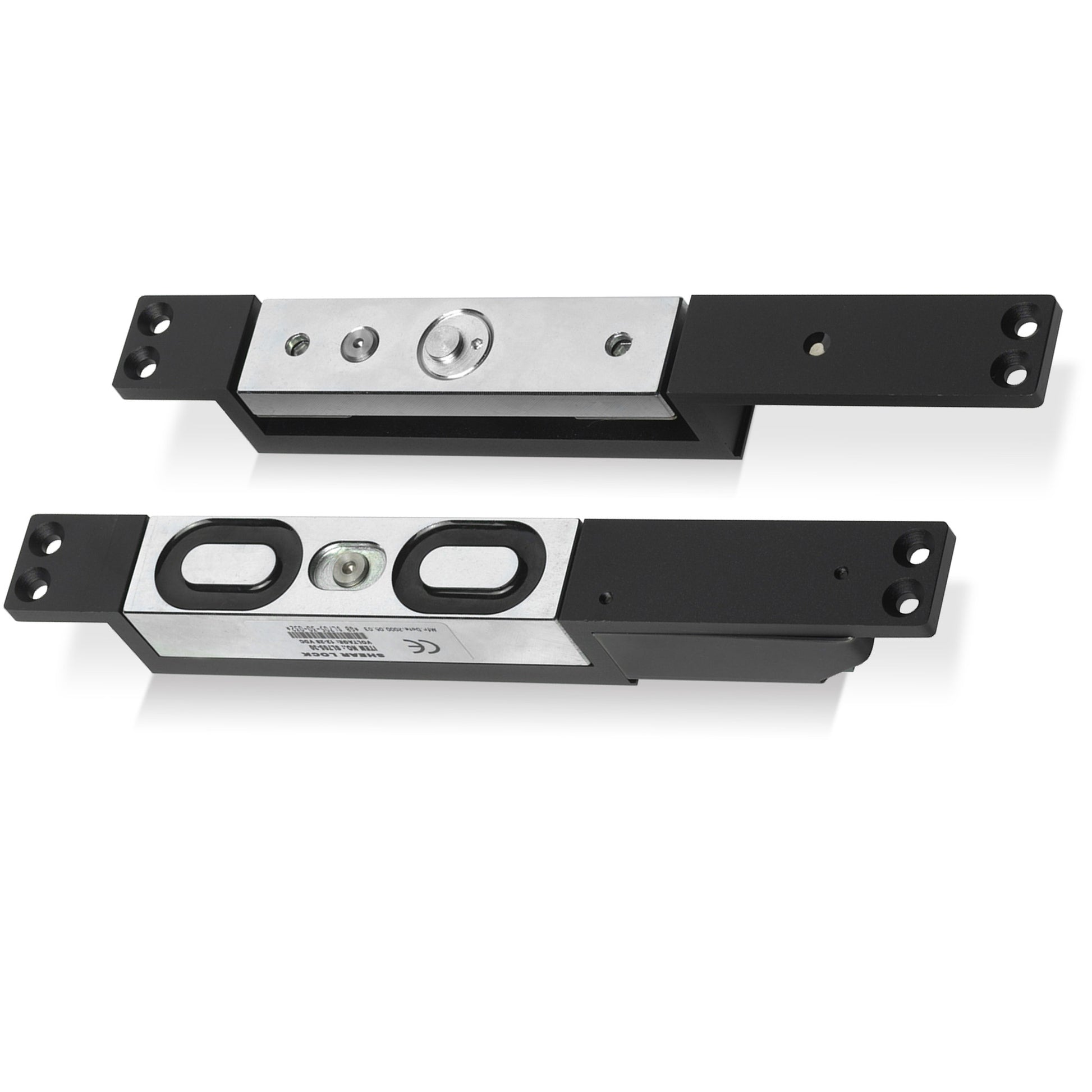

GS705-30 / GS705-35 Magnetic Shear Lock (Maglock)

The GS705 Series Magnetic Shear Lock is a high-security electromagnetic locking solution designed for use with access control systems, door entry systems, intercom systems, and electronic door security applications. It is suitable for commercial, educational, healthcare, residential, industrial, and public sector environments where a strong and reliable locking solution is required.

Unlike standard magnetic locks that rely purely on direct magnetic holding force, shearlocks combine electromagnetic attraction with a mechanical shear action to provide increased resistance to forced entry. When the door is closed, the armature plate aligns with the lock body and the electromagnetic field secures the door while the shear design prevents lateral movement under load.

Operating on a 12VDC or 24VDC power supply, the GS705 delivers a holding force of up to 2700lbs (1226kg) in shear, making it suitable for high-security applications. The design provides a strong, stable locking action with a compact form factor suitable for concealed or semi-concealed installation depending on frame configuration.

Available Models

• GS705-30 - 30mm Width Magnetic Shear Lock (Maglock)
• GS705-35 - 35mm Width Magnetic Shear Lock (Maglock)

Key Features

• High-security shear magnet lock (maglock)
• Operating voltage 12VDC or 24VDC
• Holding force up to 2700lbs (1226kg) in shear
• Adjustable locking time delay (1–6 seconds)
• Suitable for access control systems
• Fail-safe operation
• High-strength electromagnetic locking
• Suitable for high-traffic door applications
• Reliable and consistent performance
• Available in 30mm or 35mm width options

Typical Applications

• Access control systems
• Commercial buildings
• Office entrances
• Industrial facilities
• Healthcare premises
• Educational facilities
• Residential developments
• Public buildings
• High-security internal doors
• Restricted access areas

Compatibility

The GS705 series is designed to integrate with a wide variety of electronic security and access control equipment.

• Access control systems
• Door entry systems
• Intercom systems

• Keypad entry systems
• Proximity card readers
• Emergency door release units
• Press to exit buttons
• Relays and Timers
• Power supplies
• Building management systems


Technical Specification

• Product Type: Magnetic Shear Lock (Maglock)
• Operating Voltage: 12VDC or 24VDC
• Holding Force: Up to 2700lbs (1226kg) in shear
• Locking Time Delay: 1–6 seconds
• Width Options: 30mm or 35mm
• Operation: Fail-Safe
• Dimensions: 267mm x 30mm x 40mm / 267mm x 35mm x 40mm (H x W x D)

GS705 Product Information

The GS705 Magnetic Shear Lock provides a high-security electromagnetic locking solution for access control applications. With a holding force of up to 2700lbs (1226kg) in shear, adjustable delay settings, and compatibility with a wide range of access control systems, it is designed for demanding installations requiring strong and reliable door security.

Frequently Asked Questions

What is a magnetic shear lock?

A magnetic shear lock combines electromagnetic locking with a mechanical shear action to provide higher resistance to forced entry compared to standard magnetic locks.

What is the holding force of the GS705?

The GS705 provides a holding force of up to 2700lbs (1226kg) in shear.

What voltage does the GS705 operate on?

he GS705 operates from a 12VDC or 24VDC power supply.

Does the GS705 have a locking delay?

Yes. The GS705 includes an adjustable locking time delay between 1 and 6 seconds.

What is the difference between the GS705-30 and GS705-35?

The GS705-30 has a 30mm wide lock body, while the GS705-35 has a 35mm wide lock body. Both versions provide the same high-security shear locking performance, adjustable locking delay, and 12VDC or 24VDC operation.

Is the GS705 fail-safe?

Yes. The GS705 is fail-safe and will release when power is removed.

What width options are available?

The GS705 is available in 30mm or 35mm width options.
