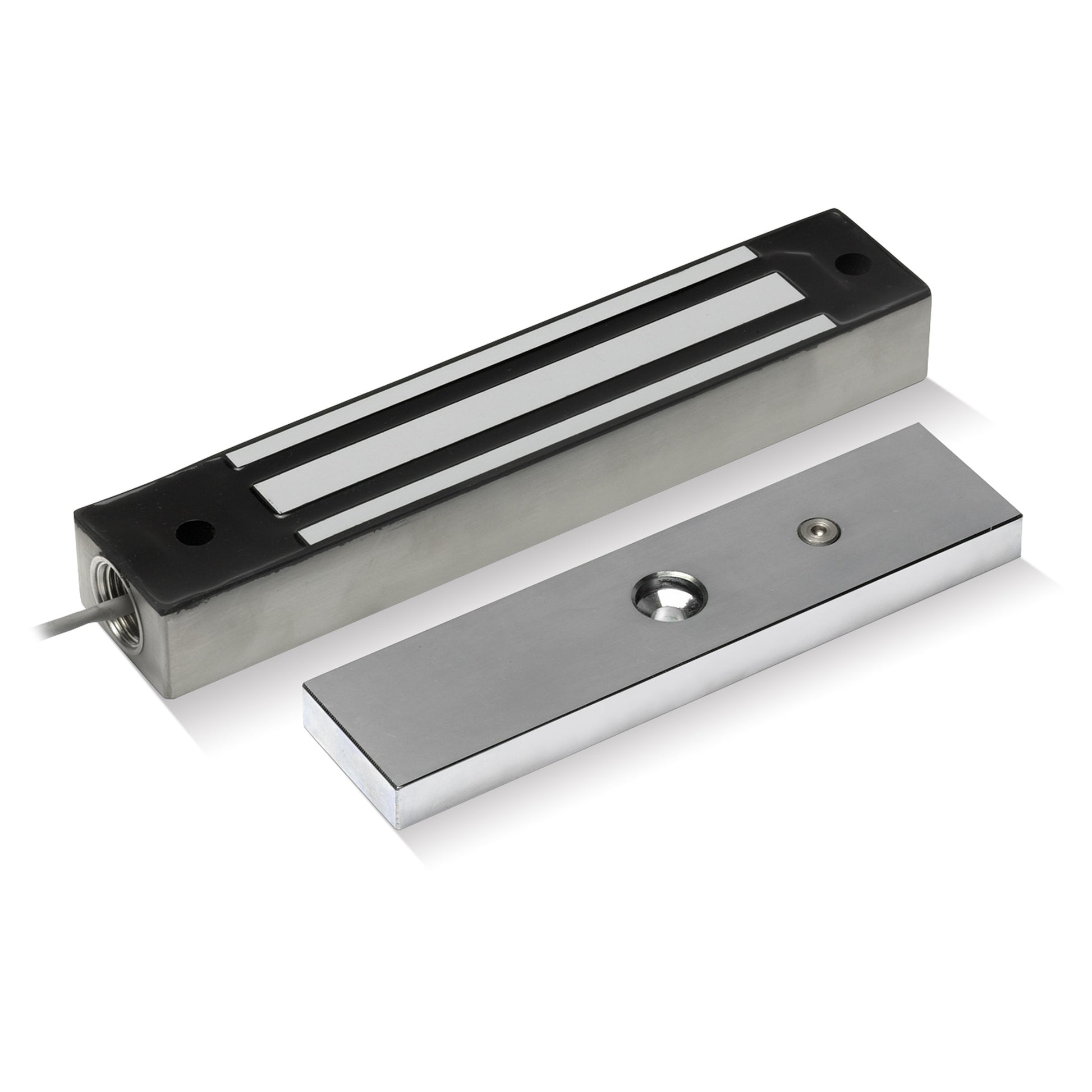

GL850R Midi Stainless Steel External Magnetic Lock (Maglock)

The GL850R Midi Stainless Steel External Magnetic Lock is a robust electromagnetic locking solution designed for access control systems, gate automation, perimeter security, and external door applications. Suitable for commercial, industrial, residential, and public sector environments, it provides reliable locking performance in demanding outdoor conditions.

An electromagnetic lock, magnetic lock, or maglock consists of an electromagnet mounted to a fixed surface and a corresponding armature plate mounted to the door or gate. When power is applied, the electromagnet generates a magnetic field that securely bonds the armature plate to the lock body, creating a strong locking force. When power is removed, the magnetic bond releases immediately, allowing safe and unrestricted access.

Manufactured from durable stainless steel and designed specifically for external applications, the GL850R features an IP67 weather-resistant rating and vandal-resistant construction. Delivering a holding force of up to 800lbs (363kg), it provides dependable security for external doors, gates, and perimeter access points. The face-fix mounting design makes it particularly suitable for installations where conventional magnetic lock mounting methods are not practical.

Available Models

• GL850R - Midi Stainless Steel External Magnetic Lock

Key Features

• Midi magnetic lock (maglock)
• Operating voltage 12VDC
• Holding force up to 800lbs (363kg)
• Stainless steel construction
• Face-fix mounting
• IP67 weather-resistant rating
• Vandal-resistant design
• Fail-safe operation
• Suitable for external applications
• Suitable for doors and gates
• Reliable long-term performance

Typical Applications

• External access control doors
• Security gates
• Perimeter security systems
• Commercial buildings
• Industrial facilities
• Apartment entrances
• Utility compounds
• Public buildings
• Restricted access areas
• Outdoor security installations

Compatibility

The GL850R is designed to integrate with a wide range of electronic security and access control equipment.

• Access control systems
• Door entry systems
• Intercom systems

• Keypad entry systems
• Gate automation systems
• Proximity card readers
• Building management systems
• Power supplies
• Door monitoring systems
• Security control systems


Technical Specification

• Product Type: Midi Stainless Steel External Magnetic Lock (Maglock)
• Operating Voltage: 12VDC
• Holding Force: Up to 800lbs (363kg)
• Operation: Fail-Safe
• Mounting Type: Face Fix
• Material: Stainless steel
• Environmental Rating: IP67
• Construction: Vandal-resistant
• Dimensions: 45mm x 232mm x 30mm (H x W x D)

GL850R Product Information

The GL850R Midi Stainless Steel External Magnetic Lock provides a reliable and weather-resistant locking solution for external access control and perimeter security applications. Featuring an 800lb holding force, IP67 protection, vandal-resistant construction, and face-fix mounting, it is ideal for doors, gates, and outdoor security installations requiring dependable electromagnetic locking.

Frequently Asked Questions

What is the GL850R used for?

The GL850R is used to secure external doors, gates, and access-controlled entrances in commercial, industrial, residential, and public sector environments.

What holding force does the lock provide?

The lock provides a holding force of up to 800lbs (363kg).

Is the GL850R suitable for outdoor use?

Yes. The lock features an IP67 weather-resistant rating and stainless steel construction, making it suitable for external installations when correctly installed.

What mounting method does the GL850R use?

The GL850R is designed for face-fix mounting applications.

Is the lock vandal resistant?

Yes. The lock features a vandal-resistant design suitable for exposed security installations.

Is the GL850R fail-safe?

Yes. The lock is fail-safe, meaning it automatically releases when power is removed.

What does face-fix mounting mean?

Face-fix mounting means the magnetic lock is fixed directly to the face of the frame or structure, making it suitable for external doors, gates, and installations where conventional overhead magnetic lock mounting is not practical.

Can the lock be used with access control systems?

Yes. The GL850R is compatible with access control systems, gate automation equipment, intercoms, card readers, keypads, and other electronic security equipment.
