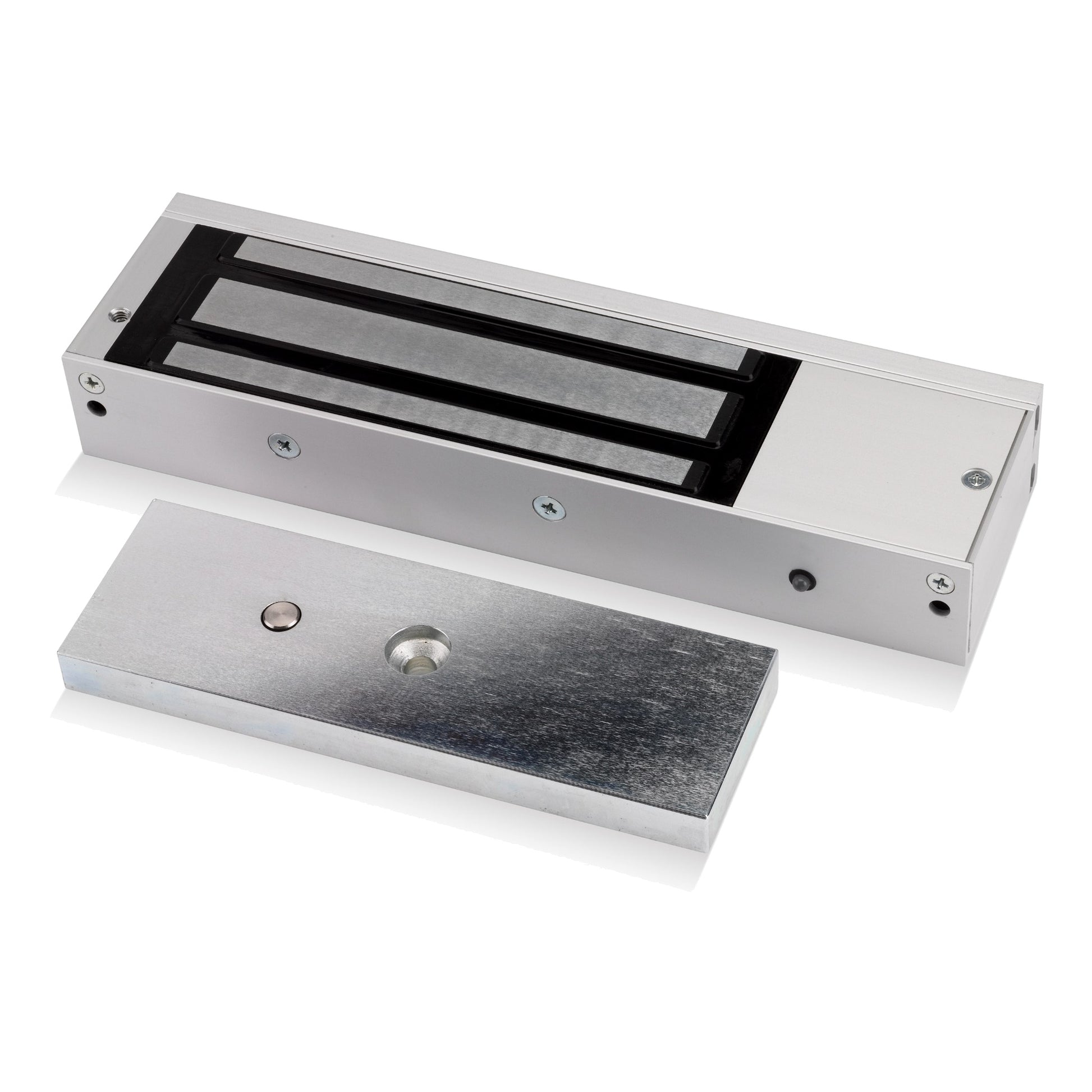

FR-U10020 / FR-U10020DSU Fire Rated Monitored Standard Magnetic Lock (Maglock)

The FR-U10020 Series Monitored Standard Magnetic Locks (Maglocks) are high-performance fire rated electromagnetic locking solutions designed for use with access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide secure and reliable locking for access-controlled doors.

Operating from selectable 12VDC or 24VDC power supplies, the FR-U10020 Series delivers up to 1200lbs (544kg) of holding force, making it suitable for applications requiring enhanced door security and dependable locking performance.

Both models include lock status monitoring with an output for connection to compatible access control systems. Each lock also features LED lock status indication, showing green when unlocked and red when locked. The FR-U10020DSU model additionally includes a door status output.

Both the FR-U10020 and FR-U10020DSU models have been fire tested to BS EN 1634-1 and are suitable for installation on FD30 and FD60 fire doors.

Available Models

• FR-U10020 – Fire Rated Monitored Standard Magnetic Lock
• FR-U10020DSU – Fire Rated Monitored Standard Magnetic Lock with Door Status Output

Key Features

• Standard Monitored Magnetic Lock Design
• Fire Rated
• Up to 1200lbs (544kg) Holding Force
• Selectable 12VDC or 24VDC Operation
• Fail Safe Operation (Power to Lock)
• Aluminium Lock Housing
• Electroless Nickel Plated Armature Plate
• Monitored lock output
• LED Lock Status Indication
• Door Status Output (FR-U10020DSU Only)
• Fire Tested to BS EN 1634-1
• Suitable for FD30 and FD60 Fire Doors
• Suitable for Access Control Applications
• Reliable Electromagnetic Locking

Typical Applications

• Access Control Doors
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Premises
• Public Buildings
• Restricted Access Areas
• Staff Access Doors
• Fire Door Installations
• Internal Security Doors

Compatibility

The FR-U10020 range is designed to integrate with a wide range of door security and life safety equipment.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Emergency Door Release Units
• Power Supplies
• Relays and Timers
• Door Monitoring Systems

Technical Specification

• Lock Type: Fire Rated Monitored Standard Magnetic Lock
• Operation: Fail Safe (Power to Lock)
• Operating Voltage: Selectable 12VDC or 24VDC
• Holding Force: Up to 1200lbs (544kg)
• Lock Monitoring: Monitored (All Models)
• Door Status Output: FR-U10020DSU Only
• Lock Status LED: All Models (Green Unlocked / Red Locked)
• Housing Material: Aluminium
• Armature Plate: Electroless Nickel Plated Steel
• Fire Rating: Tested to BS EN1634-1
• Suitable Fire Doors: FD30 & FD60
• Dimensions: 67mm x 268mm x 40mm (H x W x D)

FR-U10020 / FR-U10020DSU Product Information

The FR-U10020 Series Monitored Standard Magnetic Locks provide a secure and reliable locking solution for fire-rated access control installations requiring high holding force and dependable door security. They are ideal for commercial, industrial, and public sector applications where a durable monitored magnetic lock is required for compatible FD30 and FD60 fire doors.

Frequently Asked Questions

What is a Monitored Magnetic Lock?

A monitored magnetic lock provides a lock monitoring output for connection to compatible access control systems, allowing the system to monitor the lock status. FR-U10020DSU model additionally provide a door status output to indicate whether the door is open or closed.

What is the Holding Force of the FR-U10020 Magnetic Lock?

The FR-U10020 Series provides a holding force of up to 1200lbs (544kg), making it suitable for a wide range of commercial and industrial access control applications.

What Does Fail Safe Operation Mean?

Fail safe operation means the magnetic lock requires power to remain locked. If power is removed due to a fire alarm activation, emergency release, or power failure, the lock automatically releases to allow safe exit.

Are the FR-U10020 Models Suitable for Fire Doors?

Yes. The FR-U10020 and FR-U10020DSU models have been tested to BS EN 1634-1 and are suitable for installation on compatible FD30 and FD60 fire doors.

What Is the Difference Between the FR-U10020 and FR-U10020DSU?

The FR-U10020 and FR-U10020DSU are both monitored standard magnetic locks with LED lock status indication. The FR-U10020DSU additionally includes a door status output for connection to compatible access control systems.

Can the FR-U10020 Series Be Used with Access Control Systems?

Yes. The FR-U10020 Series is compatible with access control systems, door entry systems, intercoms, card readers, keypads, emergency door release units, and other electronic door security equipment.

Why Choose a Magnetic Lock?

Magnetic locks offer reliable fail safe locking, high holding force, minimal moving parts, and long service life, making them a popular choice for access control and electronic door security installations.
