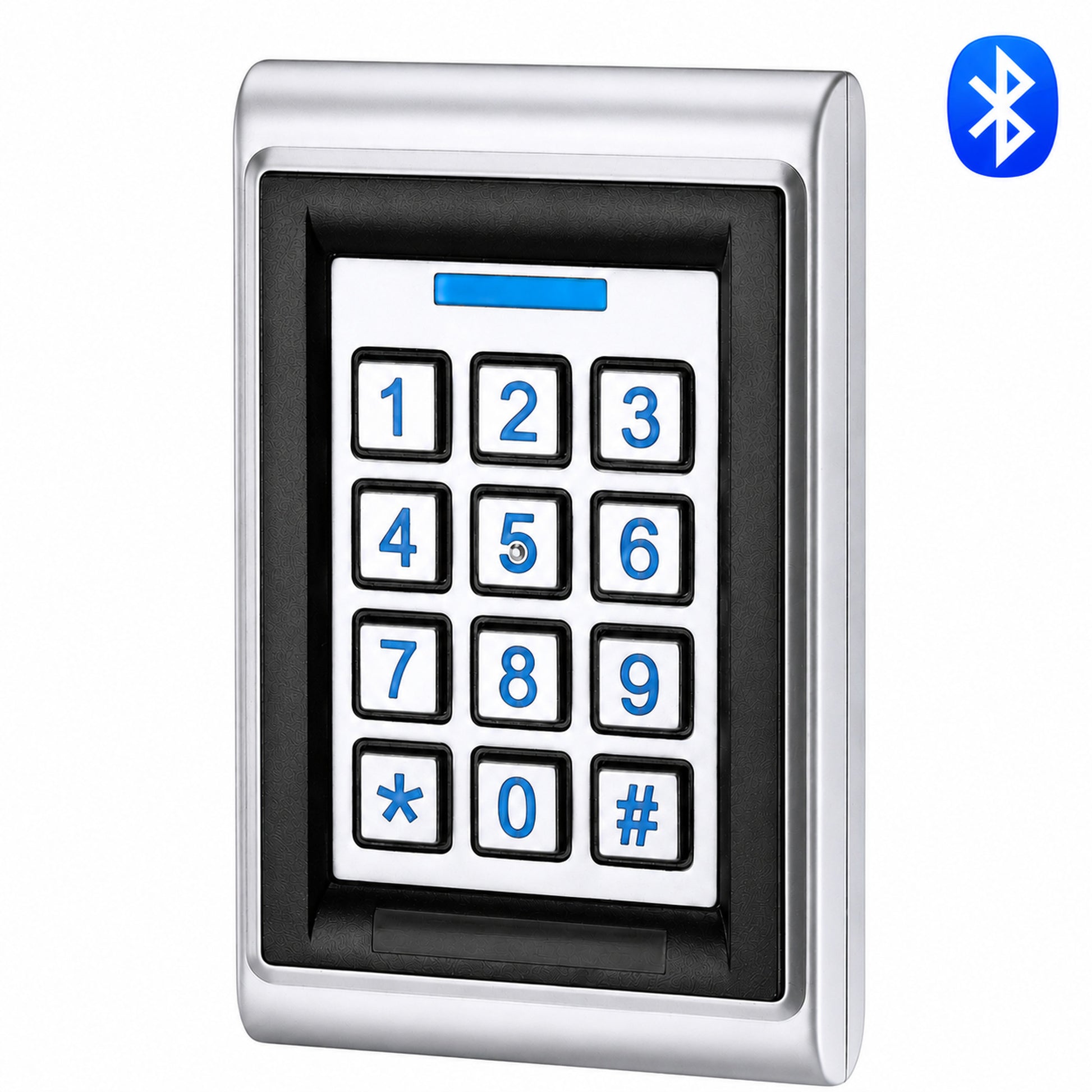

DG800+ Door Entry Combined Proximity Reader, Keypad with Bluetooth Access Control

The DG800+ Combined Proximity Reader, Keypad and Bluetooth Access Control Reader is a versatile standalone access control solution designed for use with electric locks, magnetic locks (maglocks), electric strikes, automatic doors, gate automation systems, and door entry applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, it provides secure access control using PIN codes, proximity credentials, Bluetooth connectivity or a combination of access methods.

Operating from a 12-24VDC power supply, the DG800+ combines multiple authentication technologies within a single compact unit. The integrated EM 125kHz proximity reader provides convenient contactless access, while the backlit keypad allows secure PIN code entry in all lighting conditions. Bluetooth connectivity adds additional flexibility for modern access control installations, enabling wireless credential management and access functionality where supported.

Manufactured from durable die-cast aluminium and featuring an IP65 weather-resistant rating, the DG800+ is suitable for both internal and external installations. Its vandal-resistant construction provides enhanced protection against tampering and damage, making it ideal for demanding commercial and public-facing environments.

Available Models

• DG800+ – Combined Proximity Reader, Keypad and Bluetooth Access Control Reader

Key Features

• 12-24VDC operating voltage
• Combined Proximity Reader, Keypad and Bluetooth Access
• EM 125kHz proximity reader technology
• Bluetooth connectivity
• Backlit keypad for low-light operation
• Two LED status indicators
• Audible indication and user feedback
• Weather-resistant IP65 construction
• Vandal-resistant design
• Durable die-cast aluminium housing
• Suitable for internal and external installations
• Standalone access control operation
• Modern multi-credential access solution

Typical Applications

• Access control doors
• Office entrances
• Commercial buildings
• Residential developments
• Schools and educational facilities
• Healthcare premises
• Staff access areas
• Internal security doors
• Gate automation systems
• Restricted access areas

Compatibility

The DG800+ Combined Proximity Reader, Keypad and Bluetooth Access Control Reader is designed to integrate with a wide range of access control and security equipment, making it suitable for both new installations and retrofit projects.

• Access control systems

• Electric strikes

• Magnetic locks (maglocks)

• Electric bolt locks
• Automatic door operators
• Gate automation systems
• Door entry systems

• Intercom systems

• Power supplies

• Relays and Timers

Technical Specification

• Operating Voltage: 12-24VDC
• Material: Die-Cast Aluminium
• Access Methods: Bluetooth, PIN Code and Proximity Credential
• Reader Technology: EM 125kHz
• Keypad Type: Backlit Keypad
• Status Indicators: 2 LED Indicators
• Audible Indication: Integrated Sounder
• Protection Rating: IP65
• Construction: Vandal Resistant
• Dimensions: 120mm x 76mm x 21mm (H x W x D)

DG800+ Product Information

The DG800+ Bluetooth Access Control Reader and Keypad provides a secure and flexible access control solution for applications requiring Bluetooth, PIN code, and proximity credential authentication. Featuring Bluetooth connectivity, EM 125kHz proximity technology, a backlit keypad, and a vandal-resistant IP65-rated housing, it is ideal for commercial, industrial, residential, educational, and public sector access control installations.

Frequently Asked Questions

What is the DG800+ used for?

The DG800+ is a standalone access control device that combines Bluetooth, proximity card, and PIN code access methods to control doors, gates, and other secured entry points.

Does the DG800+ support Bluetooth access?

Yes. The DG800+ includes integrated Bluetooth functionality, providing an additional access method alongside PIN codes and proximity credentials.

What type of proximity credentials does the DG800+ use?

The DG800+ uses EM 125kHz proximity cards and tokens.

Does the DG800+ Require a Separate Access Control Panel?

No. The DG800+ is a standalone access control device, allowing Bluetooth, PIN code, and proximity credential access without requiring a separate access control controller.

Is the DG800+ suitable for outdoor installations?

Yes. The DG800+ features an IP65 weather-resistant rating and vandal-resistant construction, making it suitable for external installations.

Can the DG800+ be used with magnetic locks and electric strikes?

Yes. The DG800+ is compatible with magnetic locks (maglocks), electric strikes, electric bolt locks, gate automation systems, and other access control equipment.
