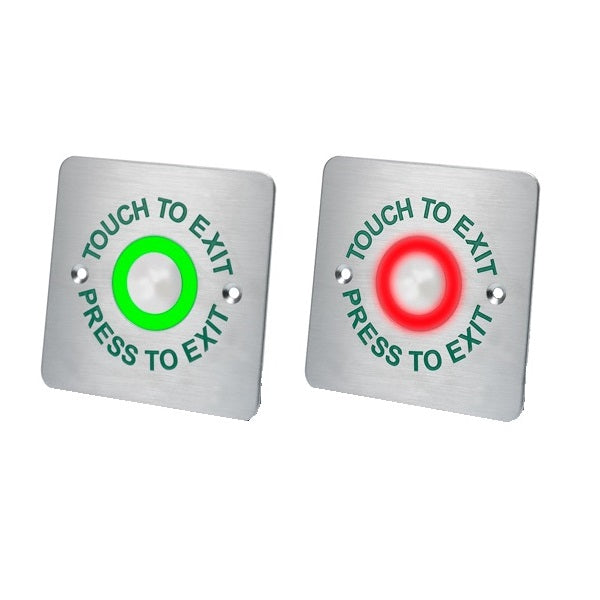

BTS486 Touch Sensitive Request to Exit Button (RTE)

The BTS486 Touch-Sensitive Request to Exit Button is a modern request-to-exit (RTE) solution designed for use with access control systems, door entry systems, and electronic locking applications. Suitable for commercial, industrial, educational, healthcare, and public sector environments, it provides a clean, reliable, and touch-activated method of releasing locked doors from the secure side of an access-controlled entry.

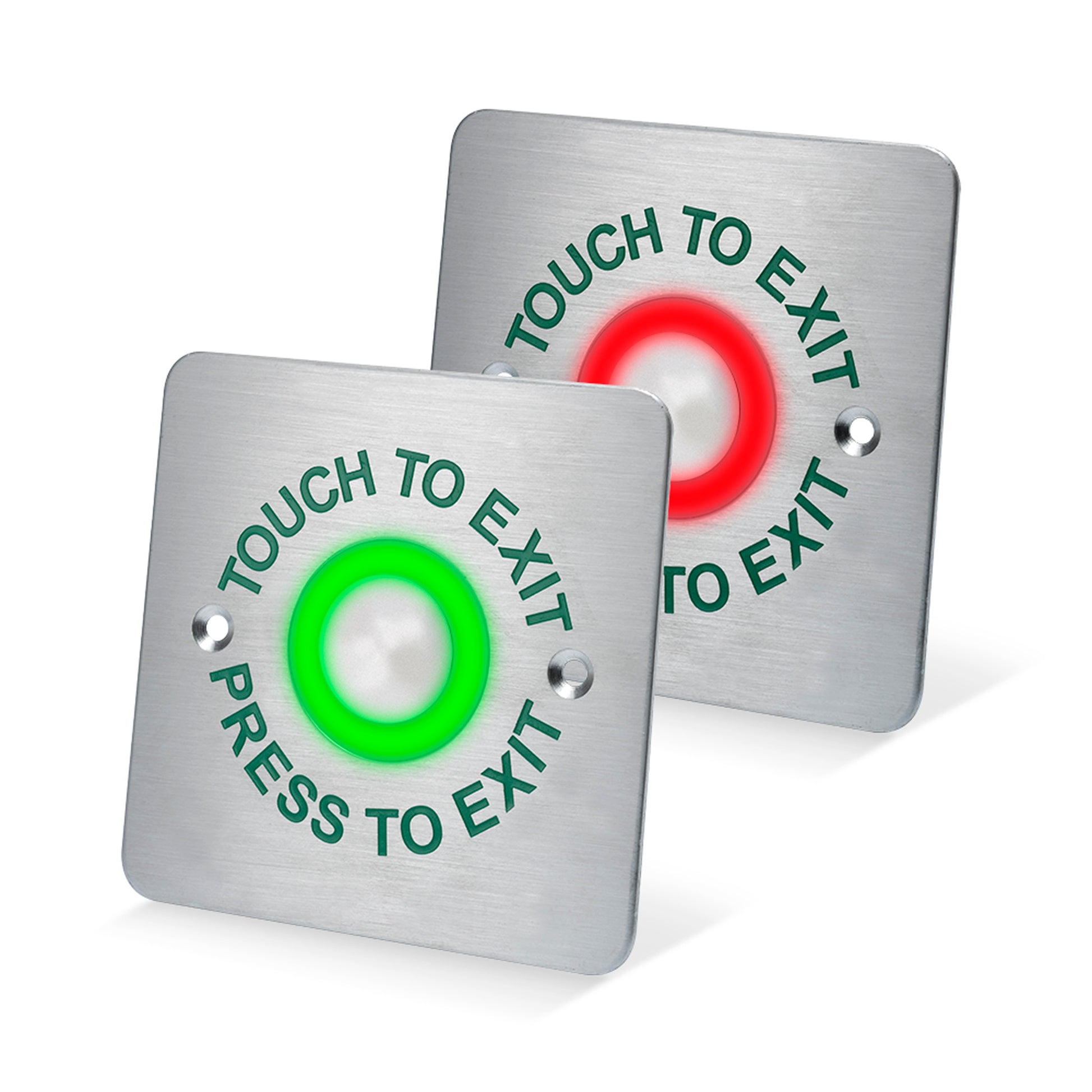

Featuring a brushed stainless steel faceplate and a 25mm touch-sensitive activation area, the BTS486 offers a durable and aesthetically clean solution for high-traffic environments. Its built-in adjustable timer allows for flexible integration with a wide range of access control systems, while LED illumination provides clear visual feedback for users.

Available Models

• BTS486 - Touch Sensitive Exit Button

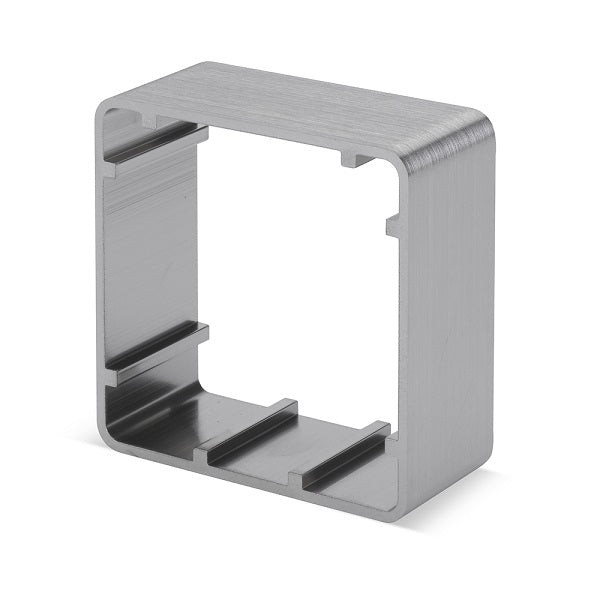

• DRB-SH - Surface Mount Surround Housing

Key Features

• Touch-sensitive Exit Activation (No Mechanical Wear)
• Brushed stainless steel faceplate
• 25mm activation area
• Built-in adjustable timer (1–30 seconds)

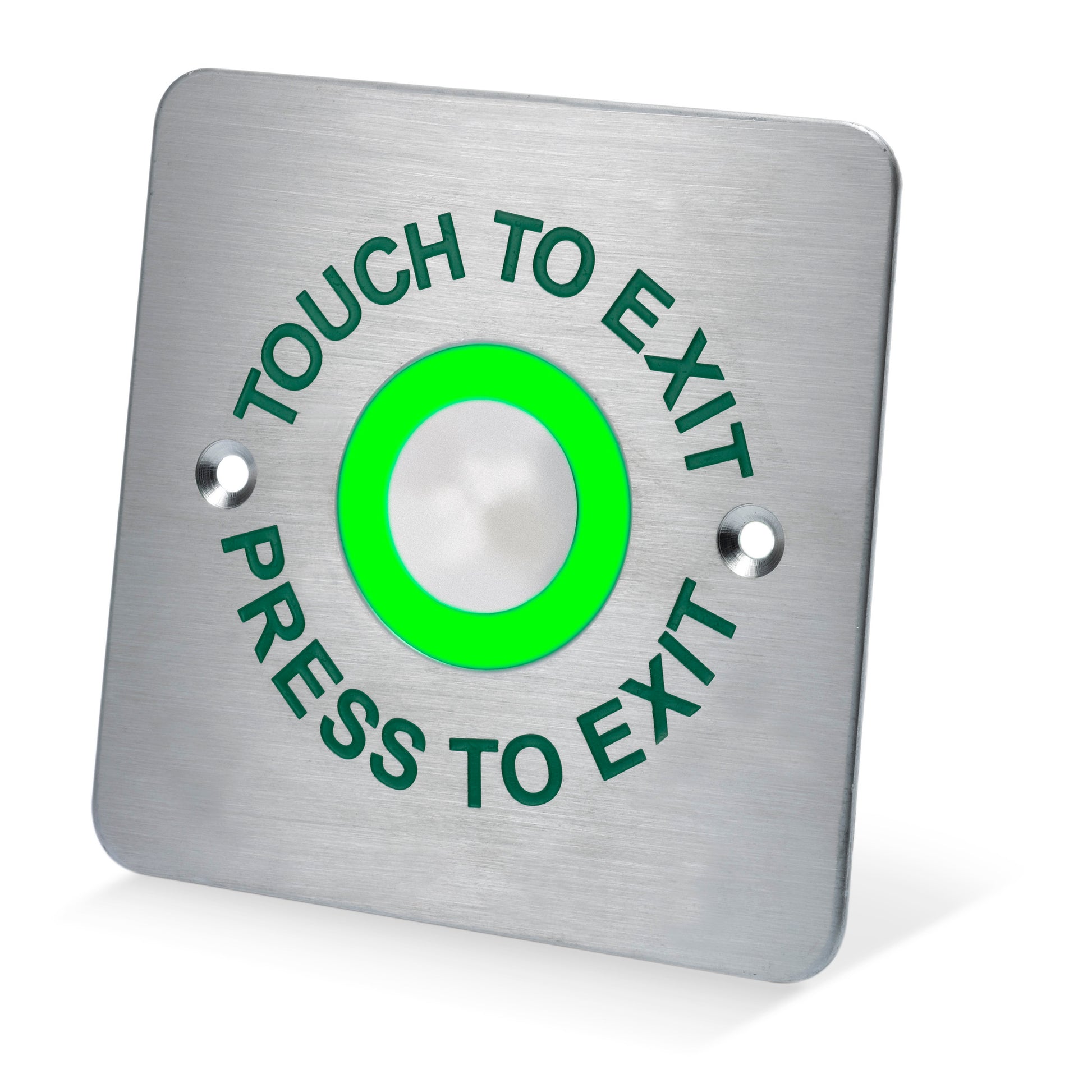

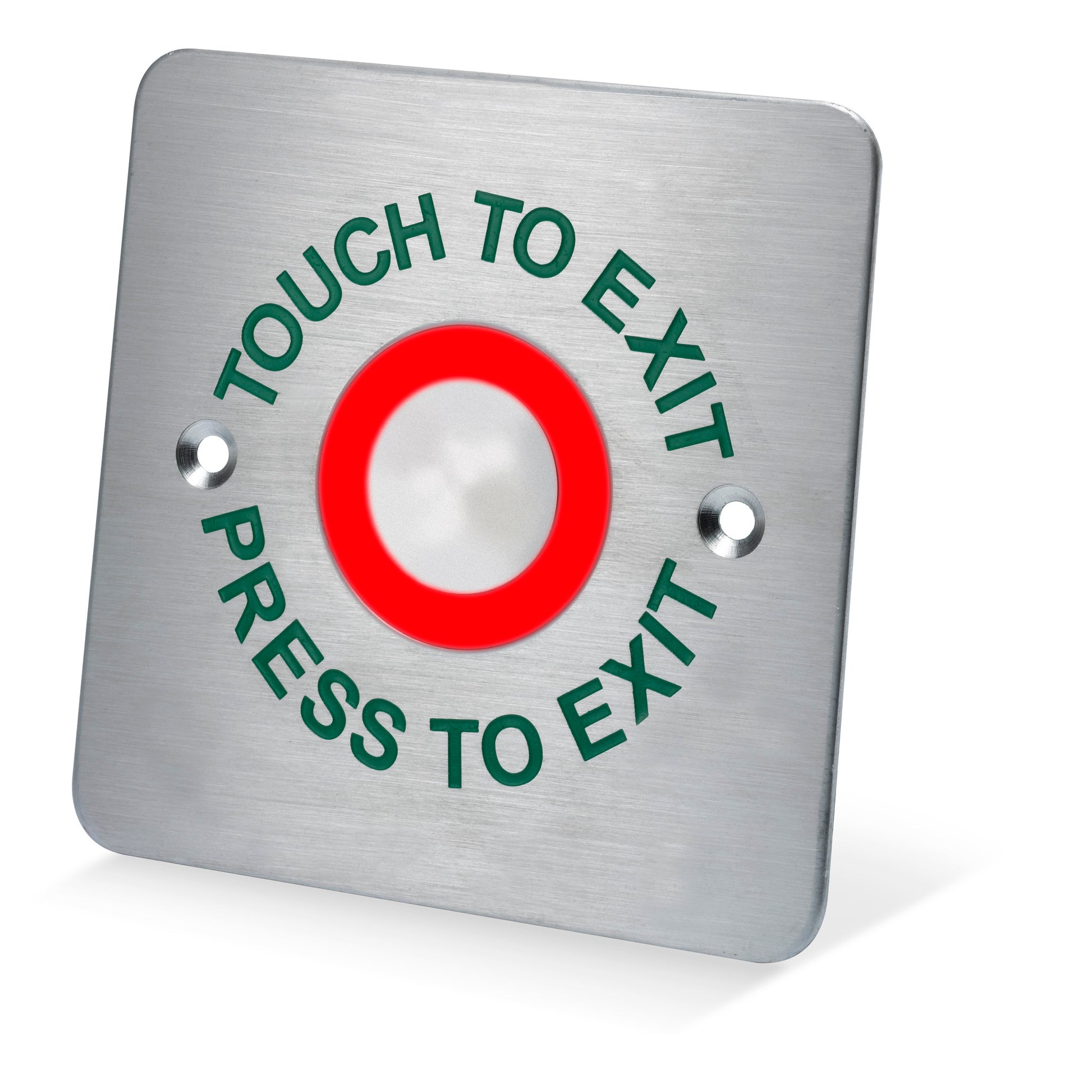

• LED illumination for visibility and status indication
• COM / NO / NC relay output
• Surface mount installation (with surround option)
• Suitable for access control and door release systems
• Reliable electronic RTE solution for high-traffic environments

Typical Applications

The BTS486 Touch-Sensitive Exit Button is commonly used in:

• Access control exit doors
• Commercial office buildings
• Schools, colleges, and universities
• Hospitals and healthcare facilities
• Retail premises and staff exits
• Industrial units and warehouses
• Secure internal doors
• Reception and controlled entry points
• Public sector buildings
• Restricted access areas

Compatibility

The BTS486 is designed to integrate with a wide range of access control and door security equipment, making it suitable for both new installations and system upgrades.

• Access control systems
• Electric strikes
• Magnetic locks (maglocks)
• Door entry systems
• Intercom systems
• Keypad and proximity systems
• Door controllers and access relays
• Automatic door systems
• Power supplies, relays, and timers

Technical Specification

• Operating Voltage: 12–24VDC
• Mounting Type: Surface mount (with surround option)
• Material: Brushed stainless steel
• Activation Type: Touch-sensitive (capacitive)
• Activation Area: 25mm
• Timer: Built-in adjustable timer (1–30 seconds)
• Contact Configuration: COM / NO / NC
• Illumination: LED illuminated
• Dimensions: 85mm x 85mm (H x W)

BTS486 Product Information

The BTS486 Touch-Sensitive Exit Button provides a modern, durable, and highly reliable access control solution for secure door release applications. With its stainless steel construction, touch-sensitive operation, and adjustable timer functionality, it is an ideal choice for installations requiring a clean, maintenance-free, and professional exit solution across commercial, industrial, and public sector environments.

Frequently Asked Questions

What is the BTS486 used for?

The BTS486 is used as a request-to-exit button in access control systems, allowing users to safely release a locked door from the secure side.

Does the BTS486 require mechanical pressing?

No, it is fully touch-sensitive and operates without mechanical movement, reducing wear and increasing lifespan.

Can the BTS486 be used with magnetic locks?

Yes, it is fully compatible with magnetic locks (maglocks), electric strikes, and most access control systems.

Is the BTS486 suitable for outdoor use?

It is primarily designed for internal use, however it may be installed in sheltered external locations depending on environmental conditions.

Can the BTS486 timer be adjusted?

Yes, the built-in timer can be adjusted between 1 and 30 seconds depending on system requirements.

Does it have LED indicators?

Yes, the unit includes LED illumination for visibility and operational feedback.
