ABLOY EL566 Lock Package 1ME

The ABLOY EL566 Lock Package 1ME is a compliant electric locking package designed for multipoint standard wood or metal door applications where read-in access control and free egress are required. It provides a complete package based around the ABLOY EL566 multipoint solenoid lockcase for controlled access from the outside and safe exit from the inside.

Designed for handle-operated doors, Package 1ME allows the inside handle to operate at all times, while the outside handle is controlled and activated by a signal from the access control system. Key override is available from the outside at all times, providing mechanical access where required.

Suitable for commercial, industrial, educational, healthcare, residential and public sector environments, the ABLOY EL566 Lock Package 1ME is commonly used where a compliant access control locking solution is required for multipoint standard doors with EN 179 escape requirements.

Available Models

• ABLOY-EL566-55-PACK1ME – EL566 Package 1ME 55mm backset (New ID Key Card)
• ABLOY-EL566-60-PACK1ME – EL566 Package 1ME 60mm backset (New ID Key Card)
• ABLOY-EL566-65-PACK1ME – EL566 Package 1ME 65mm backset (New ID Key Card)
• ABLOY-EL566-55-PACK1ME – EL566 Package 1ME 55mm backset (keyed to your existing KEY ID Card)
• ABLOY-EL566-60-PACK1ME – EL566 Package 1ME 60mm backset (keyed to your existing KEY ID Card)
• ABLOY-EL566-65-PACK1ME – EL566 Package 1ME 65mm backset (keyed to your existing KEY ID Card)

The CY326 can be keyed to match you current KEY ID Card, photo of the KEY ID Card will need to be sent to us upon completion of your order.

Key Features

• ABLOY compliant lock package
• Designed for multipoint standard wood or metal door applications
• Read-in access control with free egress
• Inside handle always operates
• Outside handle controlled by access control signal
• Key override at all times from the outside
• Based around the ABLOY EL566 multipoint solenoid lockcase
• Suitable for handle-operated door applications
• Available in 55mm, 60mm and 65mm backsets
• Complies with EN 179 when used with correct furniture
• Package components support EN 1634-1, EN 61000-6-1, EN 1303 cylinder requirements and EN 14846

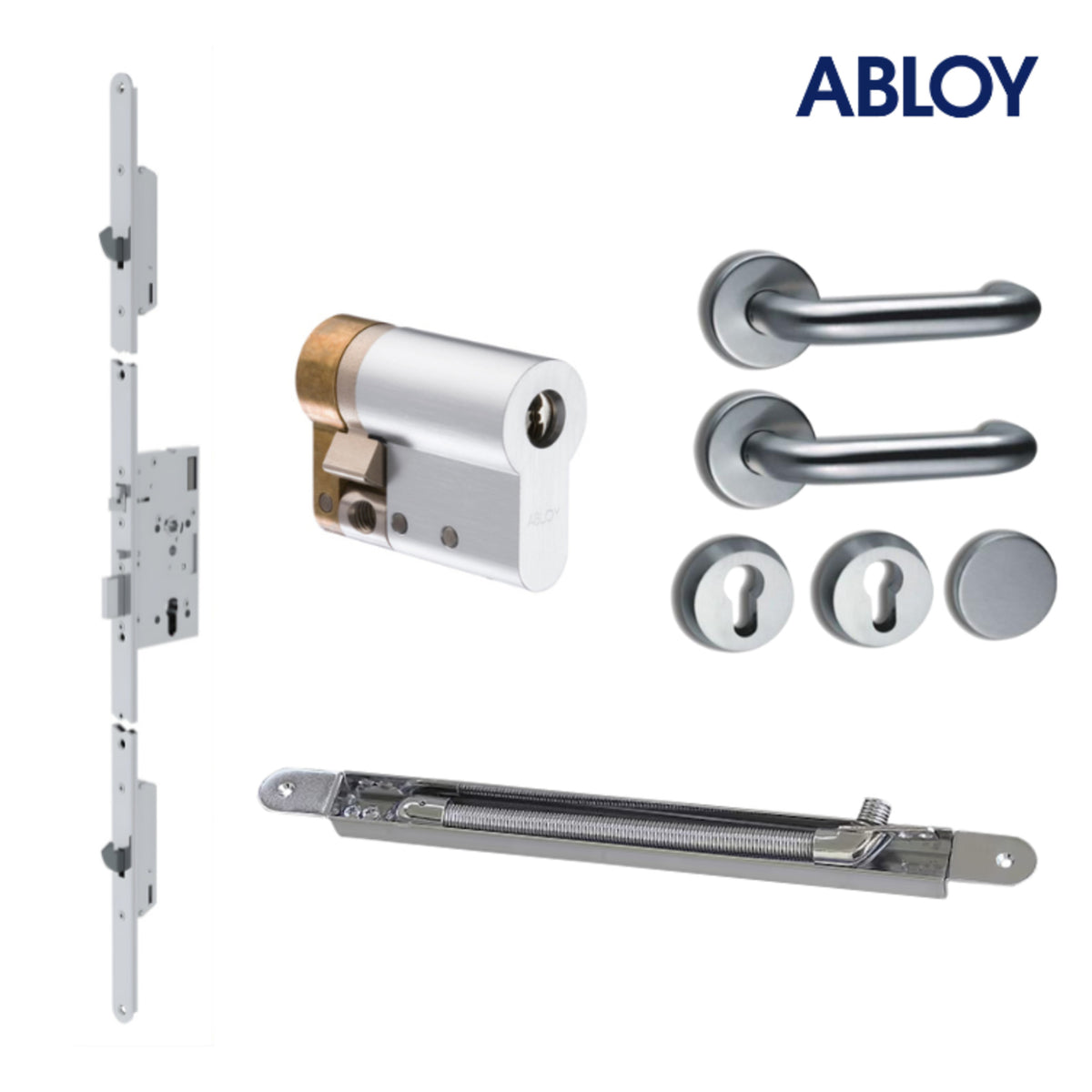

Package Includes

• ABLOY EL566 multipoint solenoid lockcase
• ABLOY CY326 single Euro cylinder
• ABLOY EA280 concealed door loop
• 60-0319-SSS handle set


Typical Applications

• Access control systems
• Read-in / free egress doors
• Multipoint standard doors
• Standard wood doors
• Standard metal doors
• Commercial buildings
• Office entrances
• Educational facilities
• Healthcare buildings
• Public buildings
• Residential developments
• Industrial premises
• Restricted access areas
• Internal controlled doors
• EN 179 escape route applications where correctly specified

Compatibility and Accessories

The ABLOY EL566 Lock Package 1ME is designed for multipoint standard door applications requiring access-controlled entry and free egress from the inside.

When ordering, please check the required backset, door type, door material, multipoint lock requirements, handle furniture, cylinder requirements, access control interface, door loop requirements, door closer requirements and any escape or fire door certification requirements before purchase.

Compatible with

• ABLOY electric locks
• ABLOY solenoid locks
• ABLOY lock cylinders and barrels
• Access Control Systems
• Door Entry Systems
• Keypad Entry Systems
• Proximity Readers
• Timers and Relays
• Push Buttons
• Power Supplies
• Door Entry Intercom Systems
• Emergency Door Release Units
• Suitable Door Furniture
• Compatible Euro Profile Cylinders

Technical Specification

• Product type: ABLOY compliant electric lock package
• Package: Package 1ME
• Main lockcase: ABLOY EL566 multipoint solenoid lockcase
• Door application: Multipoint standard wood or metal doors
• Operation: Read-in / free egress
• Inside handle: Always operates
• Outside handle: Controlled and activated by access control signal
• Key override: Available at all times from the outside
• Cylinder included: CY326 single Euro cylinder
• Door loop included: EA280 concealed door loop
• Handle set included: 60-0319-SSS handle set
• Backsets available: 55mm, 60mm and 65mm
• Ordering codes: ABLOY-EL566-55-PACK1ME, ABLOY-EL566-60-PACK1ME, ABLOY-EL566-65-PACK1ME
• Standards: EN 179 when used with correct furniture, EN 1634-1, EN 61000-6-1, EN 1303 cylinder, EN 14846

ABLOY EL566 Lock Package 1ME Product Information

Please check the full lock package specification, door type and project requirements before ordering. The ABLOY EL566 Lock Package 1ME should be installed in accordance with the manufacturer’s installation instructions and the requirements of the door application.

Where the package is used on an escape route or fire-rated door, the complete door assembly, hardware specification, fire test evidence, certification, access control interface and installation method must be suitable for the application.

The ABLOY EL566 Lock Package 1ME provides a professional read-in / free egress access control locking solution for multipoint standard wood or metal doors where EN 179 escape operation and a compliant ABLOY electric lock package are required.

Frequently Asked Questions

What is the ABLOY EL566 Lock Package 1ME used for?

The ABLOY EL566 Lock Package 1ME is used for multipoint standard wood or metal door applications where read-in access control and free egress from the inside are required.

How does Package 1ME operate?

The inside handle always operates for free egress. The outside handle is controlled and activated by a signal from the access control system.

What lockcase is included in Package 1ME?

Package 1ME includes the ABLOY EL566 multipoint solenoid lockcase.

What cylinder is included with Package 1ME?

Package 1ME includes the ABLOY CY326 single Euro cylinder.

Does Package 1ME include a door loop?

Yes. Package 1ME includes the ABLOY EA280 concealed door loop.

Does Package 1ME include handles?

Yes. Package 1ME includes the 60-0319-SSS handle set.

Is a door closer included?

The DC240 door closer is listed as an optional item for Package 1ME.

What backsets are available?

Package 1ME is available with 55mm, 60mm and 65mm backsets.

Does Package 1ME have key override?

Yes. Key override is available at all times from the outside.

Is Package 1ME suitable for EN 179 applications?

Package 1ME complies with EN 179 when used with the correct furniture. The complete door hardware set must be correctly specified and installed for the application.

What is the difference between Package 1ME and Package 1MP?

Package 1ME is for EN 179 escape applications using handle furniture. Package 1MP is for EN 1125 panic escape applications and includes panic bar hardware.

What should I check before ordering?

Please check the required backset, door type, door material, multipoint lock requirements, access control requirements, handle furniture, cylinder requirements, escape route requirements and any fire door certification requirements before ordering.
