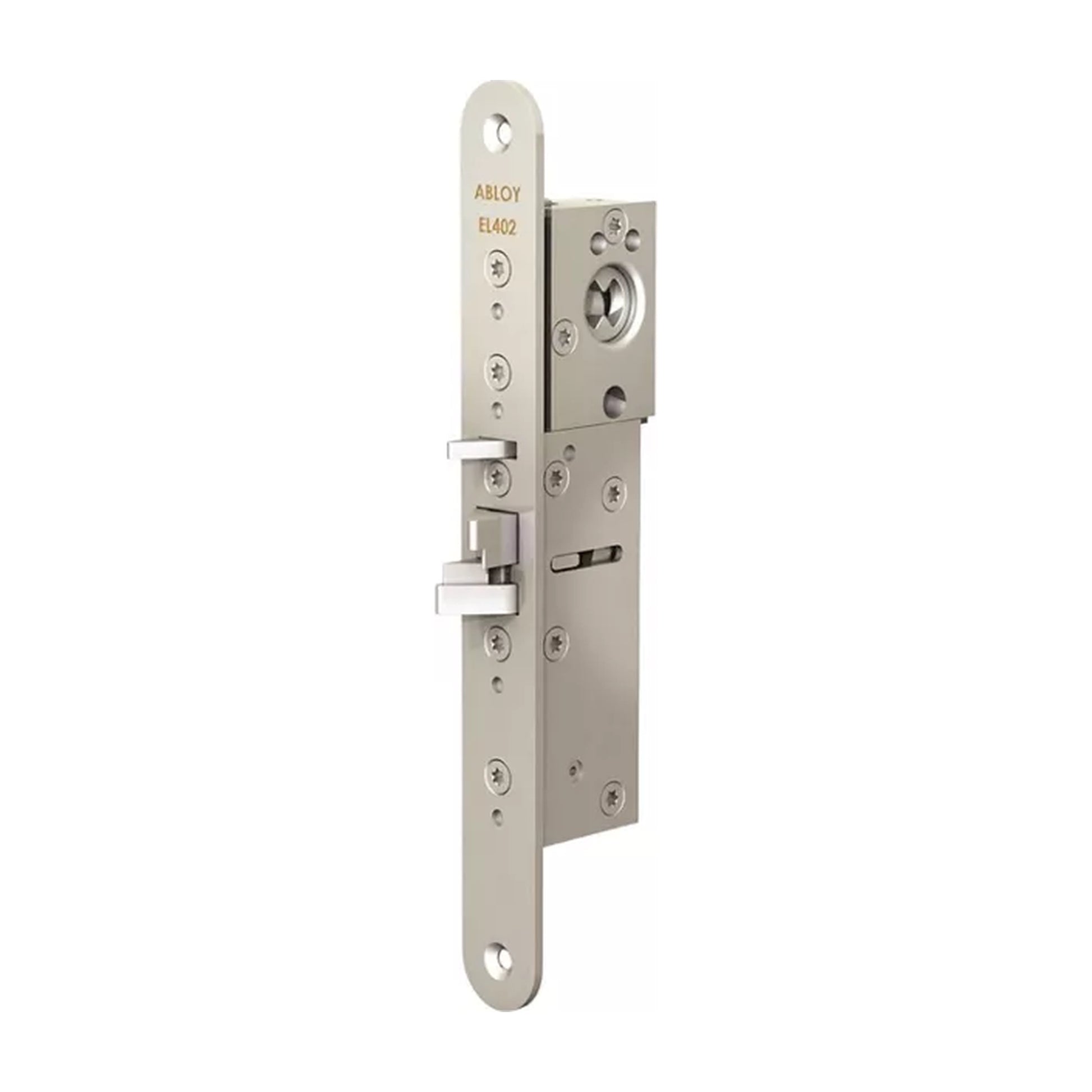

ABLOY EL402 Electromechanical Mortice Lock

The ABLOY EL402 Solenoid Mortice Lock is an electromechanical locking solution designed for suitable narrow style doors where electronic access control or remote door release is required. It provides a cost-effective electric locking option for applications such as offices, storage rooms, consulting rooms, educational buildings and commercial premises.

The EL402 includes a special double action bolt for quick and convenient push or pull operation. The symmetrical trigger bolt allows the lock to be used on double swing doors, while the adjustable backset provides flexibility for a range of narrow style door applications.

The lock can be controlled by a variety of electrical impulse generating devices, including access control systems, card readers, keypads, timers and suitable remote-control equipment. Mechanical opening by key or thumbturn is always possible, and the bolt deadlocks automatically when the door closes.

Available Models

• ABLOY EL402 - 12/24VDC narrow style electric mortice solenoid lock


Key Features

• Electromechanical solenoid mortice lock

• Designed for narrow style doors

• Double action bolt

• Push or pull operation

• Symmetrical trigger bolt

• Suitable for double swing doors

• Field selectable fail-safe / fail-secure configuration

• Visual lock status indicator

• Immediate release of deadlocking

• Bolt deadlocks automatically when the door closes

• Key or thumbturn override at all times

• Adjustable 25mm to 35mm backset

• Wide 12–24VDC operating voltage

• Deadlock status monitoring

• Suitable for horizontal installation

• Non-handed design

• Steel trigger and deadbolt

• Suitable for use with access control systems

• Suitable for use with compatible automatic swing door operators

Typical Applications

• Access control systems

• Door entry systems

• Narrow style doors

• Offices

• Storage rooms

• Consulting rooms

• Educational buildings

• Commercial premises

• Business premises

• Internal controlled doors

• Double swing doors

• Top of suitable glass door applications

• Remote door release applications

• Automatic swing door applications where suitable

Compatibility and Accessories

The ABLOY EL402 Electromechanical Mortice Lock is designed to integrate with a wide range of electronic access control and door security equipment.

When building a complete system, please check the required operating mode, door type, backset, voltage, cylinder type, thumbturn requirements, monitoring requirements, door clearance, cable requirements, door furniture and installation method before ordering.

Compatible product categories may include:

• Access Control Systems

• Door Entry Systems

• Keypad Entry Systems

• Proximity Readers

• Timers and Relays

• Push Buttons

• Power Supplies

• Door Entry Intercom Systems

• Emergency Door Release Units

• Suitable Door Furniture

• Compatible Cylinders

• Compatible Connection Cables

• Lead Covers

• Compatible Automatic Swing Door Operators

Technical Specification

• Product type: Solenoid mortice lock

• Model: ABLOY EL402

• Application: Electric mortice locking for narrow style doors

• Operation: Push or pull operation

• Bolt type: Double action latch

• Latchbolt: 14.5mm

• Electrical function: Fail-safe / fail-secure versions available

• Operating voltage: 12–24VDC

• Current at 12VDC: 550mA maximum, 240mA holding

• Current at 24VDC: 270mA maximum, 110mA holding

• Monitoring: Deadlock status monitoring

• Monitoring contact: Microswitch 0.4A at 30V AC

• Backset: Adjustable 25mm, 28mm, 30mm, 33mm and 35mm

• Forend: 25mm

• Door clearance: 3mm to 5mm

• Handing: Non-handed

• Installation: Suitable for horizontal installation

• Override: Key or thumbturn override at all times

• Case / cover: High purity zinc alloy

• Standard finish: Chrome plated forend, yellow chrome plated lock case

• Operating temperature: -20°C to +60°C

• Recommended cable: 18AWG / 0.82mm² cable runs up to 30m

• Cylinder compatibility: ABLOY Classic or ABLOY Disklock Pro

• Replacement note: EL402 replaces EL412 and EL413

• Fire door use: Not recommended for fire doors

• Seal force: Not recommended for doors with seal force

ABLOY EL402 Product information

Please refer to the ABLOY product datasheet and installation instructions before ordering or installing the EL402 Solenoid Mortice Lock.

The door type, backset, operating mode, voltage, cylinder, thumbturn, door furniture, access control wiring, monitoring requirements, cable route and installation method should all be checked before installation.

ABLOY states that the EL402 is not recommended for use in fire doors or in doors with seal force. Where the lock is being used with an automatic swing door operator, the complete door system and control equipment must be correctly specified for the application.

The ABLOY EL402 provides a flexible electric mortice locking solution for narrow style door applications where access control, push or pull operation, mechanical override and adjustable backset installation are required.

Frequently Asked Questions

What is the ABLOY EL402 used for?

The ABLOY EL402 is an electromechanical solenoid mortice lock used for access control and remote door release applications on suitable narrow style doors.

How does the ABLOY EL402 work?

The EL402 can be electrically controlled by an access control system, keypad, card reader, timer or other suitable impulse device. The lock uses a double action bolt and allows push or pull operation.

Is the ABLOY EL402 fail-safe or fail-secure?

The ABLOY EL402 is available in fail-secure and fail-safe versions. The EL402 is the fail-secure version, while the EL402-001 is the fail-safe version.

What backset does the ABLOY EL402 have?

The ABLOY EL402 has an adjustable backset between 25mm and 35mm, with 25mm, 28mm, 30mm, 33mm and 35mm settings.

Can the ABLOY EL402 be opened mechanically?

Yes. The ABLOY EL402 can always be opened mechanically by key or thumbturn.

Can the ABLOY EL402 be used on double swing doors?

Yes. The EL402 has a symmetrical trigger bolt, allowing it to be used on suitable double swing door applications.

What voltage does the ABLOY EL402 require?

The ABLOY EL402 operates on 12–24VDC.

Does the ABLOY EL402 provide monitoring?

Yes. The EL402 provides deadlock status monitoring using a microswitch contact.

Is the ABLOY EL402 suitable for fire doors?

No. ABLOY states that the EL402 is not recommended for use in fire doors.

Is the ABLOY EL402 suitable for doors with seal force?

No. ABLOY states that the EL402 is not recommended for use in doors with seal force.

Can the ABLOY EL402 be used with automatic swing door operators?

Yes. ABLOY states that the EL402 is suitable for use with the 5002 swing door operator. The full door system must be correctly specified for the application.

What replaced the ABLOY EL412 and EL413?

ABLOY states that the EL402 replaces the EL412 and EL413.

What should I check before ordering?

Please check the door type, backset, operating mode, voltage, cylinder or thumbturn requirements, door clearance, monitoring requirements, cable requirements, door furniture and installation method before ordering.
