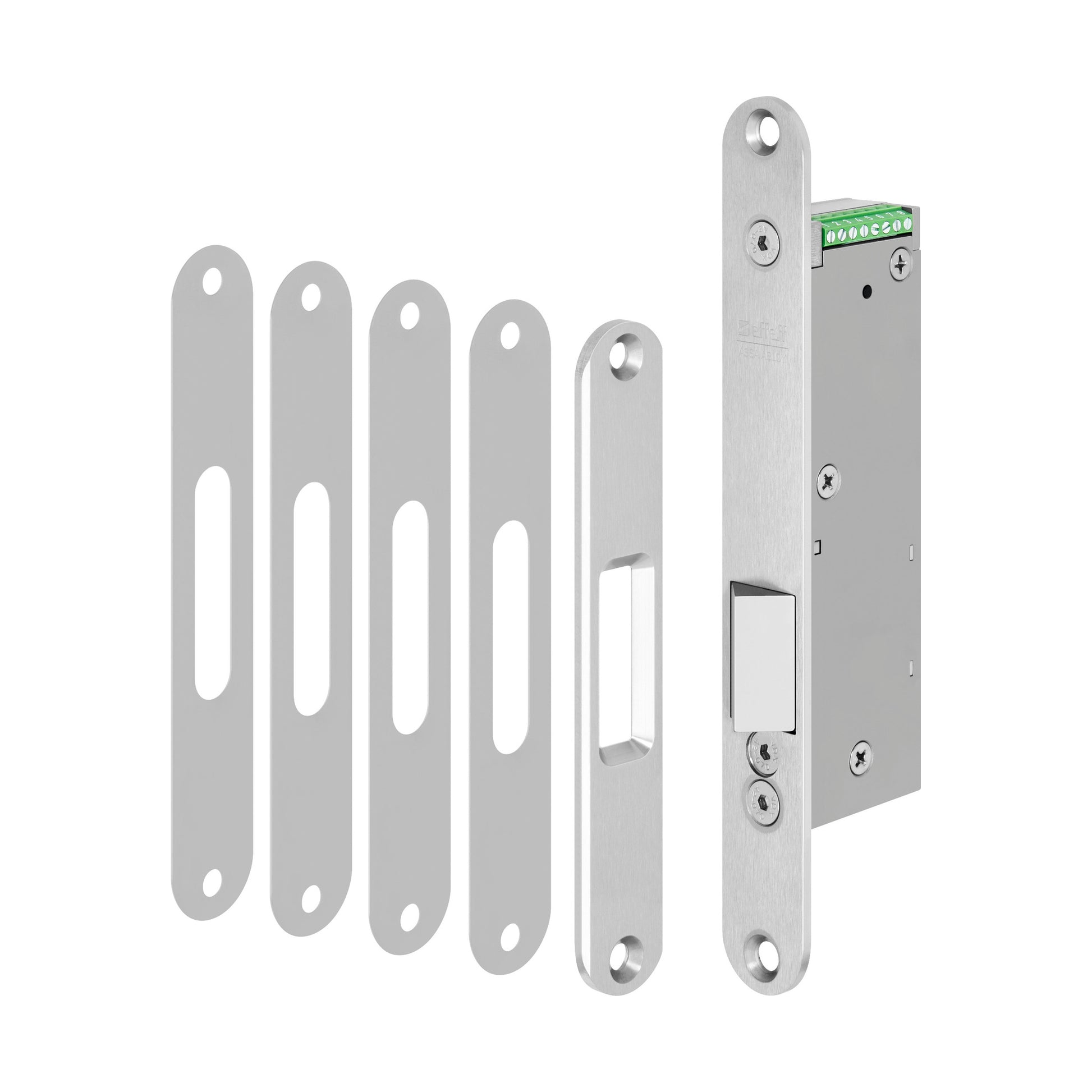

ABLOY 352M.80 Escape Door Motor Lock

The ABLOY 352M.80 Escape Door Motor Lock is designed as an additional locking device for secure doors on escape routes. It provides high holding force, quiet operation and fail-safe unlocking, making it suitable for controlled escape door applications where secure locking and compliant emergency release are required.

Designed for use as part of an escape door locking system, the 352M.80 provides holding force up to 5000N and fail-safe unlocking under pre-load of 5000N. The unit operates on 12VDC to 24VDC and includes integrated monitoring contact and armature contact for connection to suitable control equipment.

The 352M.80 is suitable for single and double action doors and can be installed horizontally or vertically, depending on the application. It is commonly used in commercial, industrial, educational, healthcare and public building environments where controlled locking is required on escape routes.

Available Models

• ABLOY 352M.80 – Escape door motor lock

Key Features

• Escape door motor lock

• Designed as additional locking for secure doors on escape routes

• Suitable for single and double action doors

• Fail-safe unlocking

• Fail-safe unlocking under pre-load of 5000N

• Holding force up to 5000N

• 12VDC to 24VDC multi-voltage operation

• Monitoring contact integrated

• Armature contact integrated

• Very quiet locking and unlocking

• Silent during permanent release

• Universal installation in horizontal or vertical positions

• Suitable as an additional locking element for fire doors, subject to correct specification and installation requirements

• Tested to BS EN 13637

• Suitable for compliant escape door packages where correctly specified

Typical Applications

• Escape door locking systems

• Access control systems

• Emergency exit doors

• Secure doors on escape routes

• Commercial buildings

• Public buildings

• Educational facilities

• Healthcare buildings

• Industrial premises

• Restricted access areas

• Single action doors

• Double action doors

• Horizontal or vertical lock installations

• Additional locking for compatible fire door applications

Compatibility and Accessories

The ABLOY 352M.80 Escape Door Motor Lock is designed to be used as part of a complete escape door locking system. When specifying the lock, please check the door type, escape route requirements, control equipment, release method, voltage, monitoring requirements, fire door requirements and relevant compliance requirements before ordering.

Compatible product categories may include:

• Access Control Systems

• Door Entry Systems

• Keypad Entry Systems

• Proximity Readers

• Timers and Relays

• Push Buttons

• Power Supplies

• Door Entry Intercom Systems

• Emergency Door Release Units

• Suitable Door Furniture

• Compatible Euro Profile Cylinders

• Compatible Strike Plates

• Compatible Connection Cables

• Lead Covers


Technical Specification

• Product type: Escape door motor lock

• Model: ABLOY 352M.80

• Application: Additional locking for secure doors on escape routes

• Door type: Suitable for single and double action doors

• Operation: Motor lock

• Electrical function: Fail-safe unlocking

• Holding force: Up to 5000N

• Pre-load release: Fail-safe unlocking under pre-load of 5000N

• Operating voltage: 12VDC to 24VDC

• Monitoring: Monitoring contact integrated

• Armature contact: Integrated

• Installation position: Horizontal or vertical installation

• Fire door application: Suitable as an additional locking element for fire doors, subject to correct specification and installation requirements

• Testing: Tested to BS EN 13637

• Use: Escape door locking, access control and controlled door security applications

ABLOY 320M.80 Product Information

ABLOY 320M.80 Technical Datasheet

Please refer to the ABLOY product datasheet and installation instructions before ordering or installing the 352M.80 Escape Door Motor Lock.

The door type, control equipment, operating voltage, wiring, monitoring requirements, escape route requirements, fire door requirements and installation method should all be checked before installation.

Where the 352M.80 is used on an escape route or fire-rated door, the complete door assembly, escape door system, hardware specification, certification, emergency release method and installation requirements must be suitable for the application.

The ABLOY 352M.80 provides a professional escape door motor lock solution for applications requiring additional locking, high holding force, quiet operation and fail-safe release on secure doors along escape routes.

Frequently Asked Questions

What is the ABLOY 352M.80 used for?

The ABLOY 352M.80 is used as an additional locking device for secure doors on escape routes. It is designed for escape door locking applications where controlled security and fail-safe release are required.

Is the ABLOY 352M.80 fail-safe?

Yes. The ABLOY 352M.80 provides fail-safe unlocking, including fail-safe unlocking under pre-load of 5000N.

What holding force does the ABLOY 352M.80 provide?

The ABLOY 352M.80 provides holding force up to 5000N.

What voltage does the ABLOY 352M.80 require?

The ABLOY 352M.80 operates from 12VDC to 24VDC.

Can the ABLOY 352M.80 be used on single and double action doors?

Yes. ABLOY states that the 352M.80 is suitable for single and double action doors.

Can the ABLOY 352M.80 be installed horizontally or vertically?

Yes. The 352M.80 allows universal installation in either horizontal or vertical positions.

Does the ABLOY 352M.80 include monitoring?

Yes. The 352M.80 includes integrated monitoring contact and armature contact.

Is the ABLOY 352M.80 suitable for fire doors?

The 352M.80 is listed as suitable as an additional locking element for fire doors. Suitability depends on the complete door assembly, escape door system, certification, installation method and project requirements.

Is the ABLOY 352M.80 tested to BS EN 13637?

Yes. ABLOY states that the 352M.80 is tested to BS EN 13637.

Can the ABLOY 352M.80 be used with access control systems?

Yes. The 352M.80 can be used as part of an access control or escape door locking system, provided the complete system is correctly specified for the door and escape route requirements.

What should I check before ordering?

Please check the door type, escape route requirements, voltage, control equipment, release method, monitoring requirements, fire door requirements and installation method before ordering.
