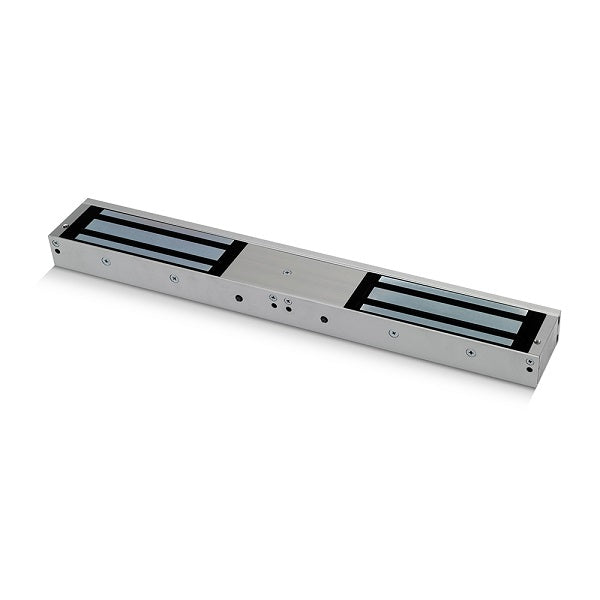

U10040 / U10040DSU Monitored Standard Double Magnetic Lock (Maglock)

The U10040 and U10040DSU Monitored Standard Double Magnetic Locks are high-performance electromagnetic locking solutions designed for double doors used with access control systems, door entry systems, intercoms, and electronic security installations. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide reliable fail-safe locking together with enhanced monitoring capabilities for improved system management.

An electromagnetic lock, commonly known as a magnetic lock or maglock, consists of an electromagnet mounted to the door frame and a matching armature plate attached to the door. When power is applied, the electromagnet generates a powerful magnetic field that securely holds the armature plate in place. As a fail-safe device, the lock automatically releases when power is removed, ensuring safe emergency egress.

Operating from a selectable 12VDC or 24VDC power supply, the U10040 series incorporates two magnetic locks, each providing a holding force of up to 1200lbs (544kg). Manufactured with a durable aluminium housing and electroless nickel-plated armatures, the locks are designed for long-term reliability and corrosion resistance. Both models feature a monitored magnetic lock, while the U10040DSU additionally includes an integrated red/green status LED and a door status output, providing both visual lock indication and door position feedback for compatible access control systems.

Available Models

• U10040 – Monitored Standard Double Magnetic Lock
• U10040DSU – Monitored Standard Double Magnetic Lock with Door Status LED and Door Status Output

Key Features

• Monitored Standard Double Magnetic Lock (Maglock)
• Twin Magnetic Lock Design
• Holding Force up to 2 × 1200lbs (544kg)*
• Selectable 12VDC or 24VDC Operation
• Fail Safe Operation (Power to Lock)
• Aluminium Housing
• Electroless Nickel-Plated Armatures
• Integrated Lock Monitoring
• Integrated Red / Green Status LED (U10040DSU)
• Door Status Output (U10040DSU)
• Suitable for Double Doors
• Suitable for New Installations and Retrofits

*Each lock provides up to 1200lbs (544kg) holding force.

Typical Applications

• Double Access-Controlled Doors
• Commercial Buildings
• Office Entrances
• Healthcare Facilities
• Educational Buildings
• Industrial Premises
• High Security Doors
• Restricted Access Areas
• Aluminium Door Systems
• Timber Door Systems

Compatibility

The U10040 and U10040DSU Monitored Standard Double Magnetic Locks are designed to integrate with a wide range of access control and electronic security equipment.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Emergency Door Release Units
• Power Supplies
• Timer Relays
• Door Monitoring Systems

Technical Specification

• Product Type: Monitored Standard Double Magnetic Lock (Maglock)
• Operating Voltage: Selectable 12VDC or 24VDC
• Operation: Fail Safe (Power to Lock)
• Holding Force: 2 × 1200lbs (544kg)
• Housing: Aluminium
• Armature Finish: Electroless Nickel Plated
• Monitoring: Integrated Lock Monitoring
• Door Status LED: U10040DSU Only
• Door Status Output: U10040DSU Only
• Mounting: Surface Mount
• Dimensions: 67mm × 532mm × 40mm (H × W × D)

Product Information

U10040 / U10040DSU Product Information

The U10040 and U10040DSU Monitored Standard Double Magnetic Locks provide powerful electromagnetic locking for double access-controlled doors. Featuring twin 1200lbs magnetic locks, selectable 12VDC or 24VDC operation, fail-safe locking, integrated lock monitoring, and an optional door status LED and door status output, they are ideal for commercial, industrial, and high-security access control installations where enhanced monitoring is required.

Frequently Asked Questions

What is the Difference Between the U10040 and U10040DSU?

Both models provide the same holding force, dimensions, selectable 12/24VDC operation, monitored locking, and fail-safe operation. The U10040DSU additionally includes an integrated red/green door status LED and a door status output, allowing compatible access control systems to monitor whether the doors are physically open or closed while also providing a visual indication of lock status.

What Holding Force Does the U10040 Series Provide?

Each magnetic lock provides up to 1200lbs (544kg) of holding force, creating a high-security locking solution for double-door applications.

What Voltage do the U10040 Locks Operate On?

Both models operate on a selectable 12VDC or 24VDC power supply.

What Does the Integrated Door Status LED Do?

The U10040DSU features an integrated red/green LED that provides a visual indication of the lock status, making installation, commissioning, and maintenance easier.

What is the Door Status Output Used For?

The U10040DSU includes a door status output that allows compatible access control systems to monitor whether the doors are open or closed.

Can the U10040 Series be Used with Access Control Systems?

Yes. The U10040 series is fully compatible with access control systems, door entry systems, intercoms, keypads, proximity readers, emergency door release units, and other electronic security equipment.
