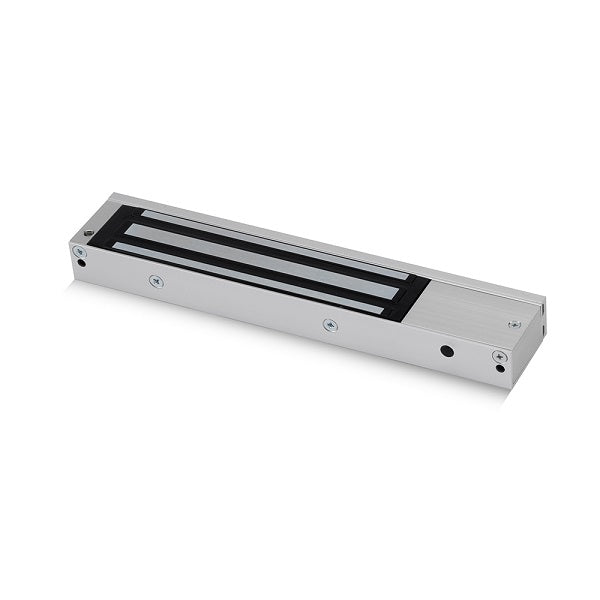

U10001 / U10001DSU Mini Magnetic Lock (Maglock)

The U10001 and U10001DSU Mini Magnetic Locks are compact electromagnetic locking solutions designed for use with access control systems, door entry systems, intercoms, and electronic security installations. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide reliable fail-safe locking for doors where a compact surface-mounted magnetic lock is required.

An electromagnetic lock, commonly known as a magnetic lock or maglock, consists of an electromagnet mounted to the door frame and a matching armature plate attached to the door. When power is applied, the electromagnet generates a powerful magnetic field that securely holds the armature plate in place. As a fail-safe device, the lock automatically releases when power is removed, ensuring safe emergency egress.

Operating from 12VDC or 24VDC power supplies, the U10001 series provides a holding force of up to 600lbs (272kg). Manufactured with a durable aluminium housing and an electroless nickel-plated armature, the locks are designed for long-term reliability and corrosion resistance. The U10001DSU additionally features a door status output, providing door position monitoring for compatible access control systems.

Available Models

• U10001 – Unmonitored Mini Magnetic Lock
• U10001DSU – Mini Magnetic Lock with Door Status Output

Key Features

• Mini Magnetic Lock (Maglock)
• Holding Force up to 600lbs (272kg)
• Operating Voltage 12VDC or 24VDC
• Fail Safe Operation (Power to Lock)
• Aluminium Housing
• Electroless Nickel-Plated Armature
• Surface Mount Installation
• Door Status Output Available (U10001DS-U)
• Suitable for Access Control Systems
• Suitable for New Installations and Retrofits

Typical Applications

• Access Control Systems
• Commercial Buildings
• Office Entrances
• Healthcare Facilities
• Educational Buildings
• Residential Developments
• Internal Security Doors
• Restricted Access Areas
• Aluminium Door Systems
• Timber Door Systems

Compatibility

The U10001 and U10001DSU Mini Magnetic Locks are designed to integrate with a wide range of access control and electronic security equipment.

• Access control systems
• Emergency door systems
• Fire alarm systems
• Door entry systems
• Emergency exit systems
• Keypad systems
• Proximity readers
• Building management systems
• Power supplies
• Door Monitoring Systems

Technical Specification

• Product Type: Mini Magnetic Lock (Maglock)
• Operating Voltage: 12VDC or 24VDC
• Operation: Fail Safe (Power to Lock)
• Holding Force: Up to 600lbs (272kg)
• Housing: Aluminium
• Armature Finish: Electroless Nickel Plated
• Monitoring: Unmonitored
• Door Status Output: U10001DSU Only
• Mounting: Surface Mount
• Dimensions: 42mm × 250mm × 26mm (H × W × D)

U10001 / U10001DSU Product Information

The U10001 and U10001DSU Mini Magnetic Locks provide compact, reliable electromagnetic locking for access-controlled doors. Featuring up to 600lbs holding force, fail-safe operation, durable aluminium construction, and an optional door status output, they are ideal for commercial and residential access control installations.

Frequently Asked Questions

What is the Difference Between the U10001 and U10001DSU?

Both models share the same holding force, dimensions, operating voltage, and fail-safe operation. The U10001DSU includes a door status output that provides door position feedback to compatible access control systems, while the U10001 is the standard unmonitored version.

What Holding Force Does the U10001 Provide?

The lock provides a holding force of up to 600lbs (272kg).

What Voltage Does the U10001 Operate On?

The lock operates on 12VDC or 24VDC power supplies.

What is a Door Status Output?

A door status output provides feedback to compatible access control systems, allowing them to determine whether the door is open or closed.

Can the U10001 Series be Used with Access Control Systems?

Yes. The U10001 series is fully compatible with access control systems, door entry systems, intercoms, keypads, proximity readers, emergency door release units, and other electronic security equipment.
