TLM100 / TLM200 LED Traffic Light Indicator

The TLM100 and TLM200 LED Traffic Light Indicators provide a simple and highly visible method of indicating whether a door, gate, or controlled entrance is locked or unlocked. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they improve user awareness and help control the safe movement of people through access-controlled areas.

Using bright red and green LED indicators, the units provide clear visual guidance with red indicating STOP (locked) and green indicating GO (unlocked). This makes access and egress easier for users while reducing confusion in busy environments such as offices, schools, hospitals, and industrial facilities.

Operating from a 12VDC or 24VDC power supply, both models feature an adjustable operating programme and are designed for easy integration with access control systems, automatic gates, barriers, and door automation equipment. The TLM100 is supplied in a compact narrow housing, while the TLM200 features a standard 85mm square faceplate.

Available Models

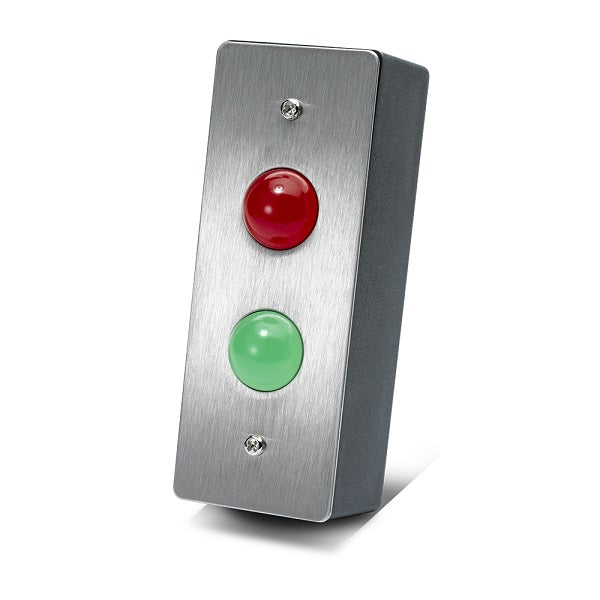

• TLM100 – Narrow LED Traffic Light Indicator

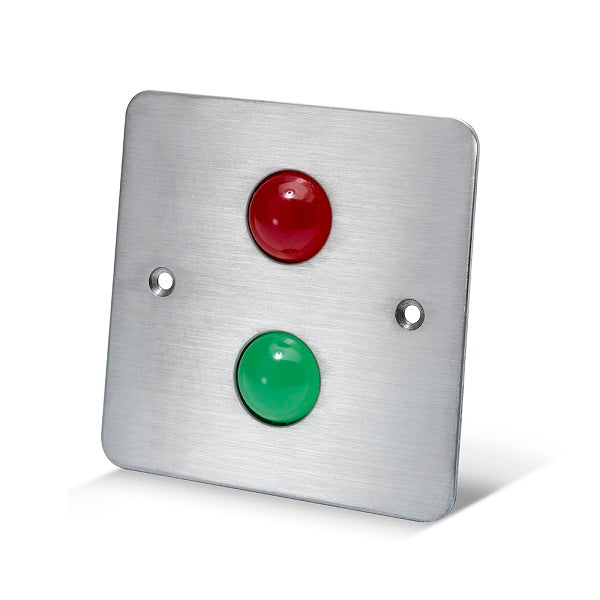

• TLM200 – Square LED Traffic Light Indicator

Key Features

• LED Traffic Light Indicator
• Red / Green LED Status Display
• Red Indicates STOP
• Green Indicates GO
• 12VDC or 24VDC Operation
• Adjustable Operating Programme
• Surface or Flush Mount Installation
• Improves User Guidance
• Suitable for Access Control Systems
• Suitable for New Installations and Retrofits

Typical Applications

• Access Control Systems
• Automatic Gates
• Barrier Systems
• Commercial Buildings
• Office Entrances
• Healthcare Facilities
• Educational Buildings
• Industrial Premises
• Vehicle Access Control
• Pedestrian Access Control

Compatibility

The TLM100 and TLM200 LED Traffic Light Indicators are designed to integrate with a wide range of electronic security and automation equipment.

• Access control systems
• Door entry systems
• Intercom Systems
• Electric Locks
• Magnetic Locks (Maglocks)
• Automatic Gates
• Barrier Systems
• Door Controllers
• Relay Modules
• Building Management Systems

Technical Specification

• Product Type: LED Traffic Light Indicator
• Operating Voltage: 12VDC or 24VDC
• LED Colours: Red / Green
• Operation: Adjustable Programme
• Mounting: Surface or Flush Mount
• TLM100 Dimensions: 115mm × 44mm × 33mm (H × W × D)
• TLM200 Dimensions: 85mm × 85mm × 2mm (H × W × D)

TLM100 / TLM200 Product Information

The TLM100 and TLM200 LED Traffic Light Indicators provide a clear and effective visual indication of door or gate status within access control systems. Featuring bright red and green LEDs, adjustable operation, and a choice of narrow or square designs, they help improve safety, user guidance, and traffic flow in busy environments.

Frequently Asked Questions

What are the TLM100 and TLM200 Used For?

The TLM100 and TLM200 provide a visual indication of whether a door or gate is locked or unlocked, helping users understand when it is safe to enter or exit.

What is the Difference Between the TLM100 and TLM200?

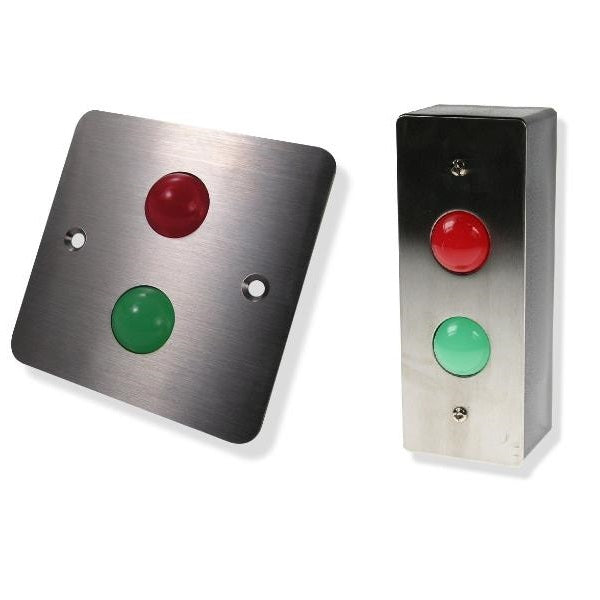

The TLM100 features a compact narrow housing, while the TLM200 is supplied with a standard 85mm × 85mm square faceplate. Both offer the same red/green LED indication and operating functionality.

What do the Red and Green LEDs Indicate?

The red LED indicates STOP (locked), while the green LED indicates GO (unlocked).

What Voltage do the Indicators Operate On?

Both models operate from a 12VDC or 24VDC power supply.

Can the TLM100 and TLM200 be Used with Access Control Systems?

Yes. They are fully compatible with access control systems, door entry systems, electric locks, magnetic locks (maglocks), automatic gates, barriers, and other electronic security equipment.
