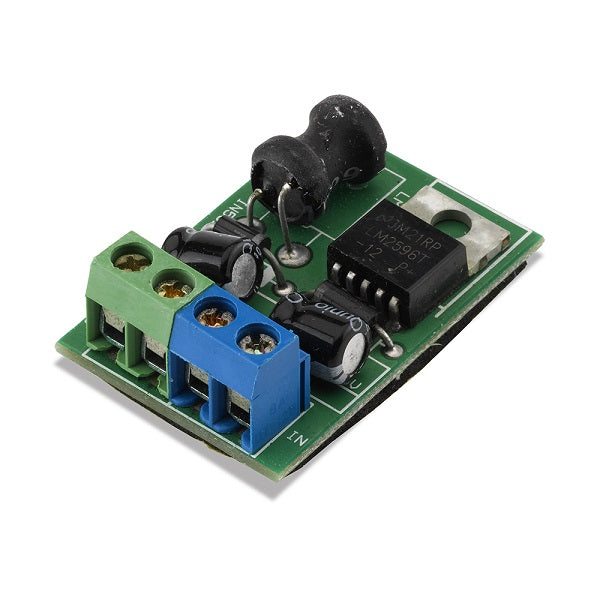

SM1228 Voltage Converter Module (24VDC to 12VDC)

The SM1228 Voltage Converter Module is a compact voltage reduction module designed to convert a 24VDC input to a regulated 12VDC output. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, it provides a simple and reliable solution for powering 12VDC devices from a 24VDC power source.

Designed with a compact footprint, the SM1228 is ideal for installations where mixed-voltage equipment is used. By reducing a 24VDC supply to 12VDC, the module allows compatible access control devices, intercoms, readers, relays, and other electronic security equipment to operate from a common 24VDC power supply.

Its small size makes it easy to install inside control panels, junction boxes, and equipment enclosures where installation space is limited.

Available Models

• SM1228 – 24VDC to 12VDC Voltage Converter Module

Key Features

• Voltage Converter Module
• Converts 24VDC to 12VDC
• 24VDC Input Voltage
• Regulated 12VDC Output
• 300mA Output Current
• Compact Installation Design
• Reliable Voltage Reduction
• Suitable for Access Control Systems
• Easy to Install
• Suitable for New Installations and Retrofits

Typical Applications

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Relay Modules
• Electronic Security Equipment
• Control Panels
• Low Voltage Installations
• Retrofit Installations

Compatibility

The SM1228 Voltage Converter Module is designed for use with a wide range of 12VDC electronic security and access control equipment powered from a 24VDC supply.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Access Control Keypads
• Proximity Card Readers
• Relay Modules
• Timer Controllers
• Electronic Locks
• Control Panels
• Security Accessories

Technical Specification

• Product Type: Voltage Converter Module
• Function: Voltage Reduction (24VDC to 12VDC)
• Input Voltage: 24VDC
• Output Voltage: 12VDC
• Output Current: 300mA
• Dimensions: 39mm × 27mm × 15mm (H × W × D)

SM1228 Product Information

The SM1228 Voltage Converter Module provides a simple and reliable method of reducing a 24VDC power supply to a regulated 12VDC output. Its compact design makes it ideal for powering compatible 12VDC access control and electronic security equipment from an existing 24VDC installation.

Frequently Asked Questions

What Does the SM1228 Do?

The SM1228 converts a 24VDC input into a regulated 12VDC output, allowing 12VDC equipment to operate from a 24VDC power supply.

What is the Maximum Output Current?

The module provides a regulated 12VDC output at up to 300mA.

What Applications is the SM1228 Suitable For?

It is suitable for access control systems, intercoms, proximity readers, keypads, relay modules, and other compatible 12VDC electronic security equipment.

Can the SM1228 be Installed Inside a Control Panel?

Yes. Its compact size makes it ideal for installation inside control panels, equipment enclosures, and junction boxes.

Is the SM1228 Suitable for Retrofit Installations?

Yes. It provides a simple solution when adding 12VDC devices to an existing 24VDC system without replacing the power supply.
