SL500 / FR-SL500 Micro Shear Lock (Maglock)
The SL500 and FR-SL500 Micro Shear Locks are high-security electromagnetic locking solutions designed for use with access control systems, door entry systems, intercoms, and electronic security installations. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide exceptional holding force whilst maintaining a compact and discreet installation profile.
A magnetic shear lock combines the holding strength of an electromagnetic lock with a mechanical shear locking mechanism that provides enhanced resistance to forced entry. When the door closes, the armature aligns with the lock body and is secured through both magnetic attraction and mechanical shear resistance, delivering significantly higher holding force than many conventional magnetic locks.
Operating from 12VDC or 24VDC power supplies, the SL500 series provides an impressive holding force of up to 2,600lbs (1,200kg) in shear. The lock features an adjustable locking delay from 0.5 to 25 seconds, allowing sufficient time for the armature plate to align correctly before the shear mechanism fully engages. The lock also incorporates COM, NO, and NC monitoring contacts for integration with access control and monitoring systems.
The FR-SL500 is independently fire tested to BS EN1634-1 and is approved for installation on FD30 and FD60 fire doors when installed with the supplied intumescent pack.
Available Models
- SL500 – Micro Shear Lock

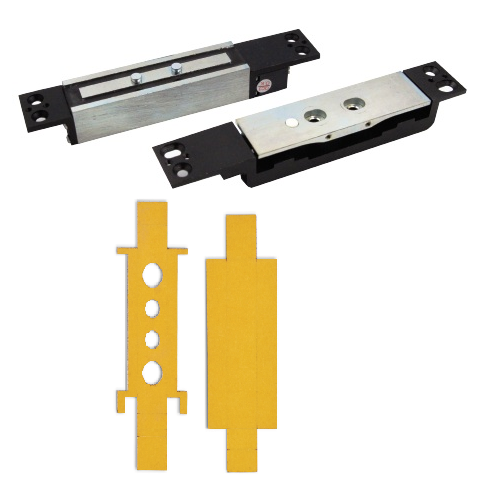

- FR-SL500 – Fire Rated Micro Shear Lock (Supplied with Intumescent Pack)
Key Features
- Micro Shear Lock (Maglock)
- Holding Force up to 2,600lbs (1,200kg) in Shear
- Operating Voltage 12VDC or 24VDC
- Adjustable Locking Delay (0.5–25 Seconds)
- COM / NO / NC Monitoring Contacts
- Compact Installation Profile
- High Security Locking Solution
- Fire Rated Version Available
- BS EN1634-1 Tested (FR-SL500)
- FD30 & FD60 Fire Door Approved (FR-SL500)
- Suitable for Access Control Systems
- Suitable for New Installations and Retrofits
Typical Applications
- Access Control Doors
- Commercial Buildings
- Office Entrances
- Healthcare Facilities
- Educational Facilities
- Government Buildings
- Restricted Access Areas
- High Security Doors
- Fire Door Installations (FR-SL500)
- Internal Security Doors
Compatibility
The SL500 and FR-SL500 Micro Shear Locks are designed to integrate with a wide range of access control and electronic security equipment.
- Access Control Systems
- Electric Locks
- Magnetic Locks (Maglocks)
- Door Entry Systems
- Intercom Systems
- Keypad Entry Systems
- Proximity Readers
- Press to Exit Buttons
- Relays and Timers
- Door Monitoring Systems
Technical Specification
- Product Type: Micro Shear Lock (Maglock)
- Operating Voltage: 12VDC or 24VDC
- Holding Force: Up to 2,600lbs (1,200kg) in Shear
- Locking Delay: Adjustable 0.5 to 25 Seconds
- Monitoring Contacts: COM / NO / NC
- Fire Rating: BS EN1634-1 (FR-SL500 Only)
- Fire Door Approval: FD30 & FD60 (FR-SL500 Only)
- Dimensions: 182mm × 30mm × 25mm (H × W × D)
The SL500 and FR-SL500 Micro Shear Locks provide powerful and discreet locking solutions for access control installations requiring exceptional security. Featuring up to 2,600lbs holding force in shear, adjustable locking delay, monitoring contacts, and compatibility with a wide range of access control equipment, they are ideal for commercial and high-security applications. The FR-SL500 additionally provides certified fire door compatibility for FD30 and FD60 fire doors.
Frequently Asked Questions
What is a Micro Shear Lock?
A micro shear lock combines electromagnetic holding force with a mechanical shear locking action, providing enhanced security and significantly higher resistance to forced entry than standard magnetic locks.
What is the Difference Between the SL500 and FR-SL500?
Both models share the same dimensions, holding force, operating voltage, and locking performance. The FR-SL500 has been fire tested to BS EN1634-1 and is approved for installation on FD30 and FD60 fire doors when installed with the supplied intumescent pack.
What Holding Force Does the SL500 Provide?
The SL500 series provides up to 2,600lbs (1,200kg) of holding force in shear.
Why Does the Lock Have an Adjustable Locking Delay?
The adjustable delay allows the door and armature plate to align correctly before the lock fully engages, ensuring reliable and consistent operation.
What are the COM, NO and NC Contacts Used For?
The monitoring contacts provide lock status feedback for compatible access control and monitoring systems.
Can the SL500 Series be Used with Access Control Systems?
Yes. The SL500 series is fully compatible with access control systems, door entry systems, intercoms, keypads, card readers, emergency release devices, and other electronic security equipment.
