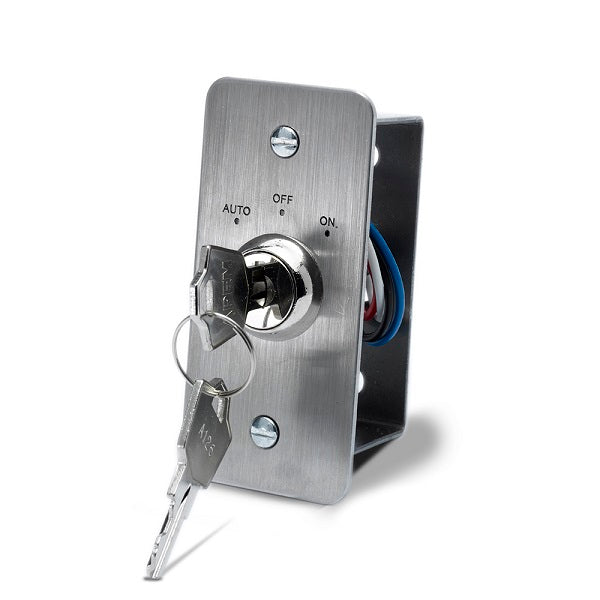

KS001N-3POS Maintained Narrow Key Switch

The KS001N-3POS Narrow Key Switch is a compact 3-position access control switch designed for secure manual operation in door control and automation systems. It is suitable for installations where multiple maintained switching states are required within a narrow faceplate format.

The unit features a brushed stainless steel finish and supports both flush mount and surface mount installation (with surface surround option). It is built with a 2-pole maintained action mechanism and provides reliable COM, NO, and NC switching for integration into access control and security systems.

Available Models

• KS001N-3POS – Narrow Key Switch (2 Pole, 3 Position, Maintained)

Key Features

• Narrow brushed stainless steel faceplate
• 3 position key switch
• 2 pole switching
• Maintained action
• COM / NO / NC contacts

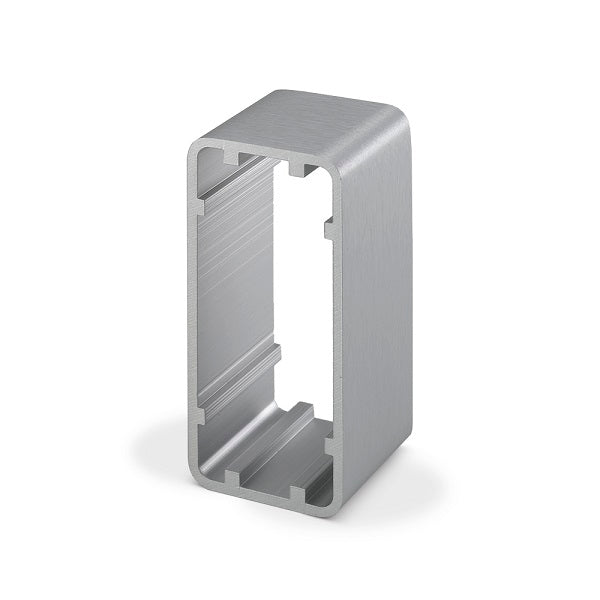

• Flush or surface mount (with surround option)
• Suitable for access control systems
• Durable mechanical construction
• Compact design for restricted space installations
• Professional finish for security environments

Typical Applications

• Access control systems
• Door entry systems
• Electric lock control
• Gate automation systems
• Roller shutters
• Security systems
• Industrial control panels
• Commercial buildings
• Residential access points
• Restricted area control

Compatibility

The KS001N-3POS Narrow Key Switch is designed to integrate with a wide range of access control and automation equipment.

• Access Control Systems
• Electric Strike Locks
• Magnetic Locks (Maglocks)
• Door controllers
• Gate automation systems
• Roller shutters and barriers
• Intercom systems
• Security control panels
• Press to Exit Buttons
• Emergency Door Release Systems
• Building management systems
• 12–24V control circuits


Technical Specification

• Product Type: Narrow Key Switch
• Pole Configuration: 2 Pole
• Operation: Maintained
• Positions: 3 Position
• Contacts: COM / NO / NC
• Faceplate Material: Brushed stainless steel
• Mounting: Flush mount or surface mount (with surround option)
• Dimensions: 85mm x 38mm (H x W)

KS001N-3POS Key Switch Product Information

The KS001N-3POS Narrow Key Switch provides a compact multi-position keyed control solution for access control applications. With 3 position maintained operation, durable stainless steel construction, and flexible mounting options, it is suitable for professional installations requiring reliable multi-state switching control.

Frequently Asked Questions

What is a 3 position key switch?

A 3 position key switch allows the user to select between three maintained switch states using a key.

What does maintained action mean?

Maintained action means the switch stays in the selected position until the key is turned again.

Can it be flush or surface mounted?

Yes. It supports both flush mounting and surface mounting with the surround option.

What contacts does it use?

It uses COM, NO, and NC contacts for flexible wiring configurations.

Is it suitable for access control systems?

Yes. It is designed for integration with a wide range of access control and automation systems.
