ICS EDS Enforcer A10002 Emergency Door System

The ICS EDS Enforcer A10002 Emergency Door System is a fully compliant emergency egress solution designed to provide safe, secure, and controlled emergency exit operation in commercial, industrial, educational, healthcare, and public sector buildings. Independently tested to EN13637, it delivers reliable emergency door release functionality whilst maintaining secure access control.

Designed for use with emergency exit doors secured by electromagnetic locks, the EDS Enforcer A10002 provides a complete emergency door control system that meets modern life safety requirements. The system incorporates visual indication, audible alarm functions, programmable release delays, and integration with fire alarm and access control systems.

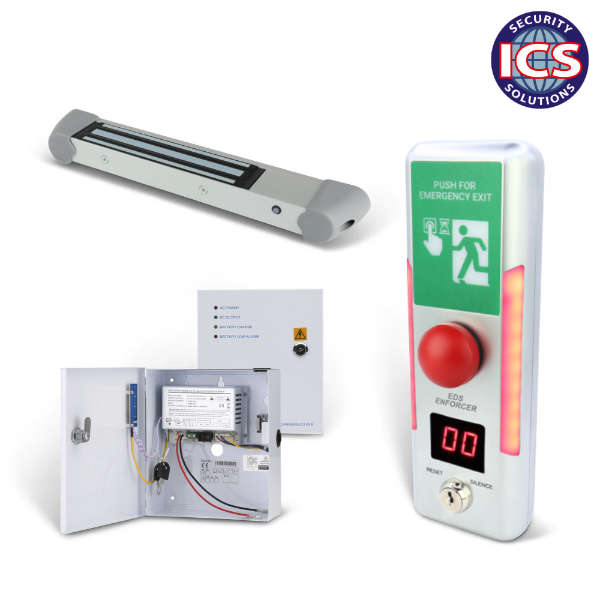

Supplied as a complete kit including a monitored mini magnetic lock and boxed power supply, the ICS EDS Enforcer A10002 offers a straightforward solution for emergency door management and compliance.

Available Models

• ICS EDS Enforcer A10002 – Emergency Door System with a Single Monitored Magnetic Lock

Key Features

• EN13637 compliant emergency door system
• Independently tested to EN13637
• Operating voltage 12VDC to 24VDC
• Die-cast metal housing
• Change-over relay output
• Adjustable release delay
• Delay settings of 0, 5, 10, 30 or 60 Seconds
• Built-in audible alarm
• Fire alarm input
• Access control input
• LED status indication
• Complete emergency door solution supplied as a kit

What's Included

• 1 x Emergency Door System Controller
• 1 x Monitored Mini Magnetic Lock (A10002)
• 2 x Safety End Caps for Mini Magnet
• 1 x 12VDC 5A Boxed Power Supply

Typical Applications

• Emergency exit doors
• Commercial buildings
• Office buildings
• Schools and universities
• Healthcare facilities
• Public buildings
• Warehouses
• Industrial facilities
• Secure escape routes
• Access-controlled emergency exits

Compatibility

The ICS EDS Enforcer A10002 is designed to integrate with a wide range of door security and life safety equipment.

• Electromagnetic locks
• Access control systems
• Fire alarm systems
• Emergency exit systems
• Door monitoring systems
• Building management systems
• Door entry systems
• Emergency release devices
• Power Supplies
• Security control systems

Technical Specification

• Product Type: Emergency Door System
• Operating Voltage: 12VDC to 24VDC
• Housing Material: Die-Cast Metal
• Relay Output: Change-Over Relay
• Release Delay Settings: 0, 5, 10, 30 or 60 Seconds
• Audible Alarm: Yes
• Compliance: Independently Tested to EN13637
• Fire Alarm Input: Yes
• Access Control Input: Yes
• LED Indicators:
  • Red: Locked
  • Yellow (Flashing): Timer Activated
  • Green: Door Unlocked

ICS EDS Enforcer A10002 Product Information

The ICS EDS Enforcer A10002 Emergency Door System provides a complete and compliant solution for emergency exit control. Featuring EN13637 compliance, programmable release delays, visual and audible status indication, and integration with fire alarm and access control systems, it is an ideal choice for buildings requiring secure and safe emergency egress management.

Frequently Asked Questions

What is the ICS EDS Enforcer A10002 used for?

The EDS Enforcer is an emergency door control system designed to provide safe and compliant emergency egress through doors secured by magnetic locking systems.

Is the EDS Enforcer A10002 compliant with EN13637?

Yes. The system has been independently tested to EN13637, ensuring compliance with emergency escape route requirements.

What is included with the system?

The kit includes the emergency door controller, a monitored mini magnetic lock, safety end caps, and a 12VDC 5A boxed power supply.

Can the EDS Enforcer connect to a fire alarm system?

Yes. The system includes a dedicated fire alarm input for integration with fire detection and life safety systems.

Can the EDS Enforcer connect to an access control system?

Yes. An access control input is provided, allowing integration with existing access control installations.

What delay options are available?

The emergency release timer can be configured for delays of 0, 5, 10, or 15 seconds.

What do the LED indicators show?

The system provides clear status indication:

• Red indicates the door is locked.
• Flashing yellow indicates the release timer is active.
• Green indicates the door is unlocked.

Does the system include an audible alarm?

Yes. The EDS Enforcer incorporates an audible alarm to provide additional indication during emergency door operation.
