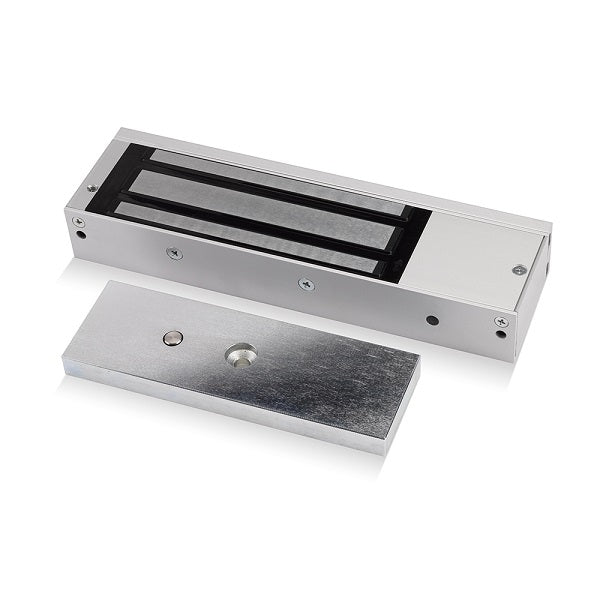

A10010 / A10010DS / FR-A10010 / FR-A10010DS  Unmonitored Standard Magnetic Lock (Maglock)

The A10010 Series Standard Magnetic Locks (Maglocks) are high-performance electromagnetic locking solutions designed for use with access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide secure and reliable locking for access-controlled doors.

Operating from selectable 12VDC or 24VDC power supplies, the A10010 Series delivers up to 1200lbs (544kg) of holding force, making it suitable for applications requiring enhanced door security and dependable locking performance. Manufactured with a durable aluminium housing and electroless nickel plated armature plate, these magnetic locks are designed for long-term reliability and continuous operation.

Selected models are available with integrated door status indication, while the FR-A10010 and FR-A10010DS versions have been fire tested to BS EN 1634-1 and are suitable for installation on FD30 and FD60 fire doors.

Available Models

• A10010 – Unmonitored Standard Magnetic Lock
• A10010DS – Standard Magnetic Lock with Door Status LED
• FR-A10010 – Fire Rated Standard Magnetic Lock
• FR-A10010DS – Fire Rated Standard Magnetic Lock with Door Status LED

Key Features

• Standard Magnetic Lock Design
• Up to 1200lbs (544kg) Holding Force
• Selectable 12VDC or 24VDC Operation
• Fail Safe Operation (Power to Lock)
• Aluminium Lock Housing
• Electroless Nickel Plated Armature Plate
• Available with Door Status LED
• Fire Rated Versions Available
• Tested to BS EN 1634-1
• Suitable for FD30 and FD60 Fire Doors
• Suitable for Access Control Applications
• Reliable Electromagnetic Locking

Typical Applications

• Access Control Doors
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Premises
• Public Buildings
• Restricted Access Areas
• Staff Access Doors
• Fire Door Installations
• Internal Security Doors

Compatibility

The A10010 Series Standard Magnetic Locks are designed to integrate with a wide range of access control and door security equipment, making them suitable for both new installations and retrofit projects.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Emergency Door Release Units
• Power Supplies
• Relays and Timers
• Door Monitoring Systems

Technical Specification

• Lock Type: Standard Magnetic Lock (Maglock)
• Operation: Fail Safe (Power to Lock)
• Operating Voltage: 12VDC or 24VDC Selectable
• Holding Force: Up to 1200lbs (544kg)
• Status Indication: Door Status LED (A10010DS & FR-A10010DS)
• Housing Material: Aluminium
• Armature Plate: Electroless Nickel Plated Steel
• Fire Rating: BS EN 1634-1 (FR Models)
• Suitable Fire Doors: FD30 & FD60 (FR Models)
• Dimensions: 67mm x 268mm x 40mm (H x W x D)

A10010 / A10010DS Product Information

FR-A10010 / FR-A10010DS Product Information

The A10010 Series Standard Magnetic Locks provide a secure and reliable locking solution for access control installations requiring high holding force and dependable door security. Available in standard, monitored, and fire-rated versions, they are ideal for commercial, industrial, and public sector applications where a durable magnetic lock or maglock is required.
