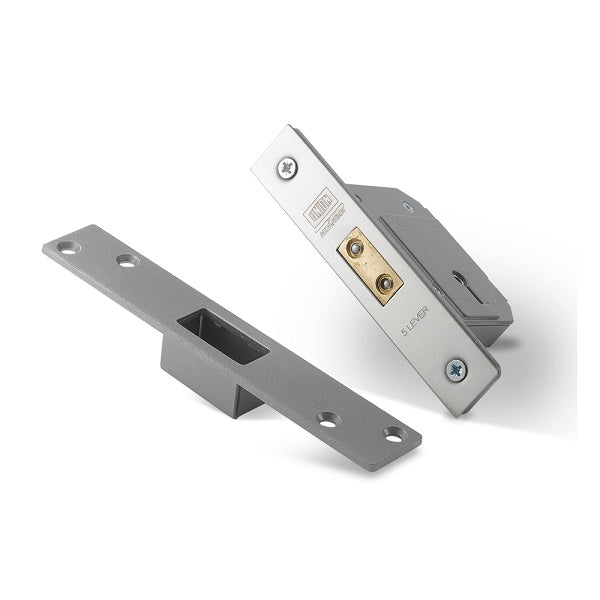

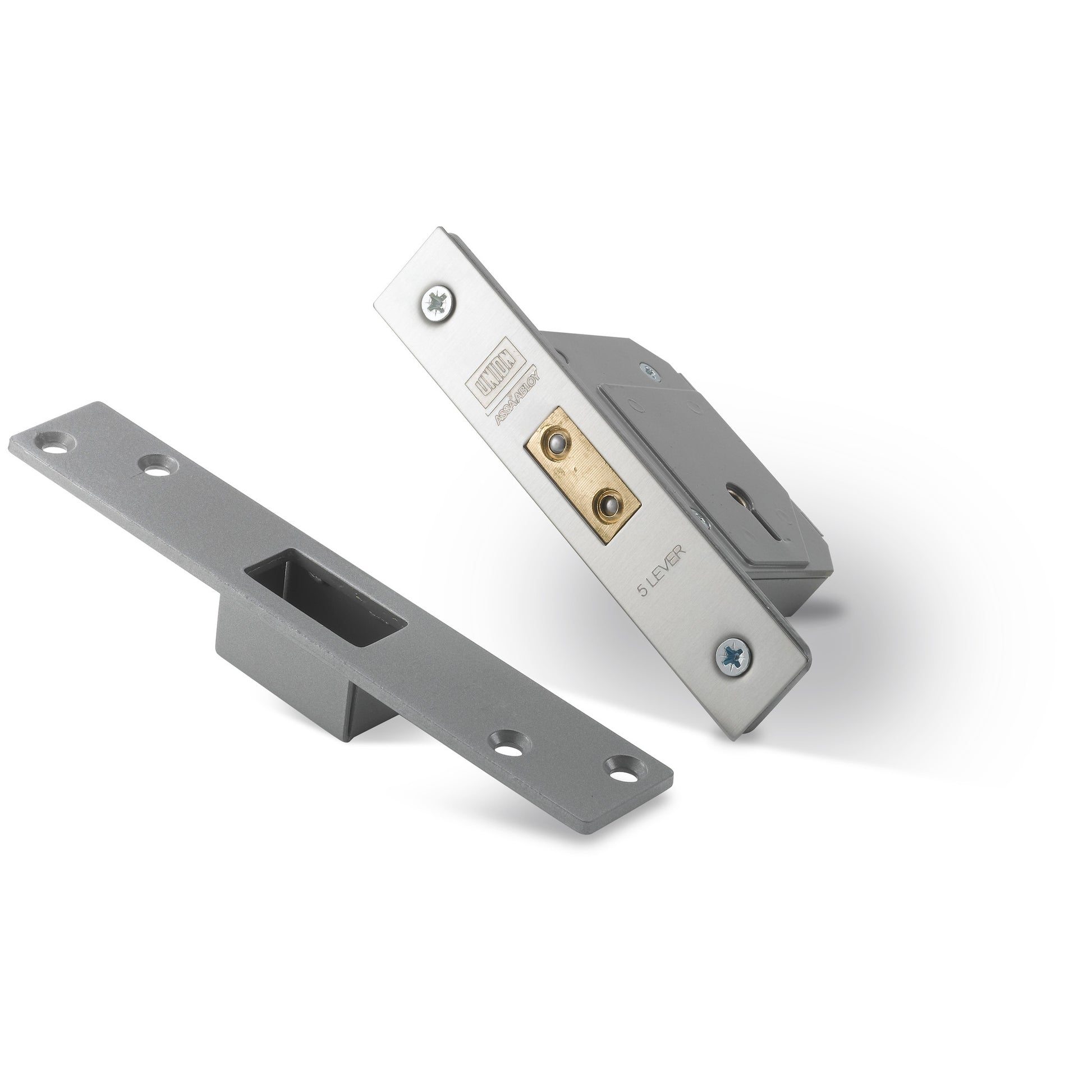

3G114 5 Lever Microswitch Deadlock

The 3G114 5 Lever Microswitch Deadlock is a high-security mortice deadlock designed for use with access control systems, intruder alarm systems, and security door applications. Suitable for commercial, industrial, educational, healthcare, and public sector environments, it provides secure mechanical locking with integrated lock status monitoring.

Featuring a 5 lever locking mechanism, the 3G114 offers reliable key-operated security for doors requiring controlled access and enhanced monitoring capabilities. An integrated microswitch allows the lock to interface with access control systems, intruder alarms, monitoring equipment, and building management systems, providing lock status indication and improved system integration.

Available with either a single pole or double pole microswitch configuration, the 3G114 is suitable for a wide range of security applications where both physical security and lock monitoring are required.

Available Models

• 3G114-SP – 5 Lever Deadlock with Single Pole Microswitch
• 3G114-DP – 5 Lever Deadlock with Double Pole Microswitch

Key Features

• 5 Lever Mortice Deadlock
• Integrated Microswitch Monitoring
• Available with Single Pole or Double Pole Microswitch
• Lock Status Signalling Capability
• Suitable for Access Control Systems
• Suitable for Intruder Alarm Systems
• Reliable Mechanical Locking
• Robust Mortice Lock Design
• Suitable for Commercial and Industrial Applications
• Available Made to Order

Typical Applications

• Access Control Doors
• Intruder Alarm Systems
• Commercial Buildings
• Industrial Premises
• Schools and Educational Facilities
• Healthcare Facilities
• Restricted Access Areas
• Secure Plant Rooms
• Staff Access Doors
• Internal Security Doors

Compatibility

The 3G114 5 Lever Microswitch Deadlock is designed to integrate with a wide range of security and monitoring equipment, making it suitable for both new installations and retrofit projects.

• Access Control Systems
• Intruder Alarm Systems
• Door Monitoring Systems
• Building Management Systems
• Security Monitoring Equipment
• Alarm Monitoring Systems
• Access Control Panels
• Relays and Timers
• Security Door Applications

Technical Specification

• Lock Type: 5 Lever Mortice Deadlock
• Monitoring: Integrated Microswitch
• Single Pole Microswitch: NO / NC / COM
• Double Pole Microswitch: 2 x NO / 2 x NC / 2 x COM
• Dimensions: 117mm x 25mm x 67mm (H x W x D)

Important Information

Please Note: These locks are manufactured to order and may require additional 2-3 working days before dispatch.

3G114 Product Datasheet

The 3G114 5 Lever Microswitch Deadlock provides a secure and reliable locking solution for applications requiring both high-security mechanical key operation and lock status monitoring. Suitable for access control systems, intruder alarm installations, commercial buildings, and industrial security applications, it is an ideal choice where a durable monitored mortice deadlock is required.

Frequently Asked Questions

What is a microswitch deadlock?

A microswitch deadlock is a mortice deadlock that incorporates an electrical microswitch to provide lock status signalling. This allows the lock to be connected to access control systems, intruder alarms, and monitoring equipment for enhanced security management.

What does the microswitch monitor?

The integrated microswitch provides lock status information, allowing connected systems to determine the position of the lock mechanism. This can be used for monitoring, alarm integration, and security system reporting.

What is the difference between the single pole and double pole versions?

The 3G114-SP features a single pole microswitch with NO, NC, and COM contacts. The 3G114-DP features a double pole microswitch with two sets of NO, NC, and COM contacts, providing greater flexibility when interfacing with multiple systems or control devices.

Can the 3G114 be used with access control systems?

Yes. The 3G114 is designed for integration with access control systems and can provide lock status information to compatible controllers, monitoring equipment, and security systems.

Can the 3G114 be connected to an intruder alarm system?

Yes. The integrated microswitch can be connected to compatible intruder alarm systems, allowing the lock status to be monitored and used as part of a wider security solution.

What is a 5 lever deadlock?

A 5 lever deadlock is a high-security mortice lock that uses five internal levers to provide increased resistance against picking and manipulation compared to lower-security lock designs.

Where is the 3G114 commonly installed?

The 3G114 is commonly installed on access control doors, secure plant rooms, staff access doors, commercial premises, industrial buildings, schools, healthcare facilities, and other areas requiring both physical security and lock monitoring.

Is the 3G114 suitable for new and retrofit installations?

Yes. The 3G114 can be used for both new installations and retrofit projects where a monitored mortice deadlock is required for integration with access control, alarm, or building management systems.
