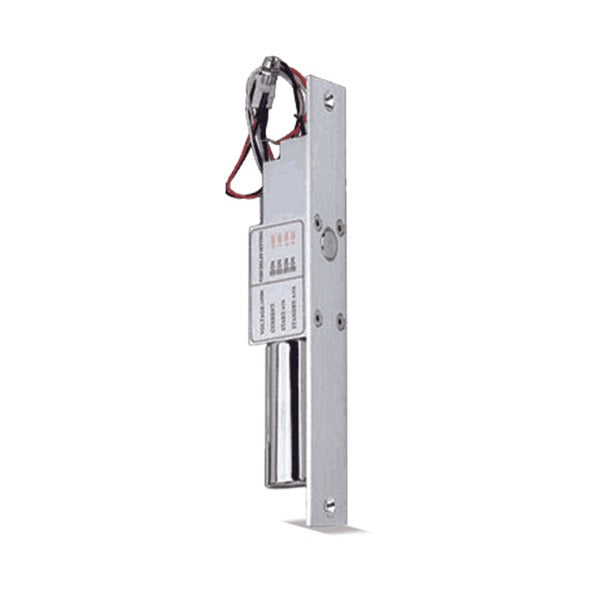

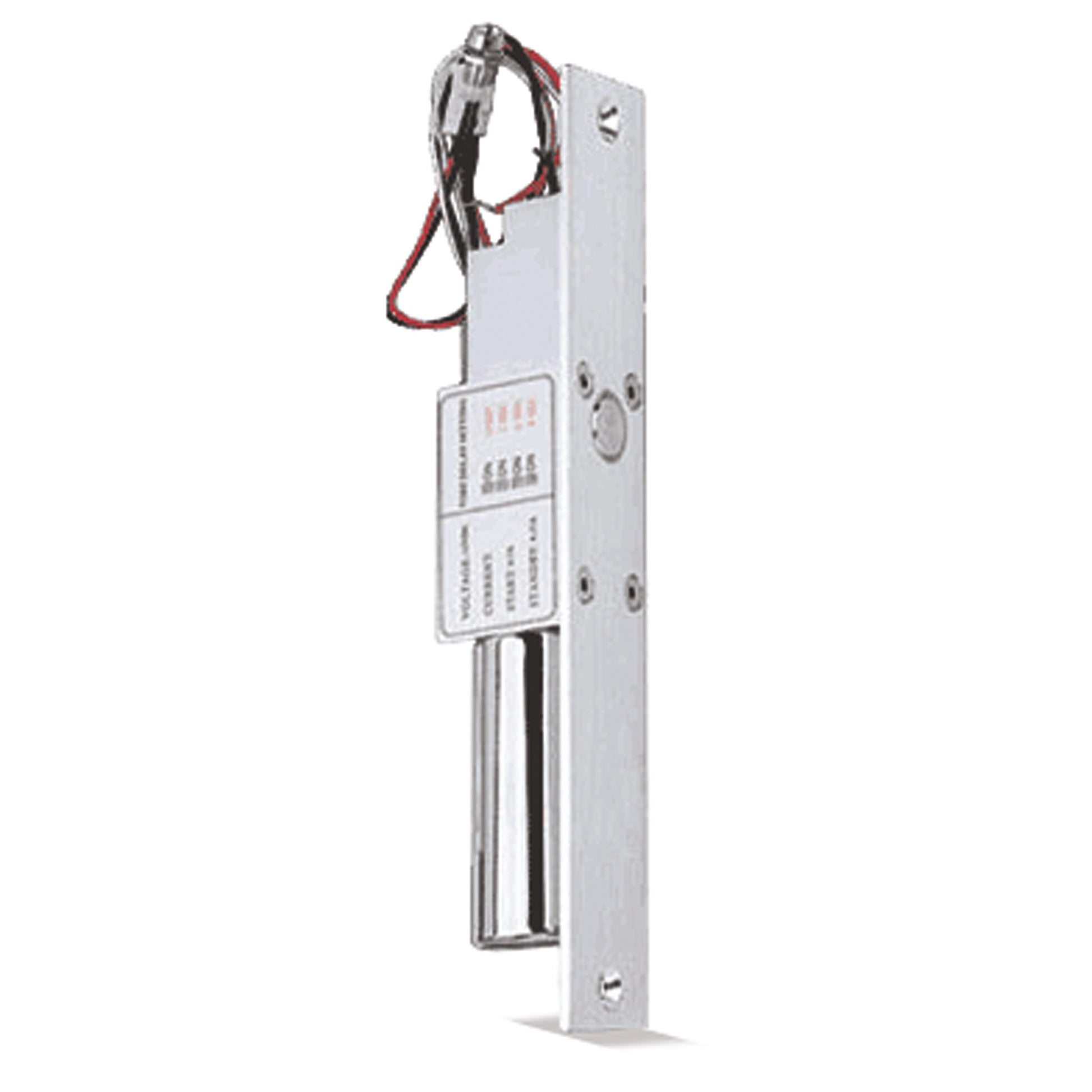

10412 Solenoid Electric Bolt Lock

The 10412 Solenoid Electric Bolt Lock, also commonly referred to as a drop bolt lock, is a high-security electromechanical locking solution designed for use with access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, and public sector environments, it provides secure locking for doors requiring a strong and reliable access control solution.

Featuring a fail-safe operating mode and a holding force of up to 1000kg, the 10412 delivers dependable locking performance while ensuring safe egress during power loss conditions. Its intelligent bolt monitoring system only engages when the door and lock are correctly aligned, helping to prevent damage and improve long-term reliability.

Operating from a 12VDC power supply, the 10412 integrates easily with access control panels, keypads, proximity readers, intercom systems, and door automation equipment. Adjustable auto re-locking delay settings of 0, 3, 6, or 9 seconds provide flexibility for a wide range of installation requirements.

Available Models

• 10412 – 12VDC Fail Safe Solenoid Electric Bolt Lock

Key Features

• Fail Safe Operation (Power to Lock)
• High Security Solenoid Bolt Lock
• Holding Force up to 1000kg
• 12VDC Operating Voltage
• Adjustable Auto Re-Locking Delay
• 0, 3, 6 or 9 Second Timer Settings
• Intelligent Door Alignment Detection
• Suitable for Single and Double Doors
• Designed for Access Control Applications

Typical Applications

• Access Control Doors
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Premises
• Industrial Buildings
• Restricted Access Areas
• Glass Door Systems
• Timber Doors
• Metal Doors
• Double Door Installations

Compatibility and Accessories

The 10412 Solenoid Electric Bolt Lock is designed to integrate with a wide range of access control and door security equipment, making it suitable for both new installations and retrofit projects.

This electric release is commonly used with access control systems, door entry intercoms, keypads, proximity readers, press to exit buttons, timers, relays and power supplies.

When building a complete system, please check the release type, fail-safe or fail-secure operation, voltage, door type, lock case compatibility and installation requirements before ordering.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Power Supplies, Relays and Timers
• Emergency Door Release Units

Technical Specification

• Operating Voltage: 12VDC
• Lock Type: Solenoid Electric Bolt Lock
• Operation: Fail Safe (Power to Lock)
• Holding Force: Up to 1000kg
• Auto Re-Locking Delay: 0, 3, 6 or 9 Seconds
• Lock Dimensions: 200mm x 35mm x 38mm
• Keep Dimensions: 100mm x 35mm x 20mm

10412 Solenoid Bolt Lock Product Datasheet

The 10412 Solenoid Electric Bolt Lock provides a secure and reliable locking solution for access control installations requiring high holding force and dependable door security. Suitable for a wide range of commercial and industrial applications, it is an ideal choice where a durable electric bolt lock, drop bolt lock, solenoid bolt lock, or access control locking solution is required.
